Scarifiers / Aerators
>
Scarifiers
>
Petrol
>
UV 32 B
>
Chassis

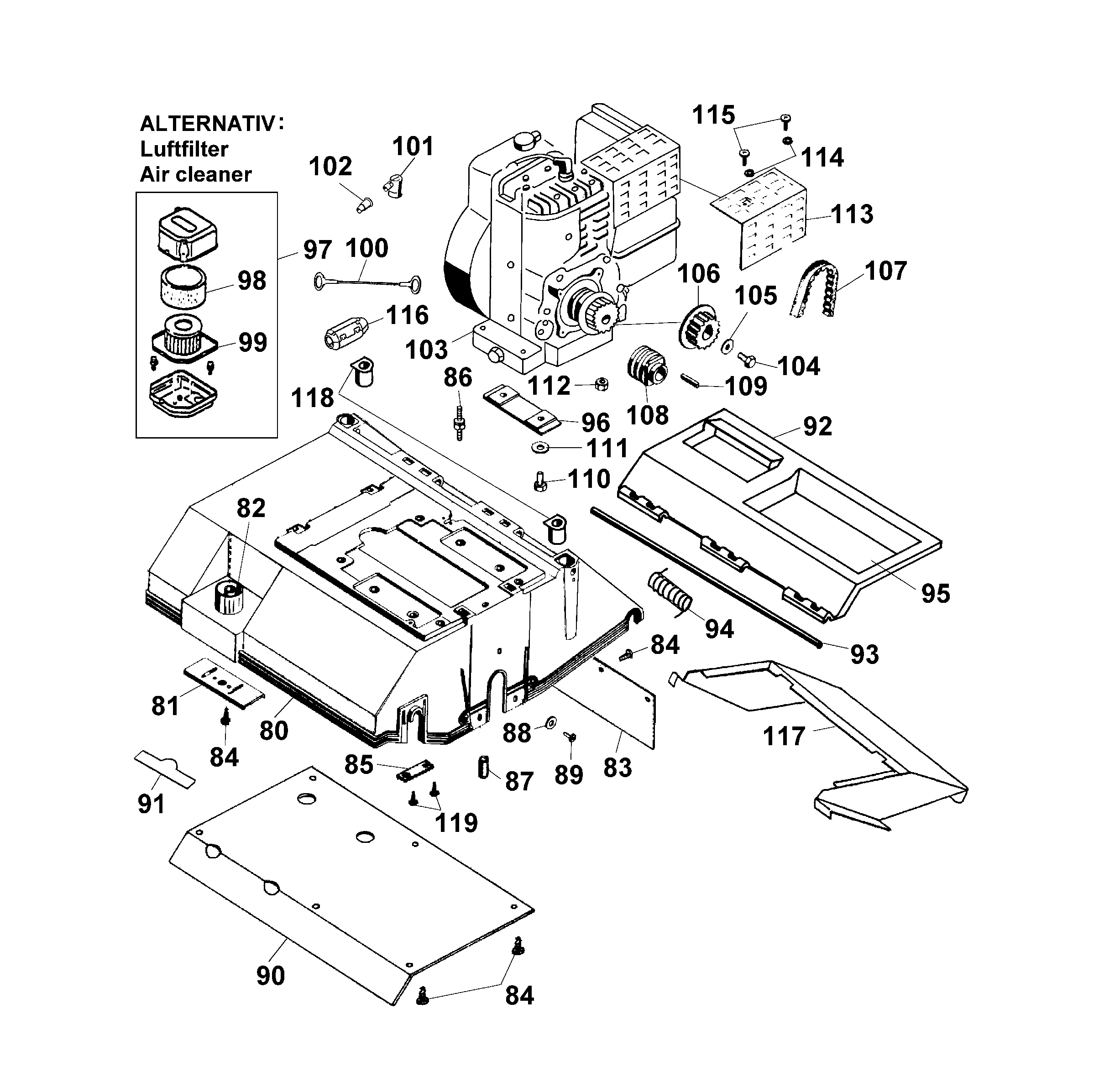

Lista de repuestos para Wolf Scarifiers / Aerators Chassis
pos.
descripción
Número de pieza
80
Chassis
3568 320
81
Reinforcing
3568 010
82
Handwheel
3568 011
83
Rupper Sheet
3568 206
84
Screw
0012 880
85
Clip
3568 505
86
Threaded Pin
3586 016
87
Insulator
3568 209
88
Washer
0017 289
89
Screw
0012 874
90
Guard-Flywheel
3568 112
91
Wolf-Garten - Label
0051 145
92
Rear Flap
3568 325
93
Pivot Pin
3568 208
94
Spring
3585 115
95
Safety Label
3586 226
96
Insulator
3588 209
97
Air Cleaner Compl.
2053 051
98
Filter.Pre Cleaner
2053 100
99
Air Cleaner
2053 101
100
Cable
3586 206
101
Spark Plug Socket
1015 300
102
Boot-Spark Plug
1015 301
103
Motor
2055 000
104
Screw
0010 892
105
Washer
3576 209
106
Crowm Gear
3588 511
107
Toothed Belt
0039 005
108
Connector-Fuel
3588 204
109
Feather Key
0028 766
110
Hex. Screw M8X50
0010 392
111
Washer 8,4X30X2,5
0017 099
112
Hex. Nut
0016 312
113
Muffler Guard
3588 212
114
Washer Spring
0017 907
115
Screw
0015 655
116
Ferrite
4933 105
117
Deflector-Muffler
3585 121
118
Bush
3568 107
119
Screw
0012 632
***
Instruction Manual
0054 328
