volver a
>
Scarifiers / Aerators
>
Scarifiers
>
Petrol
>
UV 32 B
>
Axle, Wheels, Rotor

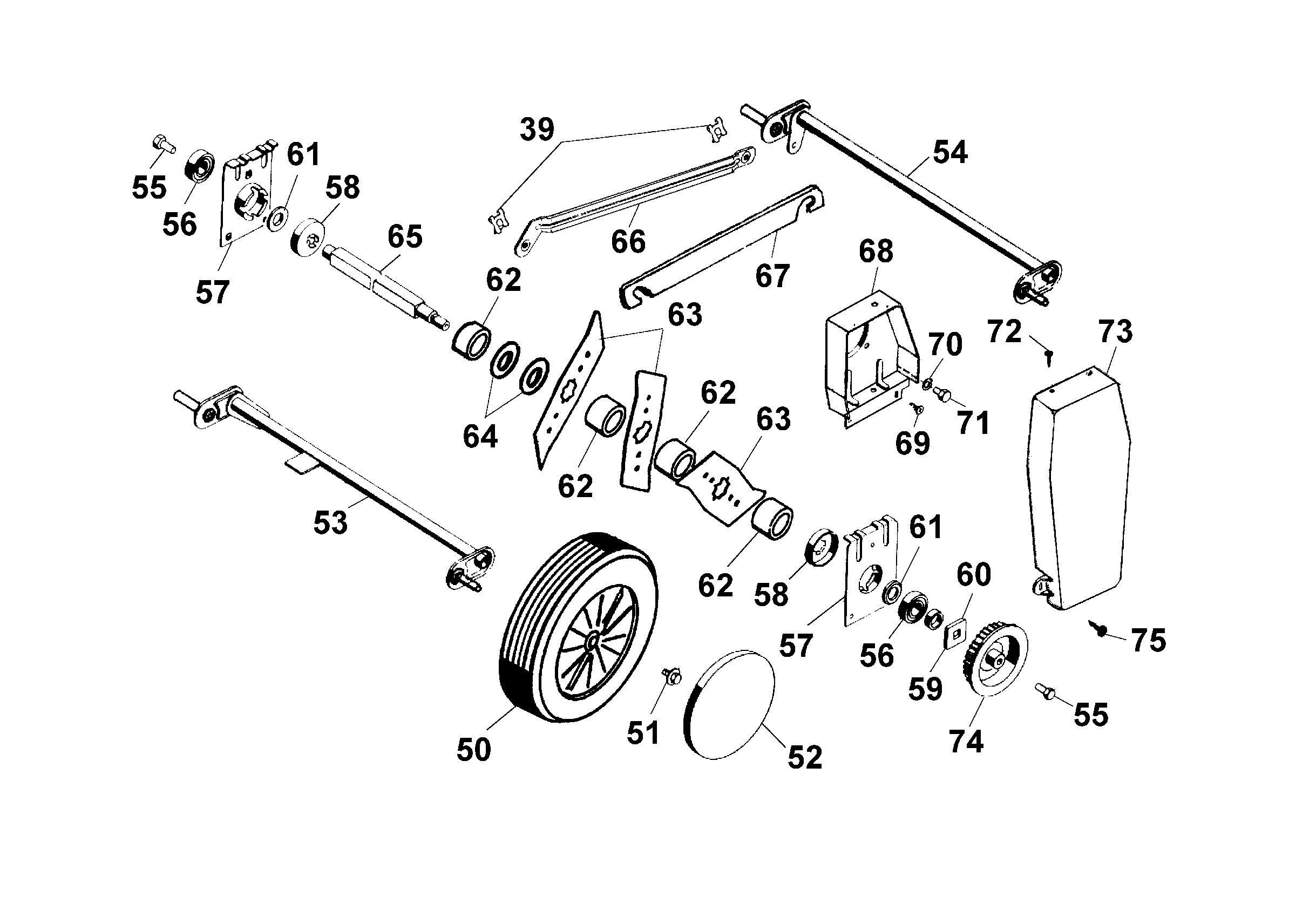

Lista de repuestos para Wolf Scarifiers / Aerators Axle, Wheels, Rotor
pos.
descripción
Número de pieza
39
Retaining Clip
0020 981
50
Wheel, 200 Mm Dia.
4940 041
51
Screw
0010 893
52
Cover ø 200 mm
4961 525
53
Axle Front
3568 063
54
Axle Rear
3568 065
55
Screw
0010 892
56
Bearing
0023 148
57
Bearing Shell
3568 017
58
Cover
3568 509
59
Starter Dog
3576 407
60
Distance Bush
3576 406
61
Ring
3568 512
62
Distance Bush
3585 510
63
Blade
3568 400
64
Belleville Spring Washer
0022 850
65
Shaft
3568 507
66
Rod
3568 131
67
Rod
3568 130
68
Console
3586 111
69
Screw
0012 890
70
Washer Spring
0017 909
71
Hex. Screw M 8X12
0010 384
72
Screw K50X14 1
0012 934
73
Toothed Belt Cover
3568 303
74
Pulley-Camshaft
3576 515
75
Screw
0012 632
