> Roth / TORO > Ride-On Mowers > Traktor > 264 H > 502/72063 > 5900001 > Twin Cylinder Engine, Muffler, and P.T.O.

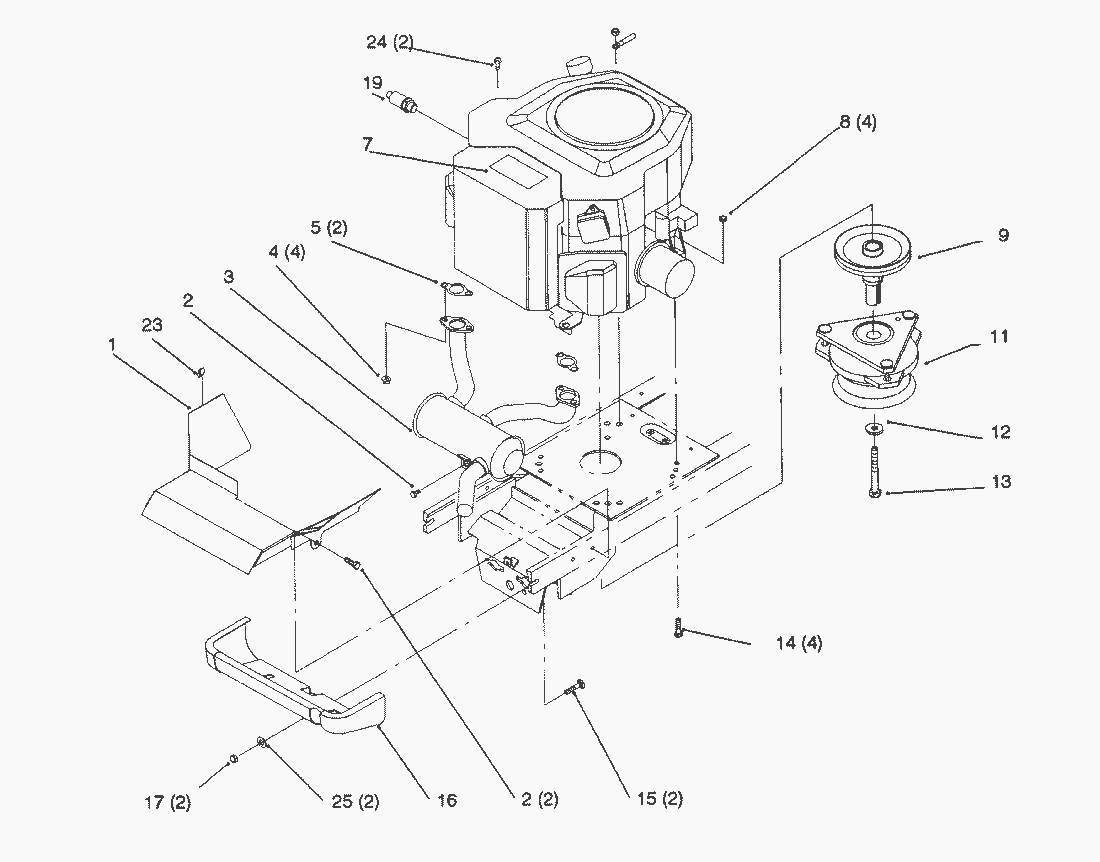

Lista de repuestos para Toro Roth / TORO Twin Cylinder Engine, Muffler, and P.T.O.




Lista de repuestos


pos.descripciónNúmero de pieza
1Baffle-Muffler (Only On: 72103, 72083)92-6879-03
2Screw-HWHTF9266934
3Muffler (Only On: 72103, 72083)92-6861
4Nut-HHF (Only On: 72103,72083)92-6780
5Gasket-Exhaust (Only On: 72103, 72083)93-0350
7Decal-Toro Power Plus 18 (Only On: 72103)93-0535
8MUTTER3296-29
9Pulley (Only On: 72083, 72103)92-6888
11Clutch-PTO (Only On: 72103, 72083)92-6885
12Washer112843
13Screw-Hex. Hd.9114466
14Capscrew322-9
15Carriage Bolt3231-22
16Shield-Muffler (Only On: 72103)92-6867-01
17Locknut3296-39
19Valve-Oil Drain (Only On: 72103, 72083)92-6877
23Clip-Wire Retainer702366
24Screw-PPH (Only On: 72103, 72083)32144-118
25Flat Washer3256-24
