> Roth / TORO > Ride-On Mowers > Traktor > 264 H > 502/72063 > 5900001 > Hydro Control

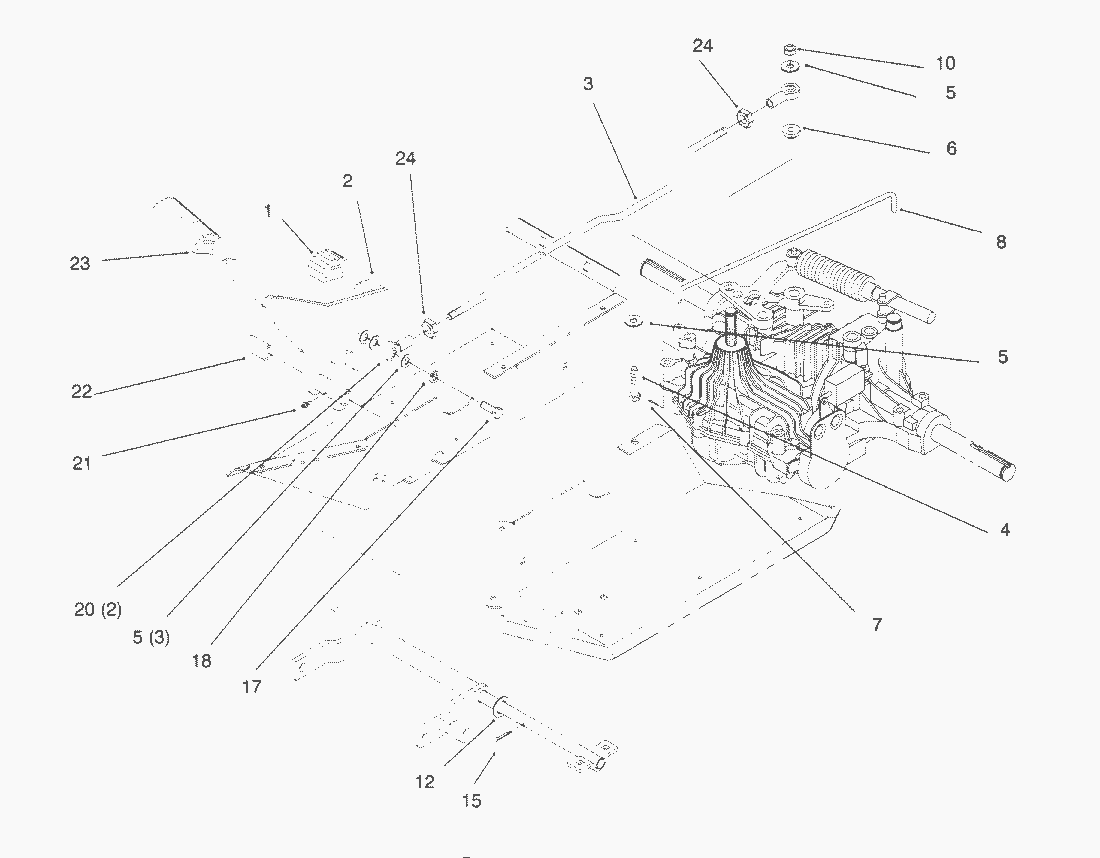

Lista de repuestos para Toro Roth / TORO Hydro Control




Lista de repuestos


pos.descripciónNúmero de pieza
1Pad-Pedal Reverse (Only On: 72043, 72103, 72063, 72083)92-6903
2Pedal-Hydro (Only On: 72043, 72103, 72063, 72083)92-6913-03
3Rod (Only On: 72043, 72103, 72063, 72083)92-7018
4Capscrew323-10
5Flat Washer3256-24
6Bushing (Only On: 72043, 72103, 72063, 72083)92-6962
7Pin-Cotter3272-2
8Rod-Bypass (Only On: 72043, 72103, 72063, 72083)92-6970
10Locknut3296-39
12Washer-Flat (Only On: 72043, 72103, 72063, 72083)9202154
15Pin-Cotter3272-16
17Screw-Cap Hex Hd.323-7
18Washer-Lock (Only On: 72042, 72062)3253-5
20Rod End (Only On: 72043, 72103, 72063, 72083)92-7008
21Fitting-Grease302-26
22Spacer-Hydro Pedal (Only On: 72043, 72103, 72063, 72083)92-6966
23Pad-Pedal Forward (Only On: 72043, 72103, 72063, 72083)92-6902
24Jam Nut3220-3
