> Roth / TORO > Ride-On Mowers > Rider > HMR 1600 > 307/55620 > 9000001 > Transmission & Shift Assy.

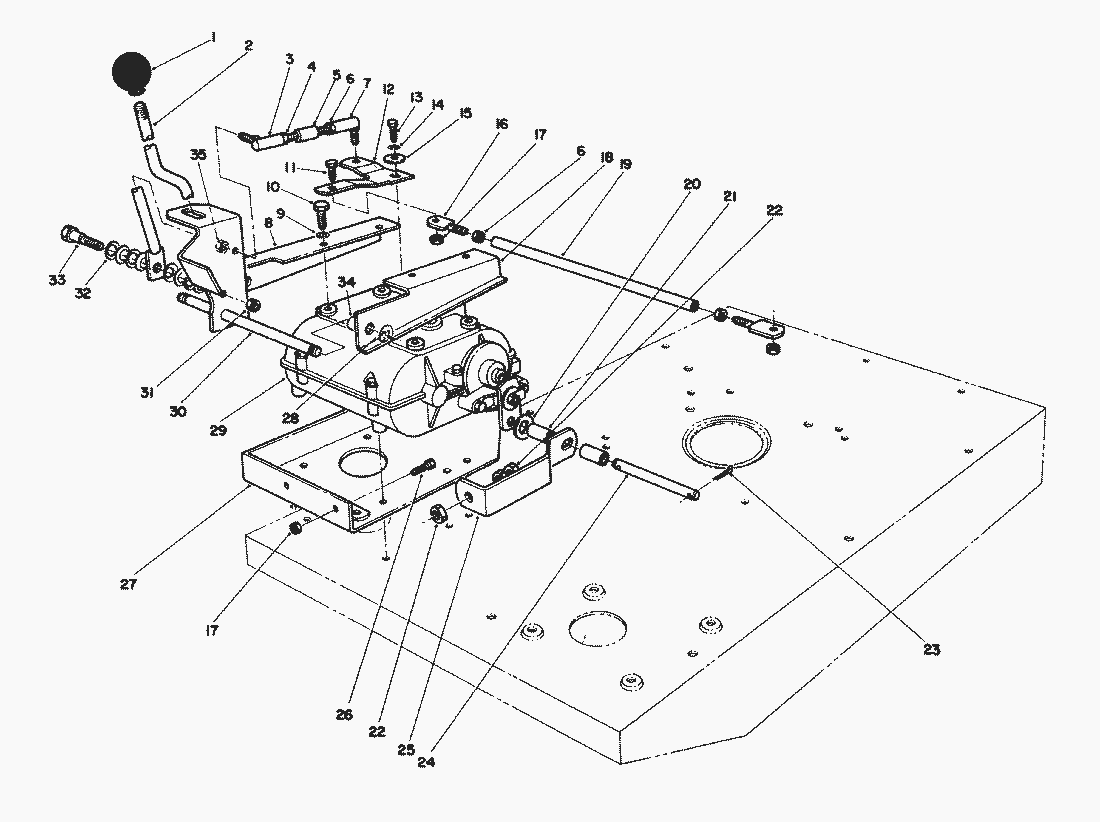

Lista de repuestos para Toro Roth / TORO Transmission & Shift Assy.




pos.descripciónNúmero de pieza
68-3780
Lista de repuestos


pos.descripciónNúmero de pieza
1Knob-Shift Lever233-48
2Lever-Shift68-0750
3Ball Joint Assy-L.H.2411-42
4Hex. Jam Nut3220-20
6Jam Nut3220-2
7Ball Joint Assy2411-32
8Bracket-Shift R.H.68-0680
9Lockwasher3253-4
10Thread Forming Screw32144-11
11Capscrew322-6
12Arm-Shift R.H.68-0670
13Capscrew Hex. Hd.329-23
14Lockwasher3253-3
15Spacer7-5461
16Bearing-Rod End68-3180
17MUTTER3296-29
18Bracket-Shift L.H.68-0690
19Shaft-Shift Link68-0740
20Flat Washer3256-24
21Spacer68-0640
22Hex. Jam Nut3218-4
23Pin-Cotter3272-10
24Pin-Brake Linkage68-0630
25Adjuster-Brake68-0650
26Capscrew322-3
27Pan-Transmission68-0250
28Ring-External Retaining32120-47
29Transmission-R.H.68-0070
30Pivot-Shift68-0700
31Nut-Lock3296-47
32Washer-Belleville3290-413
33Bolt-Shoulder28-0540
34Bushing-Nyliner256-296
35Locknut3296-4
