> Roth / TORO > Hand operated > Lawnmower > 2-stroke SP > 237/22045 > 210000001 > Rear Wheel and Tire Assy. No. 74-1720

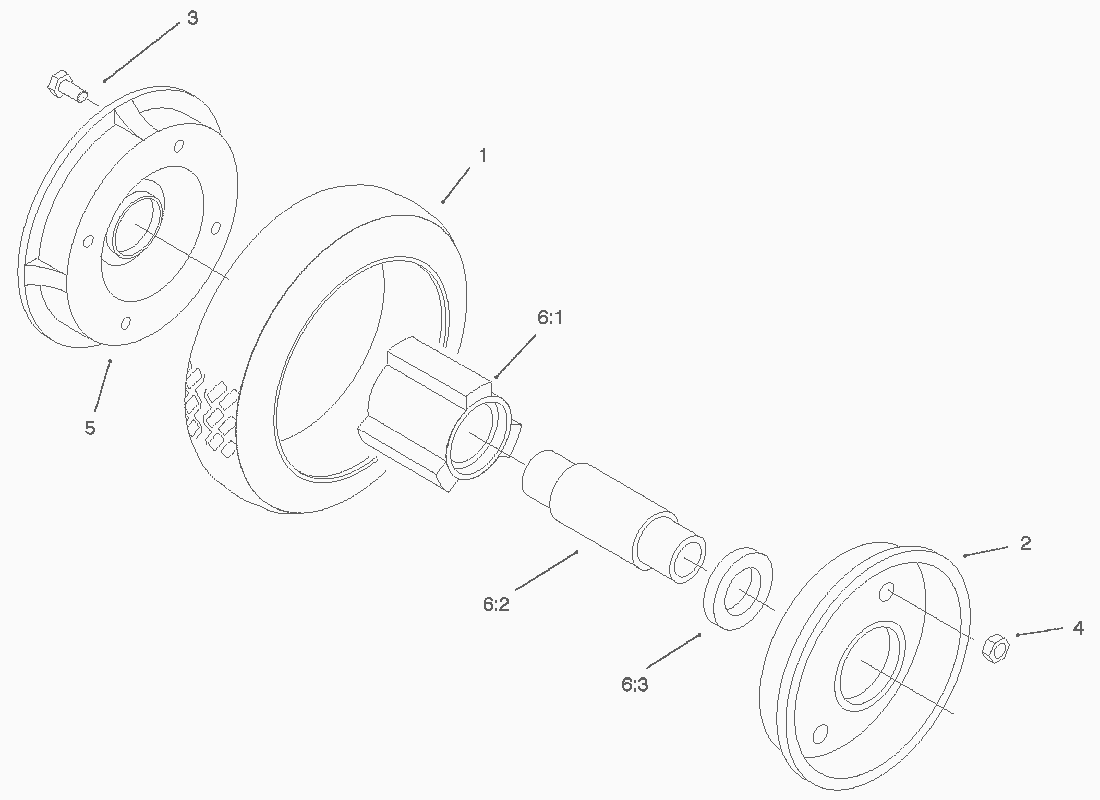

Lista de repuestos para Toro Roth / TORO Rear Wheel and Tire Assy. No. 74-1720




Lista de repuestos


pos.descripciónNúmero de pieza
1Tire53-7740
2Plate-Wheel Half53-7780-06
3Capscrew321-2
4MUTTER3296-42
5Asm-Wheel Half & Gear92-4957-06
6
61Hub-Bearing Support52-2410
62Spacer-Bearing52-2440
63Bearing52-2450
