> Roth / TORO > Hand operated > Lawnmower > 2-stroke SP > 237/22045 > 210000001 > Controls, BALLS and Panel Assy.

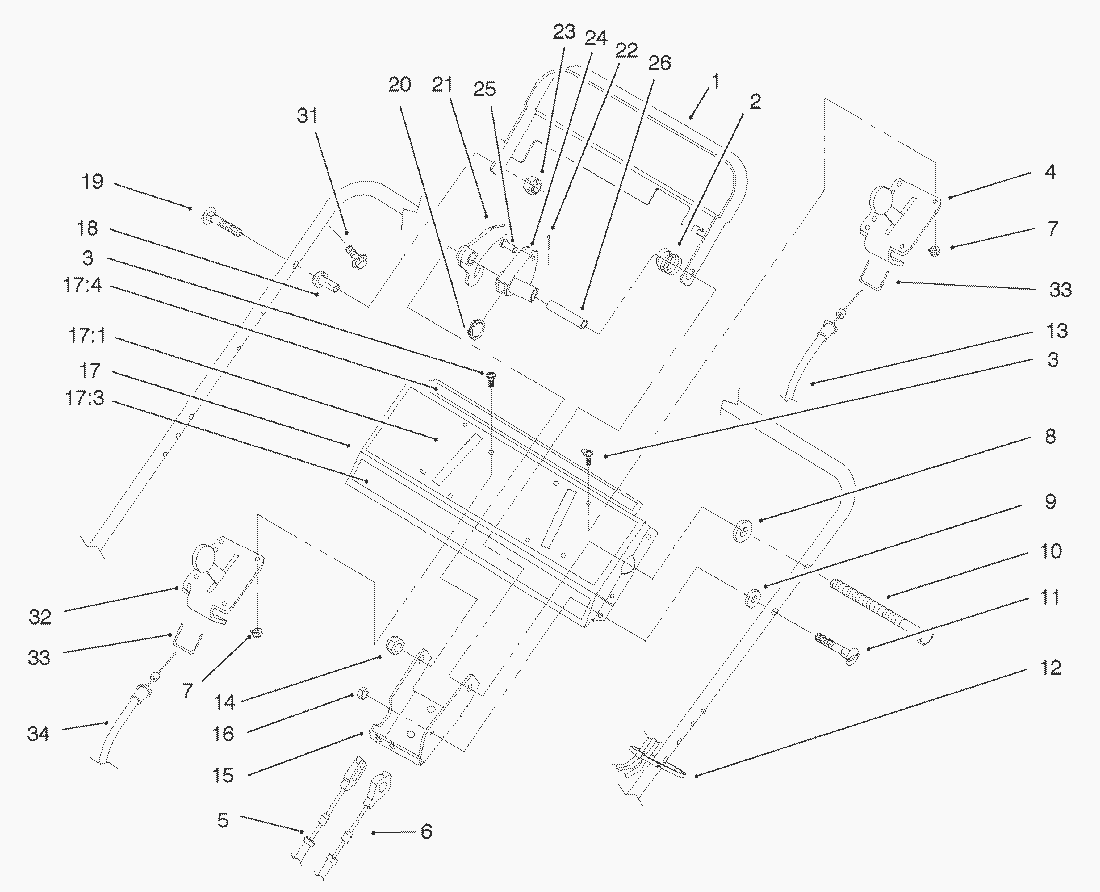

Lista de repuestos para Toro Roth / TORO Controls, BALLS and Panel Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Control Bar Wa84-8940-03
2Spring-Control85-6750
3Screw-PPH3250-12
4Control-Throttle85-6770
5Cable-Traction84-9120
6Cable-Clutch84-9110
7Nut3296-2
8Spacer71-9310
9Spacer71-9320
10Screw-Cap Hex. Hd.322-19
11SCHRAUBE46-6430
12Tie Wrap3290-378
13Cable-Throttle85-6760
14MUTTER3296-29
15Bracket-Control92-1778-03
16MUTTER3296-42
17Panel ASM(Service)99-8135
171Decal-Control Panel98-2048
173Decal-Proline85-6720
174Decal-Danger93-6655
18Support-Spacer49-1631
19Screw-Handle17-9427
20Bushing-Nylon Flange86-9320
21Lever-Traction84-9000
22Pin-Cotter3272-1
23Nut-Flange Lock3296-58
24Lever-BBC84-8990
25Pin-Cable84-9040
26Spacer-Control Bracket84-9030
31Self Tapping Screw32104-76
32Control-Shift,Bbc99-2542
33Retainer-Throttle Control85-6780
34Cable-Shift,Bbc99-2541
