> Roth / TORO > Ride-On Mowers > Rider > 8-25 > 372/70060 > 39000001 > Rear Body Assy.

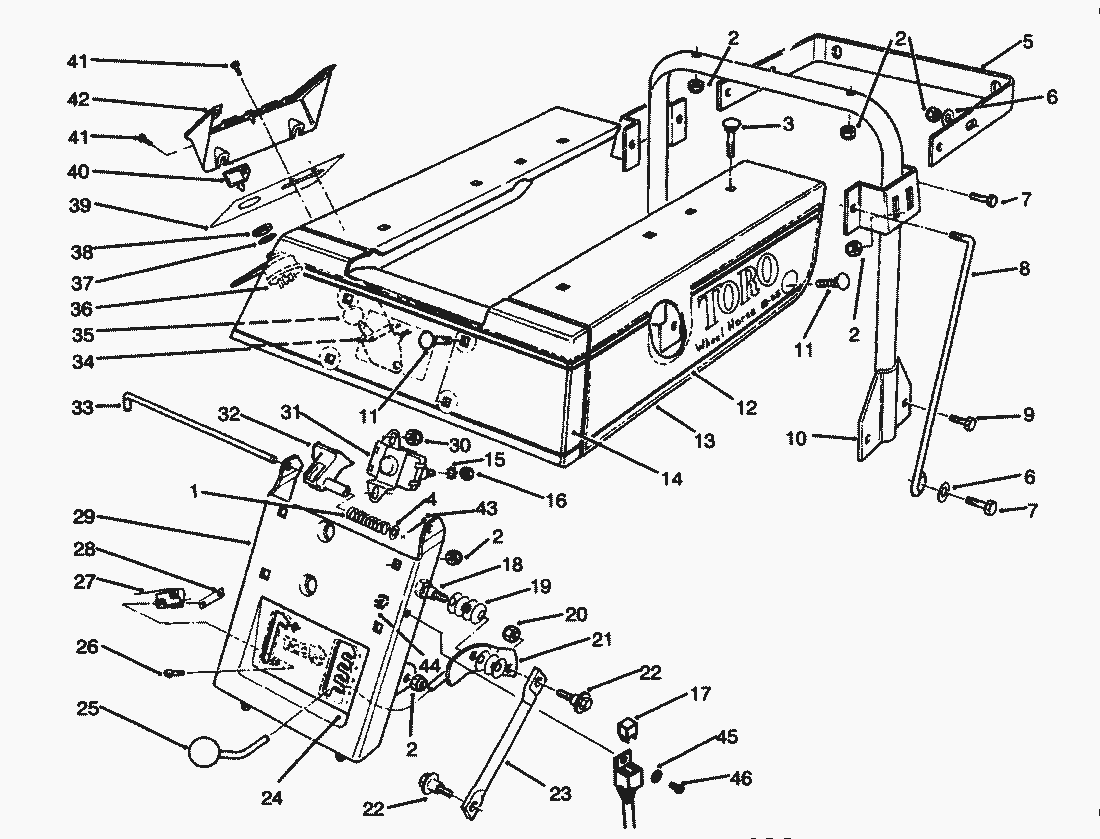

Lista de repuestos para Toro Roth / TORO Rear Body Assy.

Lista de repuestos

pos.	descripción	Número de pieza
1	Spring-Gearbox Return	71-8310
2	MUTTER	3296-29
3	Carriage Bolt	3230-3
4	Washer	3256-22
5	Bar-Stand	67-1500-03
6	Washer	3256-23
7	Hex Hd. Capscrew	322-5
8	Brace-Support, Seat	67-1480
9	Capscrew	322-3
10	Support W.A.-Seat	67-0790-03
11	Carriage Bolt	3230-20
12	Decal-Toro L.H.	76-3840
	Decal-Toro R.H.	76-3880
13	Body W.A.-Rear	67-0231-01
14	Decal-Front	76-3850
15	Lockwasher	3255-7
16	Jam Nut	3218-1
17	Relay	116397
18	Bolt-Shoulder	28-0540
19	Washer-Belleville	3290-413
20	Locknut	3296-39
21	Handle W.A.-H.O.C.	67-0270
22	Bolt-Shoulder	67-0870
23	Link-H.O.C.	67-0080
24	Decal-H.O.C. Deck Engage.	76-3910
25	Knob	233-22
26	Machine Screw	3290-313
27	Micro Switch	40-8200
28	Speed Nut	3290-354
29	Support W.A.-Seat	67-1090-01
30	MUTTER	3296-42
31	Solenoid-Starter	47-1910
32	Prop-Seat	80-4330
33	Rod-Base, Seat	80-4550
34	Control-Throttle	66-6640
35	Knob	233-59
36	Starter Switch	23-0660
37	Lockwasher	3254-5
38	Hex Nut	218-461
39	Decal-Panel, Control	67-1270
40	Key-Ignition	63-8360
41	Screw-Hex. Hd. Tapping	32144-42
42	Cover-Panel, Control	67-1030
43	Cotter Pin	3274-4
44	Nut	3296-2
45	Washer	3256-14
46	Screw-Cap Mach. Hd.	3290-134
