> Roth / TORO > Ride-On Mowers > Rider > 8-25 > 372/70060 > 39000001 > Engine Assy.

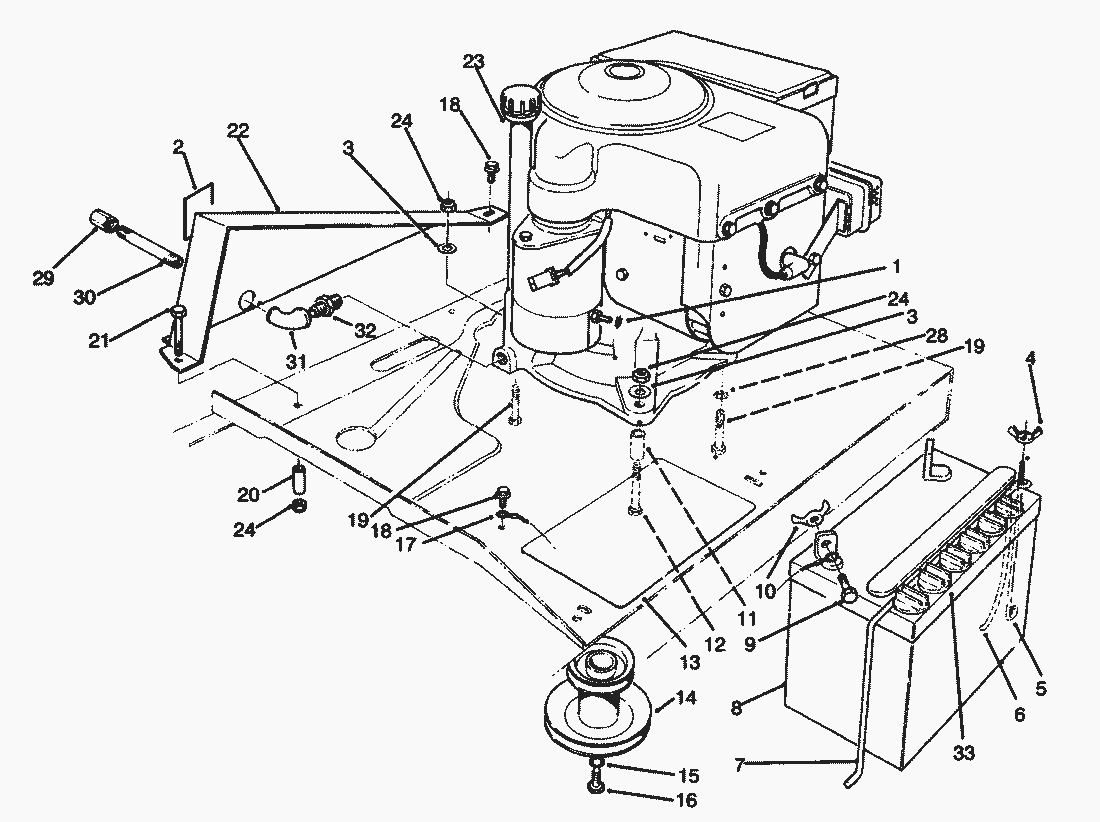

Lista de repuestos para Toro Roth / TORO Engine Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Lockwasher3255-7
2Decal-Noise76-3930
3Washer3256-23
4Nut-Wing32103-14
5Post-Battery56-7720
6Vent-Tube56-2540
7Hold Down-Battery56-7710
8Battery-7 Plate80-2600
9Capscrew321-4
10Nut-Wing32103-22
11Spacer80-4560
12Screw-Cap Hex. Hd.322-12
13Pad-Antiskid62-4300
14Pulley-Engine83-4840
15Washer-Flat3256-25
16Screw-Cap Hex. Hd.62-3760
17Assembly-Wire Battery to Ground56-7870
18Screw-Wash. Hd., Tap.32144-14
19Capscrew322-7
20Guide-Belt67-0920
21Capscrew322-10
22Guard-Chain67-0962-01
23
24MUTTER3296-29
28Lockwasher3255-8
29Pipe Cap288-2
30Pipe Nipple289-34
31Elbow-Street2811-17
32Reducer2812-1
33Cap-Battery84-8470
Reducer-Throttle88-4490
