> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 437/22173 > 200000001 > Gearbox Assy.

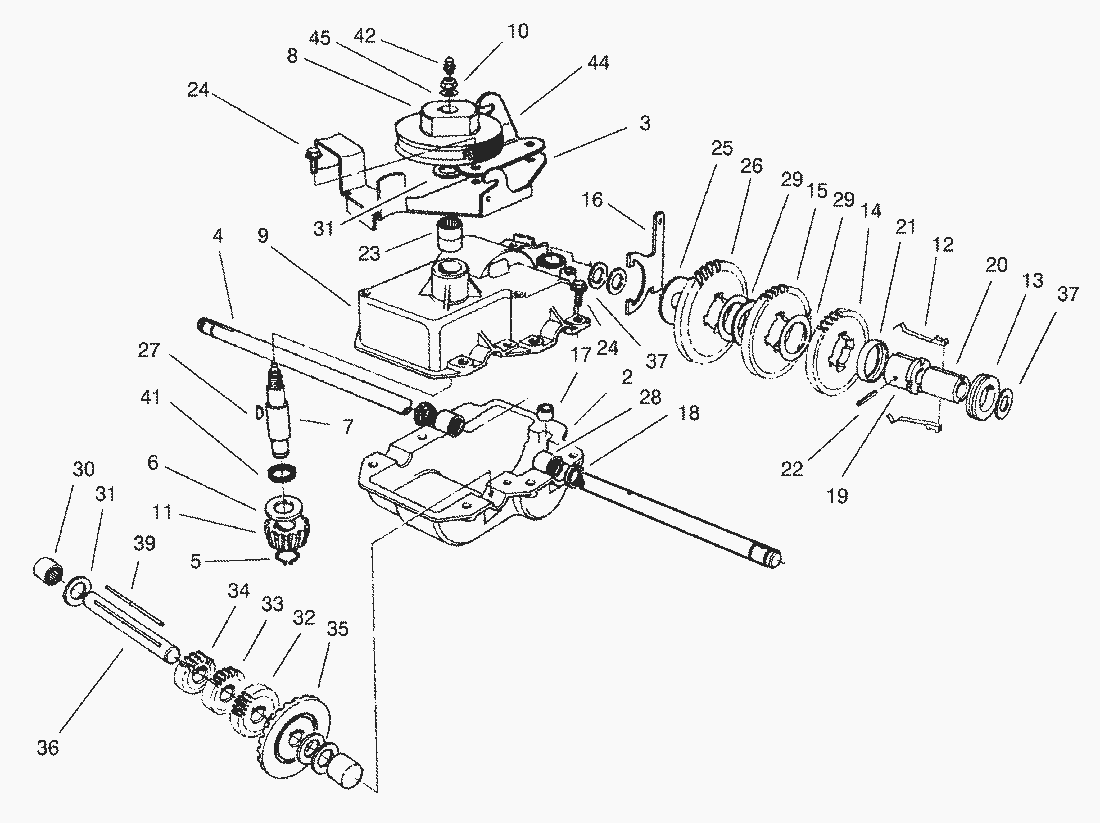

Lista de repuestos para Toro Roth / TORO Gearbox Assy.

Lista de repuestos

pos.	descripción	Número de pieza
2	Case-Lower	74-1920
3	Bracket-guide Belt	49-8461-03
4	Shaft-Output	74-1890
5	Ring-Retaining	32151-57
6	Washer-Thrust	47-2910
7	Shaft-Input	68-8190
8	Pulley	39-6740
9	Case-Gear, Upper	74-1880
10	Nut-Lock	3296-5
11	Pinion-Bevel	39-6660
12	Cable-Battery Neg.	29-9330
13	Collar-Shift	29-9340
14	Gear-38T	42-4740
15	Gear-42T	29-9271
16	Yoke-Shift	60-8870
17	Bushing-Yoke	29-9570
18	Seal-Grease	47-6730
19	Sleeve-Gear	55-8010
20	Sleeve	39-6720
21	Retainer-Key	55-8020
22	Pin-Groove	3285-19
23	Bearing-Needle	47-7270
24	Screw-Self Tapping	49-2040
25	Washer-Flat	29-9690
26	Gear-52T	46-3560
27	Key-Woodruff	3257-1
28	Bearing-Needle	48-2060
29	Washer	36-4770
30	Bearing-Closed	252-103
31	Washer-Thrust	36-4792
32	Gear-18T	39-6650
33	Gear-14T	46-3550
34	Gear-12T	46-3540
35	Gear-Bevel	74-1760
36	Shaft-Intermediate	53-7950
37	Washer-Thrust	36-4780
39	Key-Square	39-7842
41	Seal	47-7260
42	Fitting-Grease	302-63
44	Bracket-Traction Engage	74-1750-03
45	Washer	3256-45
