volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
437/22173
>
200000001
>
Fuel Tank/ Fuel Valve

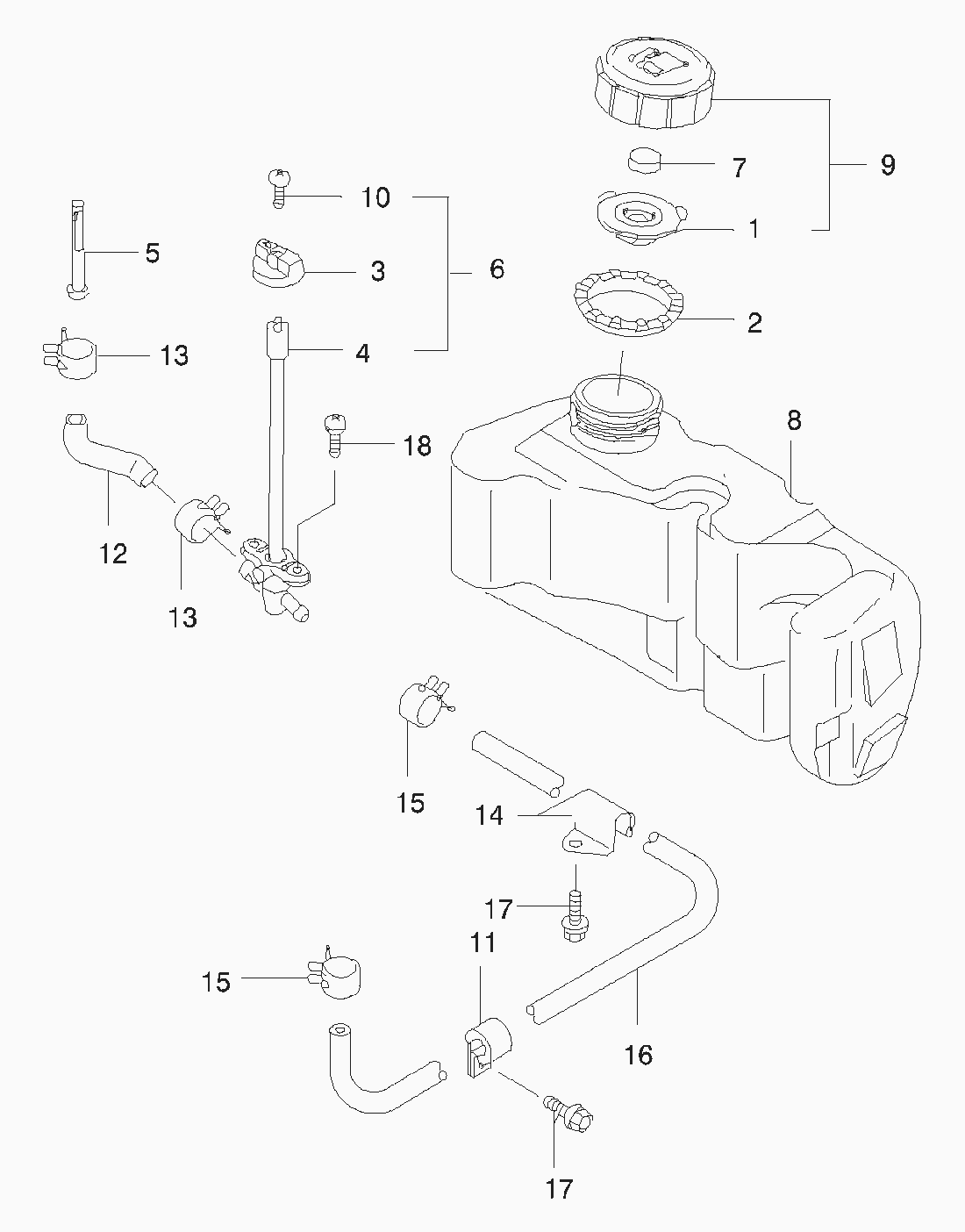

Lista de repuestos para Toro Roth / TORO Fuel Tank/ Fuel Valve
pos.
descripción
Número de pieza
1
Gasket
100-2808
2
Guide
100-2809
3
Lever
100-2810
4
Filter-Complete
100-2811
5
Filter-Fuel
100-2812
6
Valve-Fuel
100-2814
7
Element-Breather
100-2813
8
Tank-Fuel, Complete
100-2815
9
Tank Cap ASM
100-2816
10
Screw
100-2817
11
Clamp
100-2818
12
Tube
100-2819
13
Clamp
100-2820
14
Clamp
100-2821
15
Clamp
100-2822
16
Tube
100-2823
17
Bolt-Flanged
100-2804
18
Screw-Pan
100-2825
