volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
437/22173
>
200000001
>
Electric Equipment

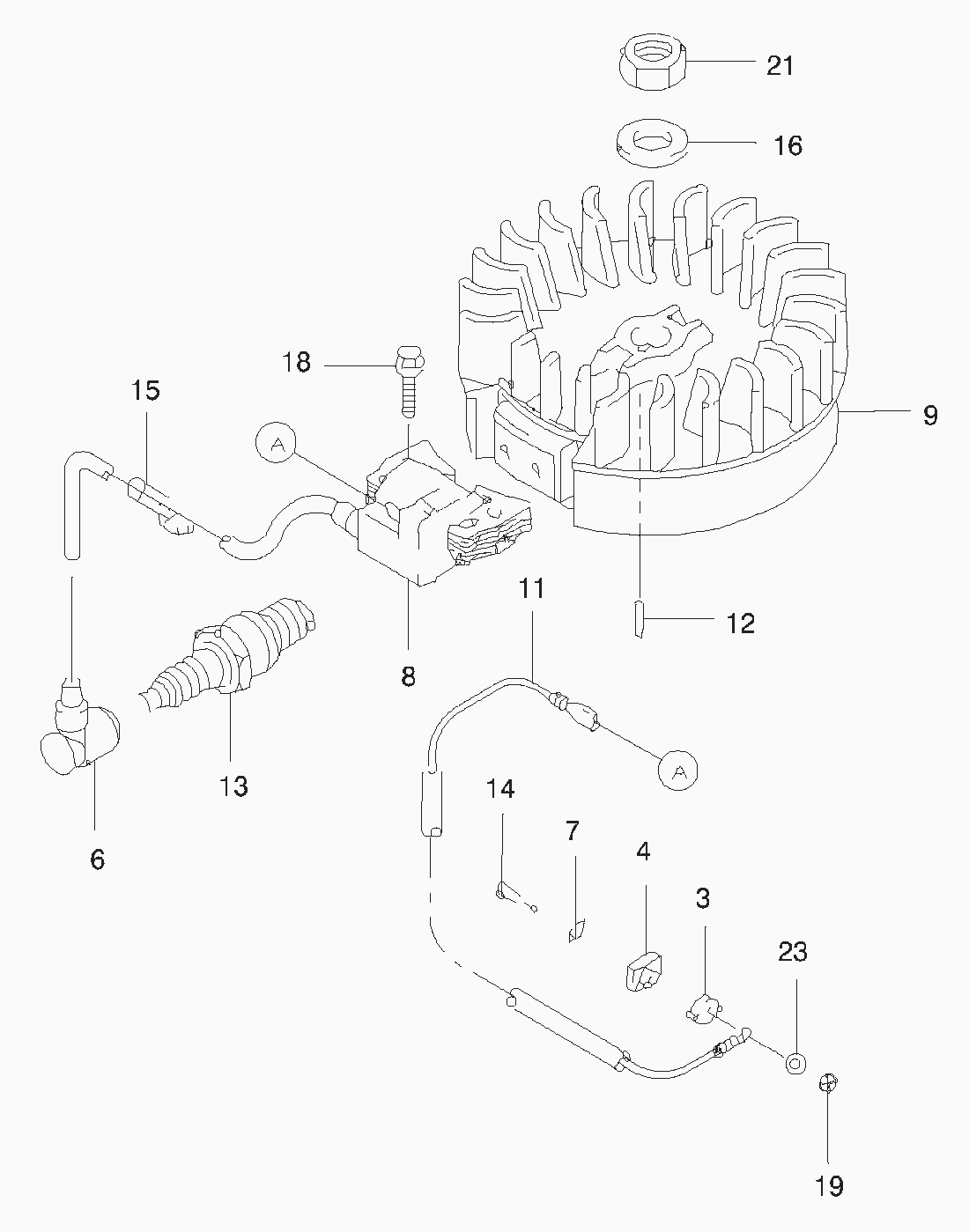

Lista de repuestos para Toro Roth / TORO Electric Equipment
pos.
descripción
Número de pieza
3
Cover
100-2652
4
Insulator
100-2653
6
Spark Plug Cap
Kw10087
7
Terminal
100-2796
8
Ignition Coil ASM
100-2657
9
Flywheel-Complete
100-2658
11
Wire-Lead
100-2660
12
Key
93-8571
13
Plug-Spark
Kw10676
14
Bolt
100-2663
15
Clamp
100-2664
16
Washer
100-2665
18
Bolt-Flanged
100-2610
19
Nut-Hex
100-2668
21
Nut
93-8568
23
Washer-Plain
100-2798
