volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
417/20829
>
210000001
>
Gasket Sets

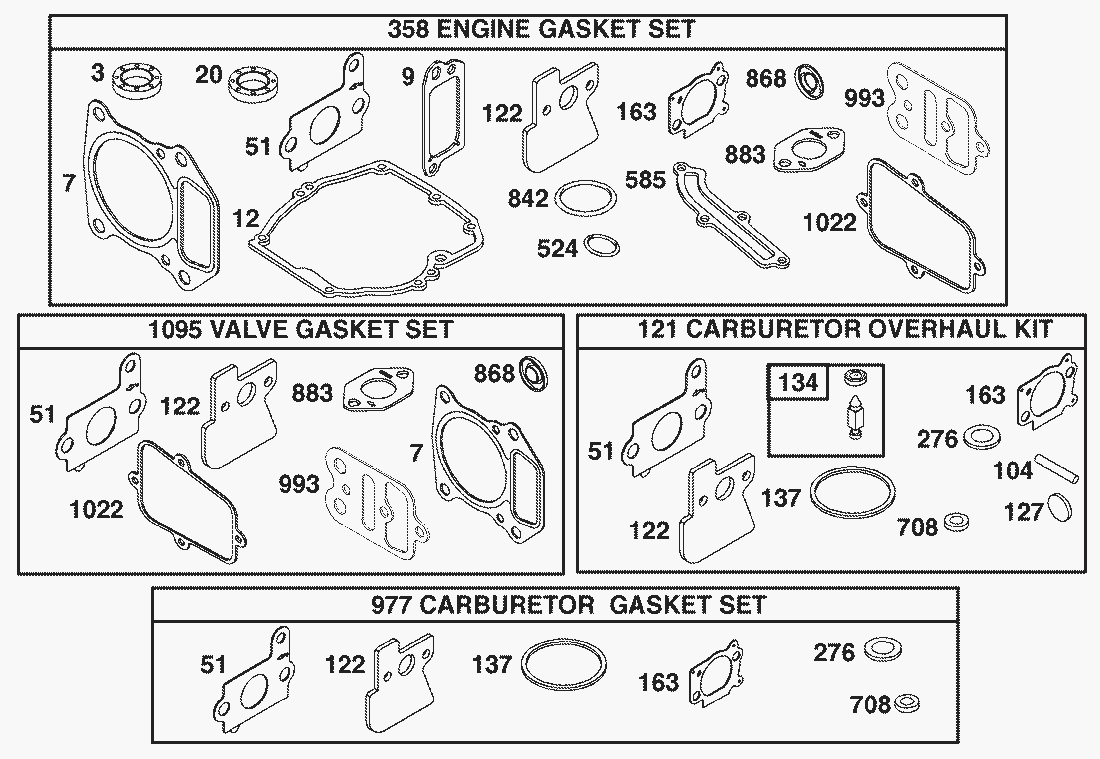

Lista de repuestos para Toro Roth / TORO Gasket Sets
pos.
descripción
Número de pieza
3
Seal-Oil
99-0912
7
Gasket-Cylinder Head
99-0930
9
Gasket-Breather
99-0913
12
Gasket-Crankcase
99-0953
1095
Valve Overhaul Gasket Set
100-5033
104
Pin-Float Hinge
99-0970
977
Gasket Set-Carburetor
100-5034
358
Engine Overhaul Gasket Set
100-5035
134
Valve-Float (Includes Seat)
77-8110
121
Carburetor Kit
100-5036
708
Seal-Dust
100-5037
276
Washer-Sealing
100-5038
868
Seal-Valve
99-0946
883
Gasket-Exhaust
99-0947
842
Seal-Intake Elbow
77-7270
524
Seal-O Ring
77-7300
1022
Gasket-Rocker Cover
99-0907
122
Gasket-Intake
99-0978
585
Fastener
99-0925
993
Gasket-Plate
99-0948
20
Seal-Oil
99-0955
51
Gasket-Intake
99-0968
163
Gasket-Air Cleaner
99-0976
127
Plug-Welch
100-9107
137
Gasket-Float Bowl
104-7550
