> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 417/20829 > 210000001 > Electric Starter Assy.

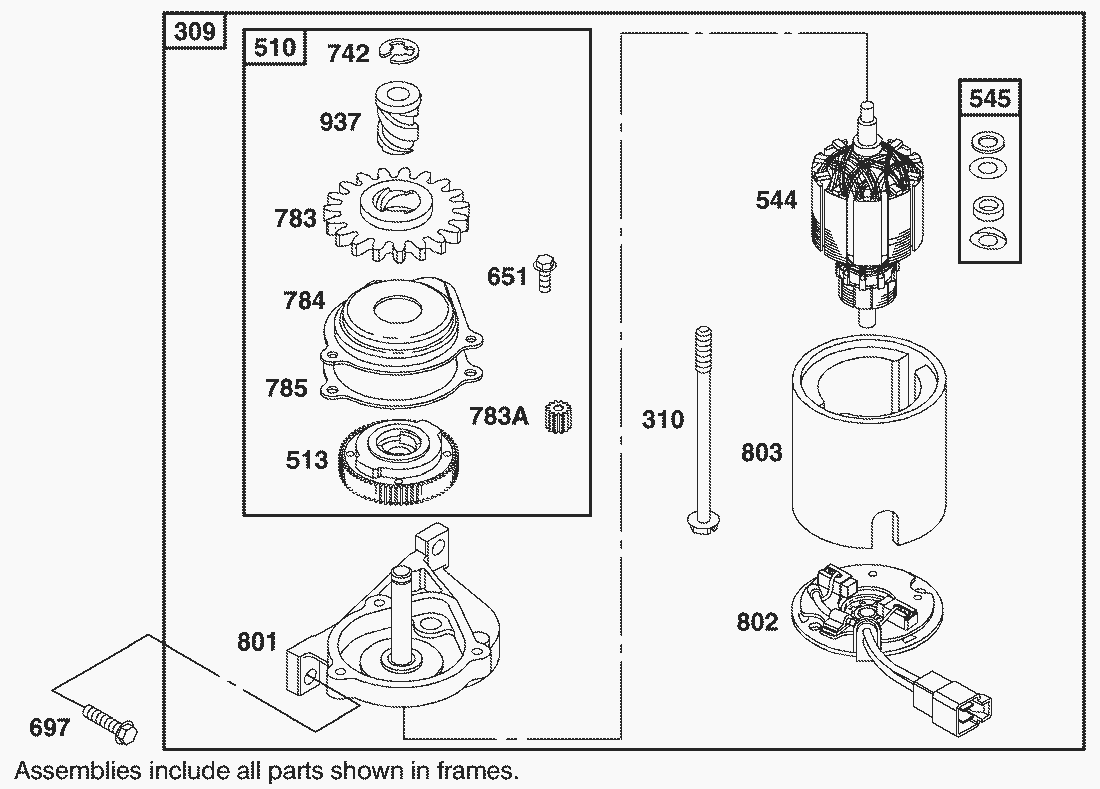

Lista de repuestos para Toro Roth / TORO Electric Starter Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
309Motor-Starter77-8670
310Screw-Slotted Hex.99-1019
510Drive Kit77-8910
513Clutch-Drive99-1021
544Armature-Starter99-1022
545Washer Set77-8740
651Screw-Hex.99-1017
697Screw-Hex.99-1018
742Retainer-Lock77-8830
783Gear-Starter99-1023
783Gear-Starter99-1024
784Cover-Gear99-1025
785Gasket-Cover99-1026
801Cap-Drive99-1027
802Cap-End99-1028
803Housing-Starter99-1029
937Spline-Starter99-1030
