> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 417/20829 > 210000001 > Deck, Kicker and Recycler Plug Assy.

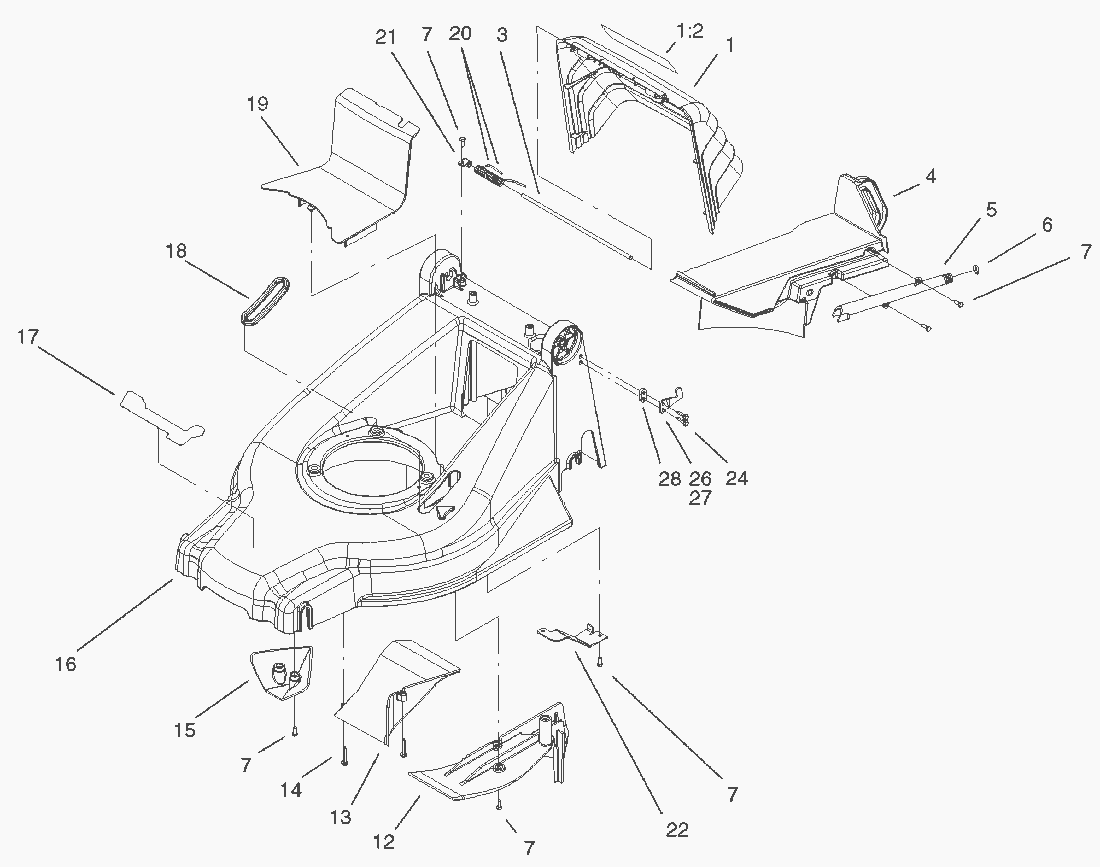

Lista de repuestos para Toro Roth / TORO Deck, Kicker and Recycler Plug Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Door-Decal ASM100-9115
12Decal-Danger93-4105
3Rod-Pivot, Door100-1509
4Recycler-Plug, Kicker100-1505
5Fitting-Washout100-1522
6O-Ring-Seal (Model No. 22045 Only)46-6290
7Screw-Thread Forming32144-1
12Kicker-Cover, Rear99-6486
13Ramp-Discharge100-1506
14Screw-HWH100-4352
15Kicker-Front99-6485
16Deck104-7573-01
17Decal-Recycler (only on: 20805)100-4354
18Boot-HOC100-3932
19Belt Cover99-6479
20Spring-Torsion, Door104-7594
21Clamp (Model 38177, 38178)98-2256
22Bracket-Deck100-9123-03
24Screw-HWH100-4351
26Hook-Left104-7557
27Hook-Right104-7558
28Spacer104-7556
