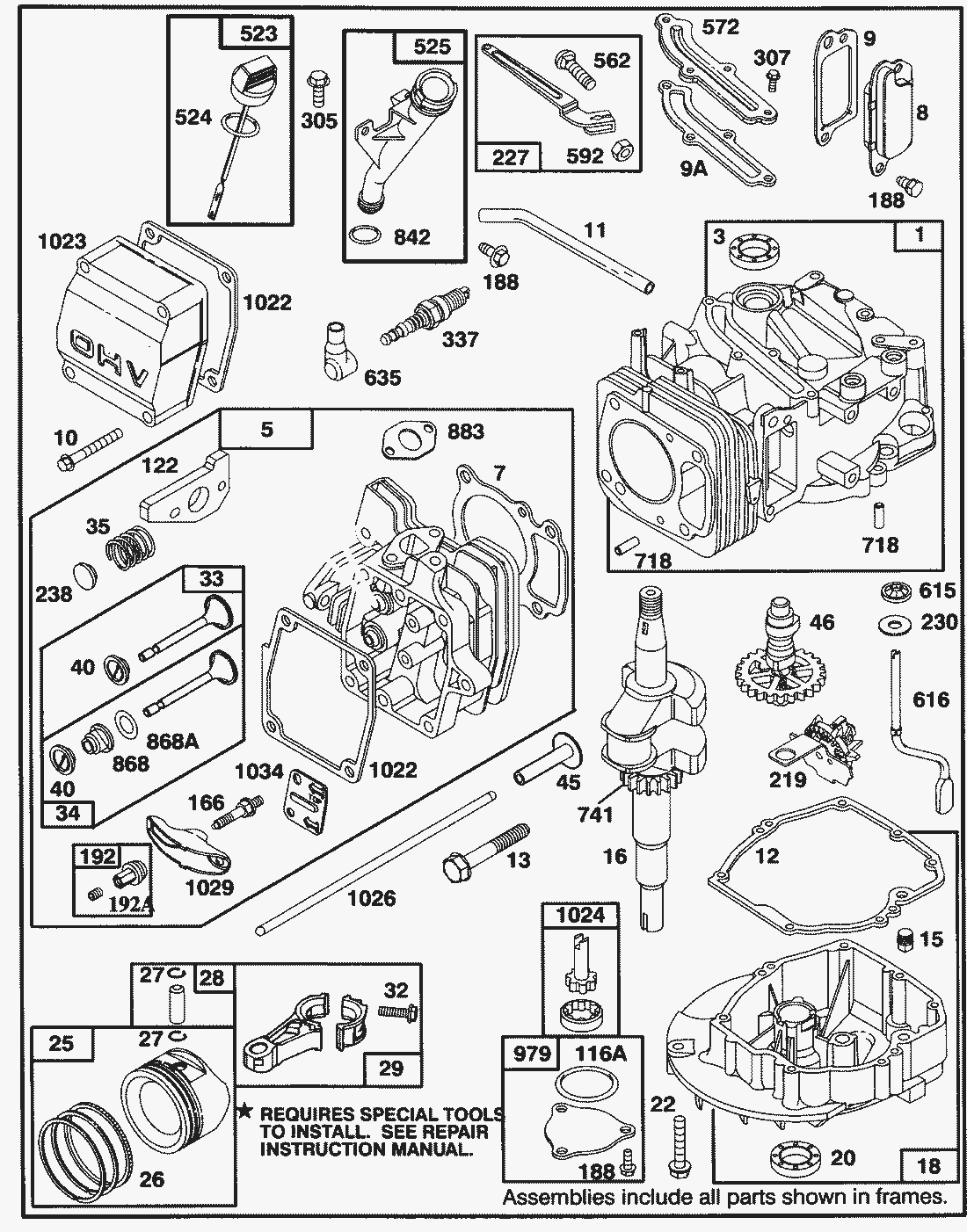

Lista de repuestos para Toro Roth / TORO Engine GTS 150

pos.	descripción	Número de pieza
1	Cylinder Assy.	77-7590
5	Head-Cylinder	77-7730
8	Breather Assy	77-9260
10	Screw-Hex. Head (valve cover)	77-7360
11	Tube-Breather	77-7350
13	Screw-Cylinder Head	77-7630
15	Plug-Pipe	77-9240
16	Crankshaft Note: Order Part No 77-7540 For Timing Gear Key	77-7510
18	Base-Engine	77-7560
22	Screw-Engine Base Note: Order Prt No.77-9080 For Hole Nearest Breather	77-9070
25	Piston Assy. (Std.)	77-7690
26	Ring Set (Std.)	77-7700
27	Lock-Piston Pin	77-7710
28	Pin-Piston (Std)	77-7720
29	Rod-Connecting	77-7670
32	Screw-Connecting Rod	77-7680
33	Valve-Exhaust	77-7860
34	Valve-Intake	77-7880
35	Spring-Valve	77-7810
40	Retainer-Spring	77-7870
45	Tappet-Valve	77-7610
46	Gear-Cam	77-7490
122	Adapter Assy.	77-7820
166	Stud-Rocker Arm	77-7780
188	Screw-Sem (Breather Mounting, pump cover)	77-7450
192	Nut-Hex Special	77-7910
192	Screw-Set	77-9090
219	Gear-Governor	77-7500
227	Lever.-Governor	77-7370
230	Washer-Thrust	77-7470
238	Cap-Valve	77-7800
305	Screw-Hex. Head	77-8310
307	Screw-Sem (breather cover)	77-7420
337	Plug-Spark	77-7330
523	Dipstick-Oil	77-7260
525	Tube-Oil Filler	77-7290
562	Bolt-Governor Lever	77-7380
572	Baffle-Cylinder	77-7400
592	Nut-Hex.	77-7390
615	Fastener	77-7480
616	Crank-Governor	77-7460
635	Elbow-Spark Plug	77-7340
718	Dowel-Sleeve	77-7600
741	Gear-Timing	77-7530
979	Cover-Oil Pump	77-7650
1023	Cover-Valve	77-7060
1024	Pump-Oil	77-7640
1026	Rod-Push	77-7620
1029	Arm-VLV Rocker	77-7790
1034	Guide-Push Rod	77-7770
	Short Block (Incl. Ref.	77-9280
