volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
498/26631 B
>
4900001
>
Engine Assy.

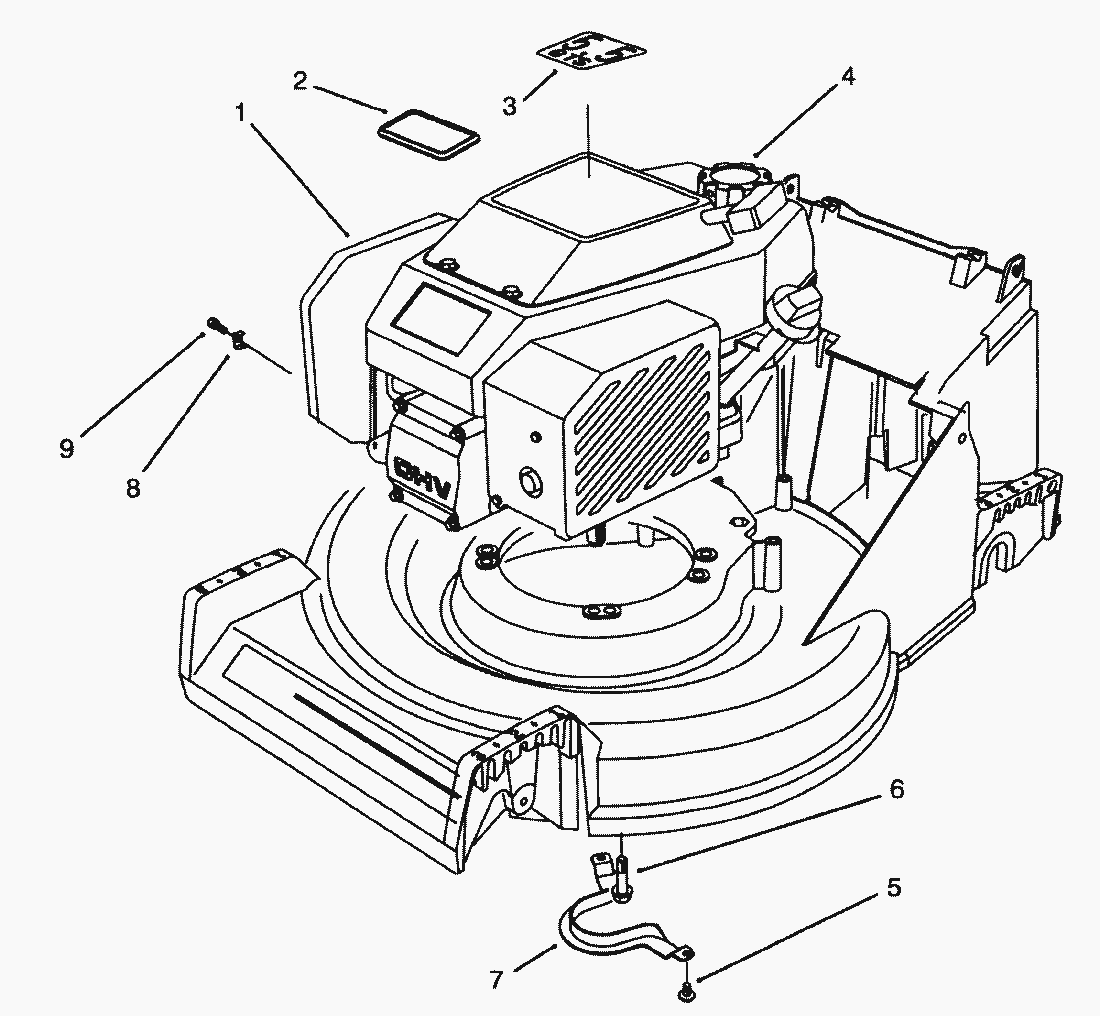

Lista de repuestos para Toro Roth / TORO Engine Assy.
pos.
descripción
Número de pieza
1
Engine-OHV
77-8981
2
Plate-TORO Logo
92-2289
3
Decal-Recoil
92-7857
4
Gas Cap Assembly
55-3570
5
Self Tapping Screw
32144-70
6
Bolt-Engine
32144-102
7
Guide-Belt
66-0570
8
Clamp-Cable
2210-249
9
Screw-Clamp
86-7990
