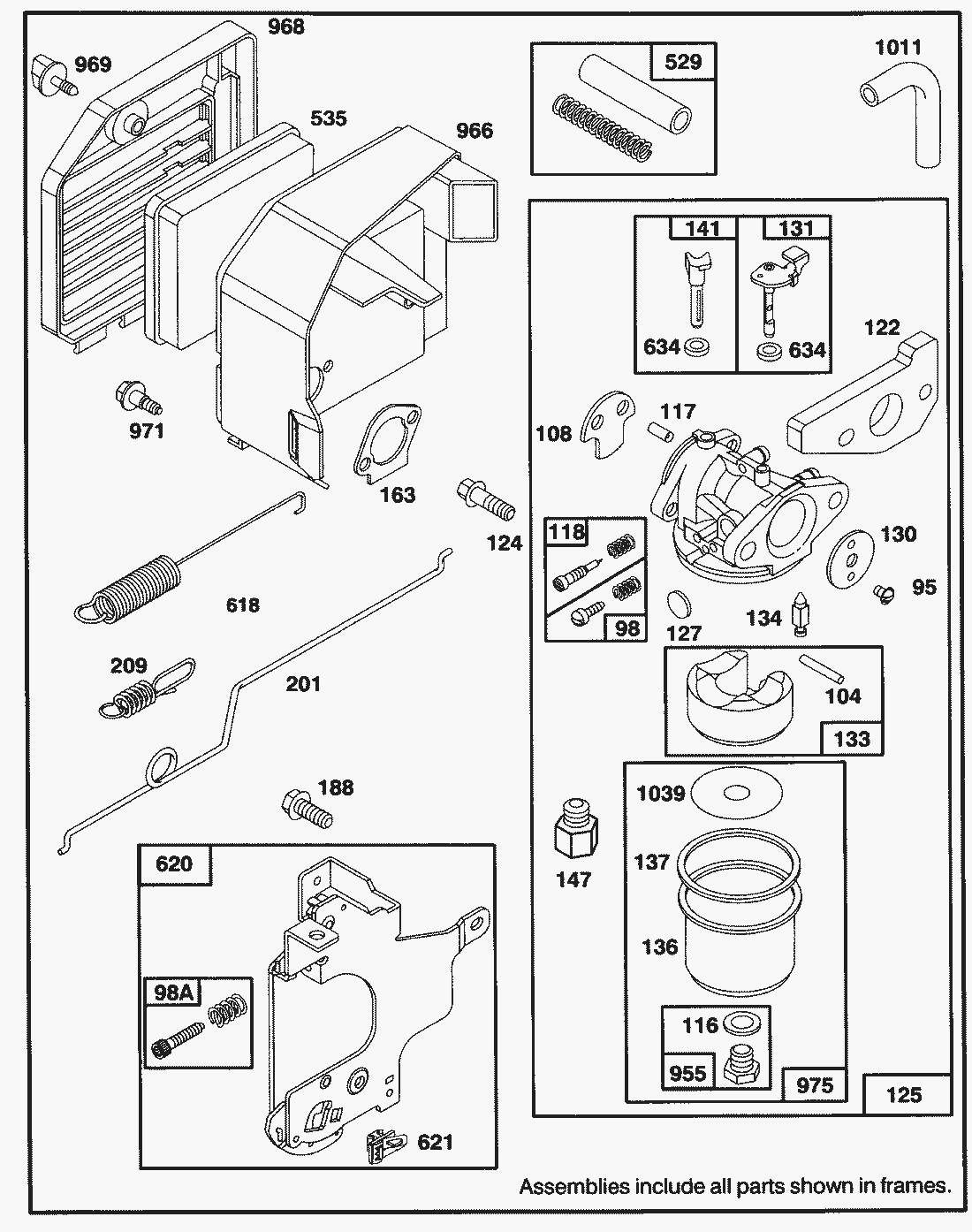

Lista de repuestos para Toro Roth / TORO Engine GTS-150 (Cont.)

pos.	descripción	Número de pieza
95	Screw-Round Head	77-8090
98	Screw-Idle Adj.	77-8240
98	Screw Assy-Speed Adj.	77-8020
104	Pin-Float Hinge	77-8180
108	Valve-Choke	77-8070
116	Washer-Fuel Bowl	77-8210
117	Jet-Needle Valve	77-8060
118	Valve & Kit-Needle	77-8230
122	Adapter Assy.	77-7820
124	Screw-Hex Head (carburetor mounting)	77-7970
125	Carburetor Assy	77-8050
127	Plug-Welch	77-8100
130	Valve-Throttle	77-8080
131	Shaft-Throttle	77-8160
133	Float-Carburetor	77-8170
134	Valve-Float (Includes Seat)	77-8110
136	Bowl-Fuel	77-7240
137	Gasket-Fuel Bowl	77-8200
141	Shaft-Choke	77-8130
147	Adapter-Jet Note: For High Altitude Jet, Order Part No. 77-9000	77-8120
163	Gasket-Air Cleaner	77-7960
188	Screw-Sem (Breather Mounting, pump cover)	77-7450
201	Link-Governor	77-7980
209	Spring-Governor	77-7990
529	Tube-Breather	77-8030
535	Element-Filter	77-7950
618	Spring-Return	77-8140
620	Bracket-Carburetor	77-8000
621	Switch-Stop	77-8010
634	Washer-Seal	77-8150
955	Screw-Hex Head	77-8220
966	Base Air Cleaner	77-7940
968	Cover-Air Cover	77-7040
969	Screw-Air Cleaner	77-7920
971	Screw-Air Cleaner	77-7930
975	Bowl Assy.-Carburetor	77-8190
1011	Tube-Vent	77-8040
1039	Limiter-Float	77-7250

pos.	descripción	Número de pieza
23	Flywheel-Magneto	77-8330
24	Key-Flywheel	77-8340
37	Guard-Flywheel	77-7190
55	Housing-Rewind Starter	77-8460
56	Pulley-Rewind Starter	77-9270
58	Spool-Starter Rope (Cut To Suit)	77-8480
59	Insert-Starter Grip	77-7210
60	Grip-Starter Rope	77-8510
65	Screw-Hex. Head	77-8300
265	Clamp-Casing	77-8280
267	Screw-Hex Head	77-8290
304	Housing-Blower	77-8270
305	Screw-Hex. Head	77-8310
332	Nut-Hex	77-8360
333	Armature-Magneto	77-8420
334	Screw-Sem	77-8440
356	Wire-Ground	77-8400
455	Cup-Starter	77-8350
456	Retainer-Spring	77-8470
459	Pawl & Spring Ratchet	77-8530
461	Screw-Rewind Starter	77-8490
515	Spring-Retainer	77-8500
608	Starter Assy-Rewind	77-8450
718	Dowel-Sleeve	77-8550
851	Terminal-Spark Plug	77-8430
980	Bracket-Blower Housing.	77-7140
1002	Grommet	77-7180
1016	Cover-Pulley	77-8570

pos.	descripción	Número de pieza
180	Tank Assy-Fuel	77-8580
182	Bracket-Fuel Tank	77-7170
187	Hose-Fuel (Cut To Suit)	77-8620
300	Muffler-Exhaust	77-8640
346	Screw-Self Tapping (muffler guard)	77-8650
346	Screw-Arrester Mtg.	77-9050
601	Clamp-CL Pipe	77-8630
670	Spacer-Fuel Tank (Incl. 2)	77-9030
674	Screw-Tank Mtg.	77-8600
832	Guard-Muffler	77-9290
883	Gasket-Exhausts	77-7760
994	Arrester-Spark	77-9040
1041	Seal-Foam	77-8590
