Lista de repuestos para Toro Roth / TORO Engine B&S Model 254707-0128-01

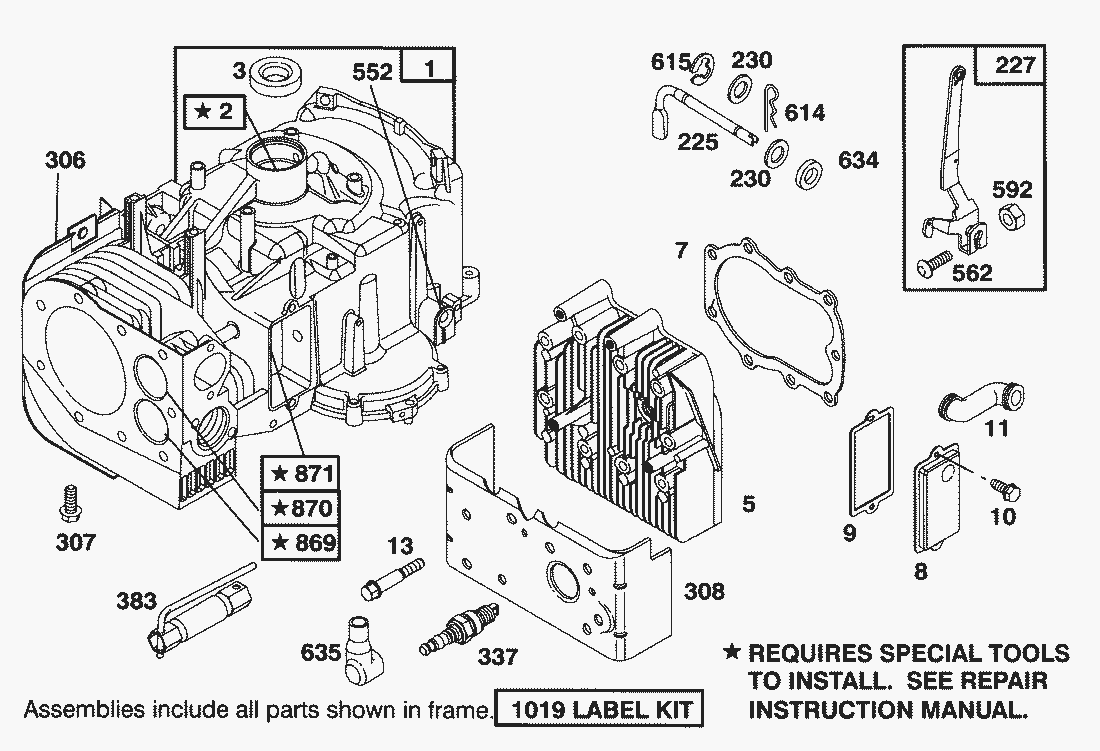

pos.	descripción	Número de pieza
1	Cylinder Assembly	495728
2	Bearing-Cylinder Note: Installation Requires Special Tools	399265
3	Seal-Oil	391086
5	Head-Cylinder	212914
7	Gasket-Cylinder Head	271866
8	Breather Assembly	391406
9	Gasket-Valve Cover	27803
10	Screw	94621
11	Tube-Breather	280100
13		93723
225	Crank-Governor	231058
227	Lever Assy.-Governor	493935
230	Washer-Gov.Crank	94742
306	Shield-Cylinder	224542
307	Screw-Cylinder Shield Mtg.	93949
308	Cover-Cylinder Head	222725
337	Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)	802592
383	Wrench-Spark Plug	89838
552	Bushing-Gov. Crank	231597
562	Bolt, Governor Lever	92613
592	Nut-Hex.-10-24	231082
614	Cotter, Hair Pin	93306
615	Retainer, E-Ring	93307
634	Seal-Oil	491323
635	Elbow-Spark Plug	66538
869	Seat-Intake Valve (Standard)	261463
870	Seat-Exhaust Valve (Std.)	213316
871	Guide-Exhaust Valve Note: 231218 Guide-Exhaust on Intake Valve (Brass). See Repair Manual.	261961
1019	Decal (Label) Kit	491195

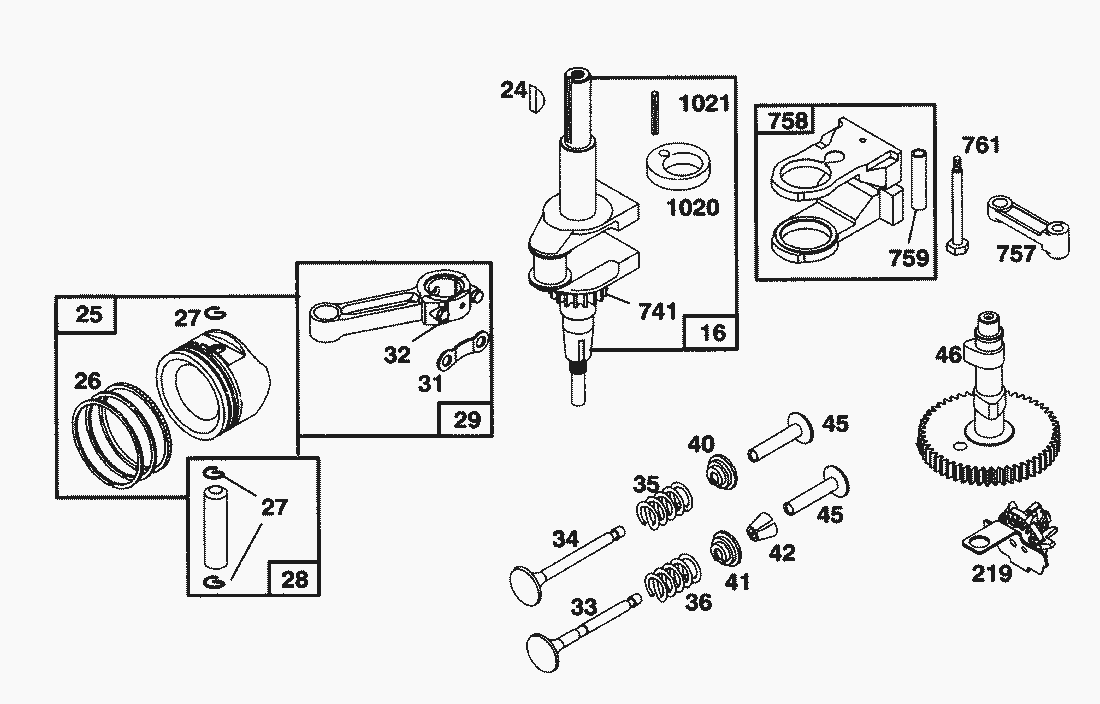

pos.	descripción	Número de pieza
16	Crankshaft Note: Order 94196 for Timing Gear Key.	491647
24	Key-Flywheel	222698
25	Piston Assembly-Standard	391285
	Piston Assembly-.030 O.S. PISTON RING SETS:	391289
26	Ring Set-Piston-Standard	391780
	Ring Set-Piston-.010 O.S.	391781
27	Lock-Piston Pin	260924
28	Pin Assembly-Piston-Standard	299691
29	Connecting Rod Assy. Note: For Connecting Rod with .020 Undersize Crankpin Bore-Order No.490469.	490348
31	Lock-Connecting Rod Screw	222299
32	Screw-Connecting Rod	92909
33	Valve-Exhaust	261185
34	Valve-Intake	261462
35	Spring-Intake Valve	65906
36	Spring-Exhaust Valve	26828
40	Retainer-Intake Valve	221596
41	Rotocoil-Exhaust Valve	292260
42	Retainer-Exhaust Valve Rotocoil	93630
45	Tappet-Valve	262248
46	Gear-Cam	212897
219	Oil Slinger	490815
741	Gear-Timing	262135
757	Link-Counterweight	212359
758	Counterweight Assembly	391373
759	Pin Assy., Piston, Std.	298909
761	Screw-Counterweight	93875
1020	Eccentric	261242
1021	Pin-Eccentric	94160

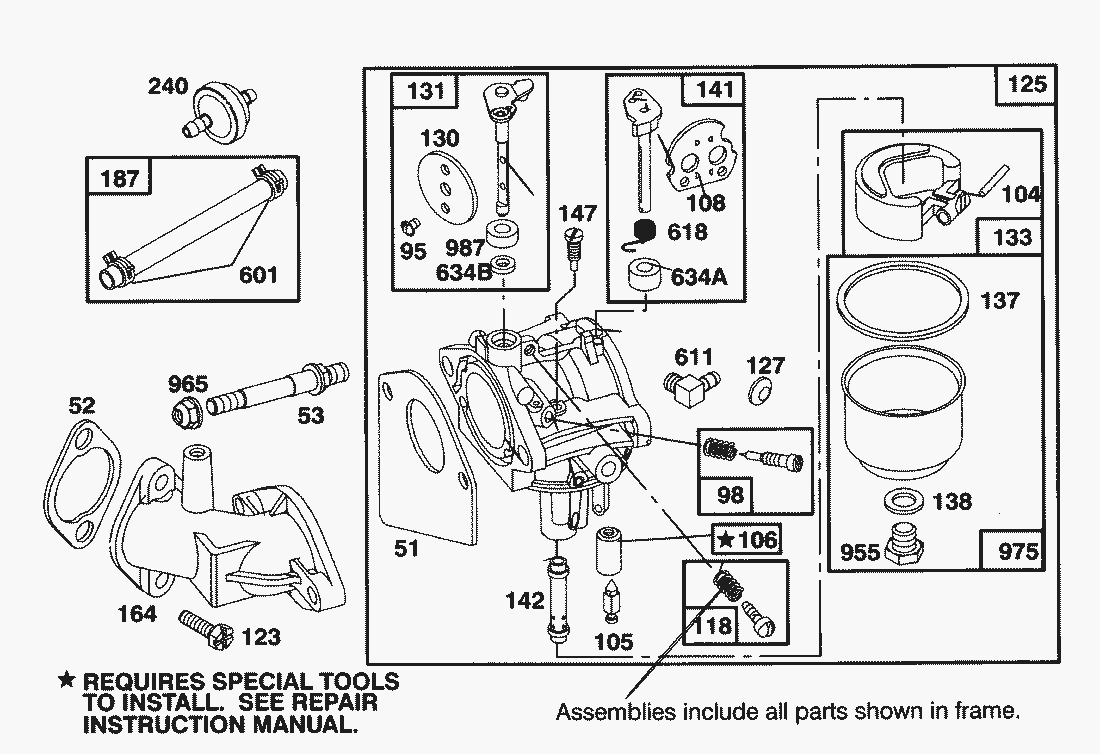

pos.	descripción	Número de pieza
51	Gasket-Carb (Carb to Elbow)	272465
52	Gasket-Carburetor Mtg.	272554
53	Stud-Carb Mtg	94637
95	Screw-Throttle Valve Mounting Sem	94098
98	Screw-ldle Speed	495800
104	Pin-Float Hinge	231789
105	Valve Assy.-Inlet Needle	231855
106	Inlet Valve Seat	231854
108	Valve-Choke	224666
118	Valve-Needle	494383
123	Screw-Elbow Mtg	94616
125	Carburetor Assembly	495784
127
130	Valve-Throttle	224539
131	Shaft and Lever-Throttle	494379
133	Float-Carburetor	494381
137	Gasket-Float Bowl	281165
138	Washer-Float Bowl Screw	281164
141	Shaft and Lever-Choke	494380
142	Nozzle_Carburetor Note: 495604 High Altitude Kit Includes: 281164 Washer-Bowl	494878
147	Pilot-Jet	231794
164	Carburetor-Elbow	213819
187	Pipe-Fuel (11 Long)	393815
240	Filter-Fuel	298090
601	Clamp-Fuel Pipe	93053
611	Fuel Inlet Tube	494451
618	Spring-Choke Return	262803
634	Seal-Choke Shaft	281168
634	Washer-Throttle Shaft	281167
955	Screw-Fuel Bowl	94642
965	Locknut-Air Cleaner Mtg	94108
975	Bowl Assy-Carb	494378
987	Seal-Throttle Shaft	281166

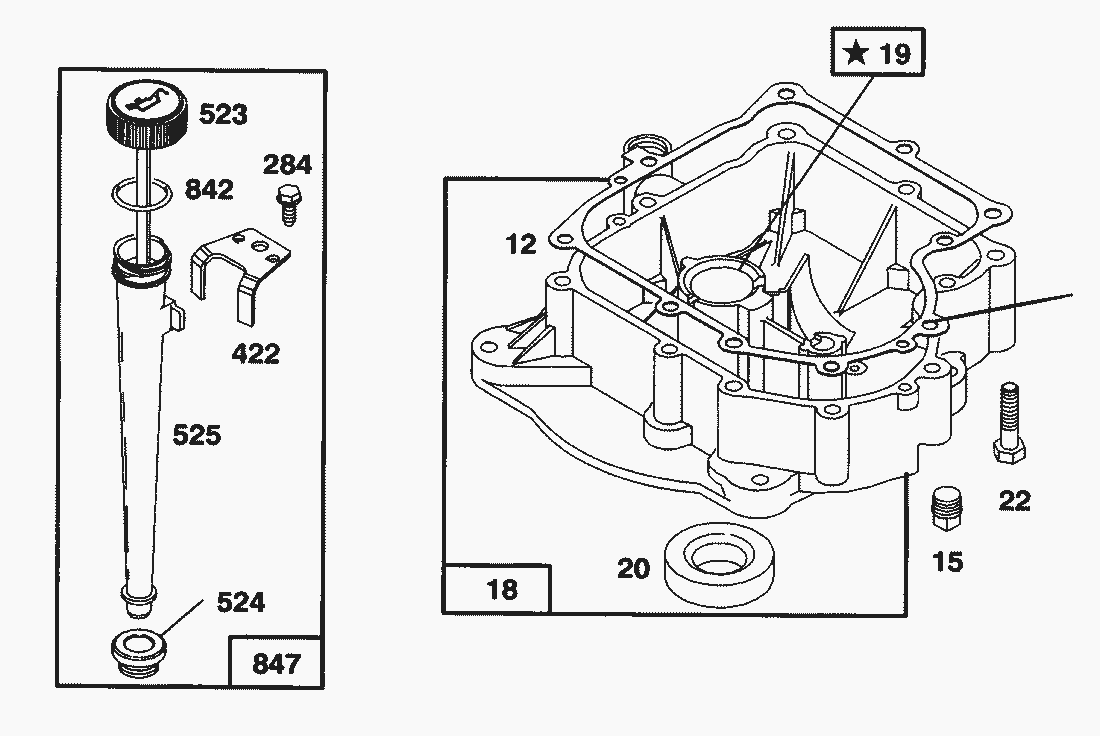

pos.	descripción	Número de pieza
	Gasket-Crankcase Cover (.005 Thick) * Included in Gasket Set-Part No. 393411.	270915
	Gasket-Crankcase Cover (.009 Thick) * Included in Gasket Set-Part No. 393411.	270916
15	Plug-Oil Drain	94239
18	Sump-Engine	391784
19	Bushing-Sump Note: Requires Special Tools For Installation.	490666
20	Seal-Oil	291675
22	Screw-Crankcase Cover Mtg. Sem	93585
284	Screw-Clamp Mtg.	94419
422	Clamp-Oil Filler Tube	223394
523	Cap and Dipstick-Oil Filler	391841
524	Seal-Filler Tube	68838
525	Tube-Oil Filler	280134
842	Seal-Oil Filler Cap	270920
847	Fill Group-Oil	392067

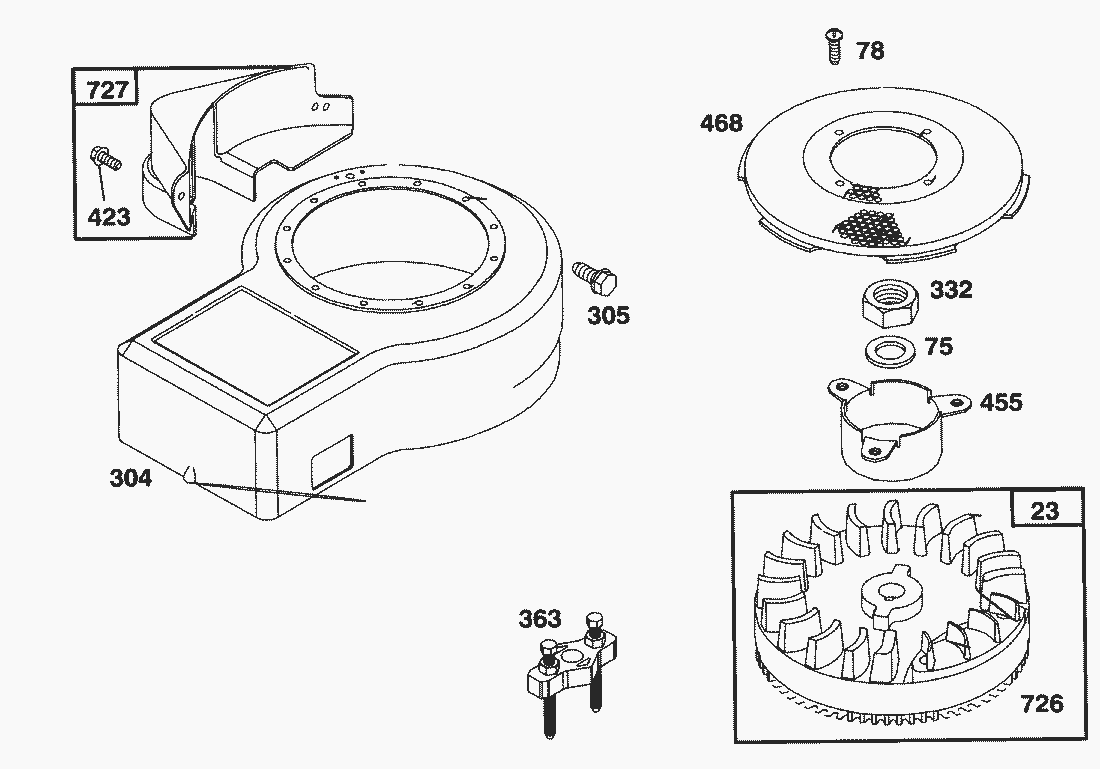

pos.	descripción	Número de pieza
23	Flywheel and Ring Gear Assy.-Magneto	391988
75	Washer-Spring	224061
78	Screw-Sem	93805
304	Housing-Blower	494087
305	Screw-Blower Housing Mtg	94608
332	Nut-Flywheel	92284
356	Wire-Ground	494328
363	Puller-Flywheel(Optional Accessory)	19203
423	Screw	94625
455	Cup-Screen Mounting	222561
468	Screen-Flush Rotating	222562
726	Gear-Flywheel Ring (Includes Mounting Parts)	392134
727	Cover-Starter (Includes Mounting Screws)	395405

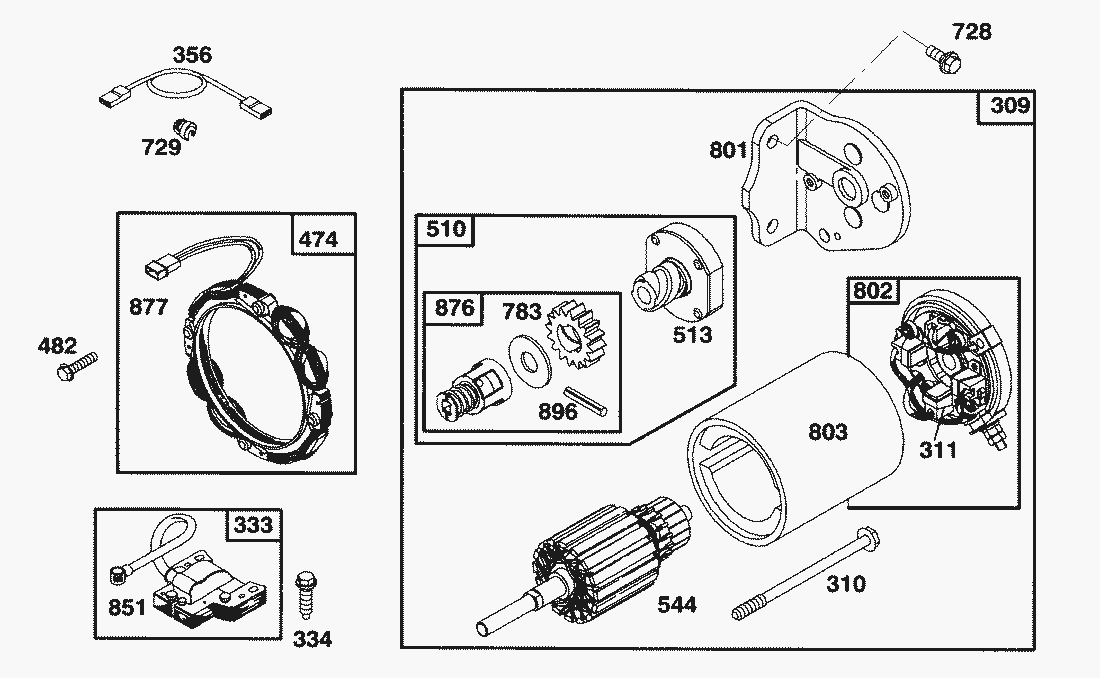

pos.	descripción	Número de pieza
309	Motor & Drive Assembly	394805
310	Bolt	94003
311	Brush Assembly	395538
333	Armature Group	398811
334	Screw, Breaker Arm Mtg. Sem	93381
474	Stator-Alternator (Dual Circuit)	393474
482	Screw-Sem	93621
510		490421
513	Clutch Assembly	398003
544	Armature Assembly	390837
728	Screw-Sem	93535
729	Clip-Relief	281159
783	Gear	280104
801	Drive End Cap Assembly	394856
802	End Cap Assy. Commutator	395537
803	Housing Assembly	398159
851	Terminal-Ignition Cable	221798
876	Retainer & Pin	490467
877	Diode and Connector Assy. (Dual Circuit)	393456
896	Roll Pin	94288
