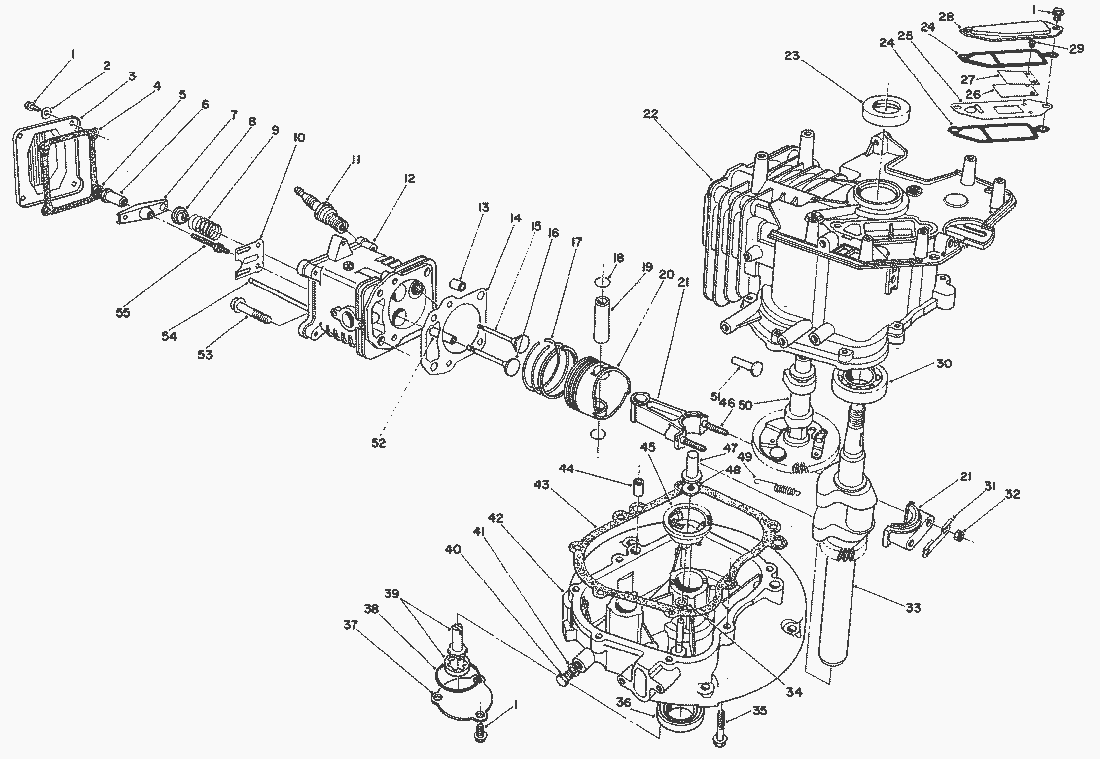

Lista de repuestos para Toro Roth / TORO Crankcase Assy. (Engine No. VMM1-7)

pos.	descripción	Número de pieza
		81-5730

pos.	descripción	Número de pieza
1	SCHRAUBE	81-1170
2	Washer	81-3790
3	Cover-Rocker Arm	81-3780
4	Gasket-Cover	81-3770
5	Nut-Jam	81-3760
6	Pivot-Rocker Arm	81-3750
7	Arm-Rocker	81-3740
8	Retainer-Valve Spring	81-3730
9	Spring-Valve	81-3720
10	Guide-Push Rod	81-3710
11	Plug-Spark	81-3250
12	Head-Cylinder (Incl. Ref.	81-5540
13	Pin-Dowel	81-3690
14	Gasket-Cylinder Head	81-4710
	Gasket Set	81-3820
15	Valve-Exhaust	81-3660
16	Valve-Intake	81-3670
17	Piston Ring Set	81-3650
18	Circlip	50-0960
19	Pin-Piston	81-3630
20	Piston	81-3620
21	Connecting Rod Assembly (Incl. Ref.	81-3390
22	Block-Engine (Incl. Ref.	81-3280
23	Seal-Upper Crankshaft	81-3290
24	Gasket-Breather	81-3300
25
26
	Reed Valve Assembly (Incl. Ref.	81-3370
27
28	Cover-Breather	81-3320
29
30	Bearing-Ball	81-3380
31	Plate-Lock	81-3400
