volver a
>
Ride-on Mowers
>
Trac
>
OHV 6
>
Trac OHV 6
>
Diamond I/C OHV
>
carburetor

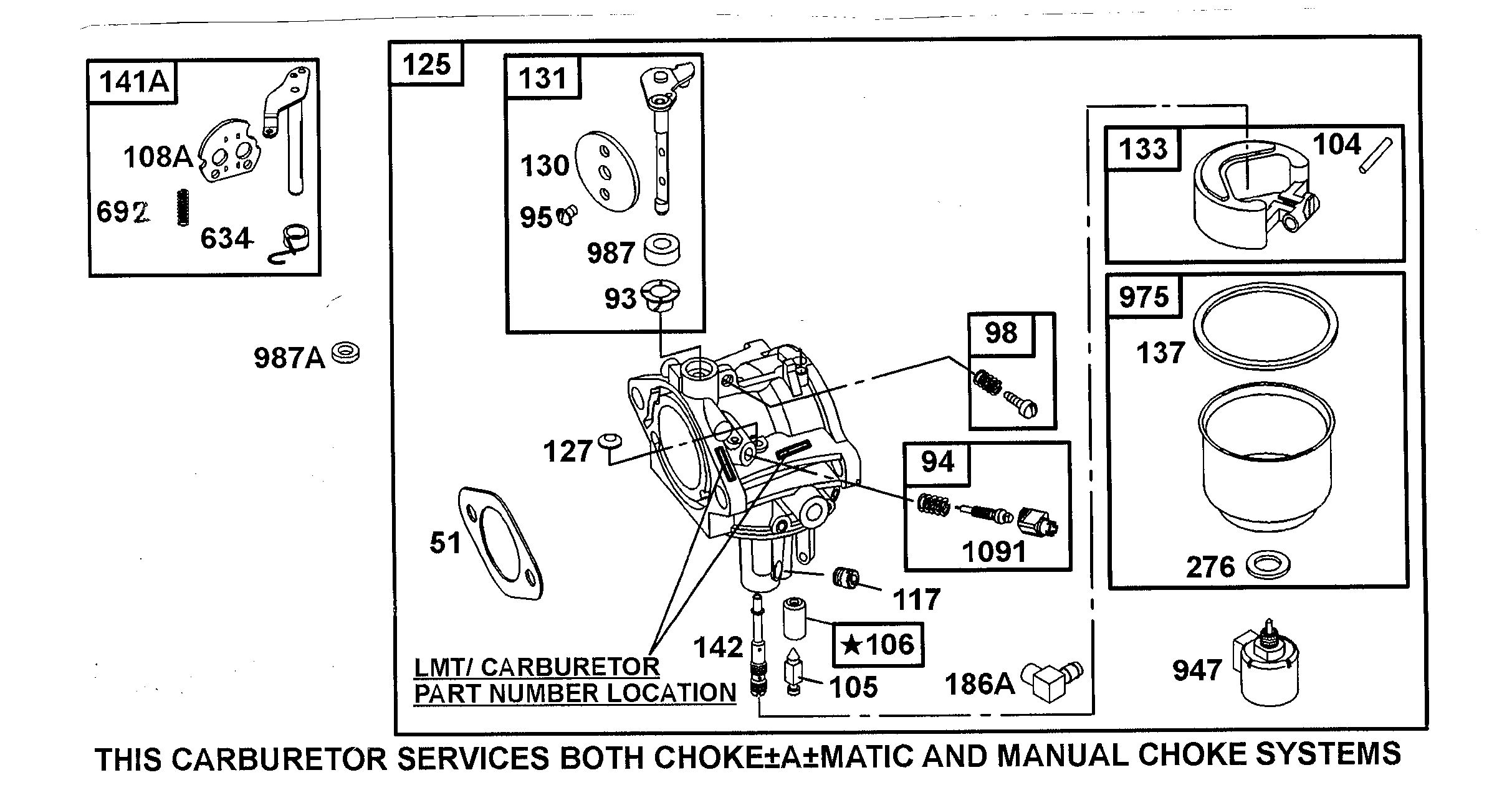

Lista de repuestos para Wolf Ride-on Mowers carburetor
pos.
descripción
Número de pieza
51
Seal
1001 313
93
Bush
1001 151
94
Kit-Idle Mixture
1001 138
95
Screw
2057 128
98
Screw
1001 135
104
Bolt
1001 147
105
Valve-Float Needle
1001 303
106
Seal
1001 302
108A
Flap Choke
1001 182
117
Nut
1001 183
125
Carburetor
1001 036
127
Insert-Grip
1001 337
130
Throttle Valve
1001 301
131
Kit-Throttle Shaft
1001 022
133
Float-Carburetor
1001 023
137
Seal
1001 317
141A
Kit-Choke Shaft
1001 030
142
Nozzle-Carburetor
1001 184
186A
Connector-Fuel
1001 131
276
Washer
1001 122
634A
Spring
1001 327
692
Spring
1001 149
947
Solenoid
1001 137
975
Bowl-Float
1001 031
987
Washer
1001 170
1091
Cap-Limiter
1001 172
