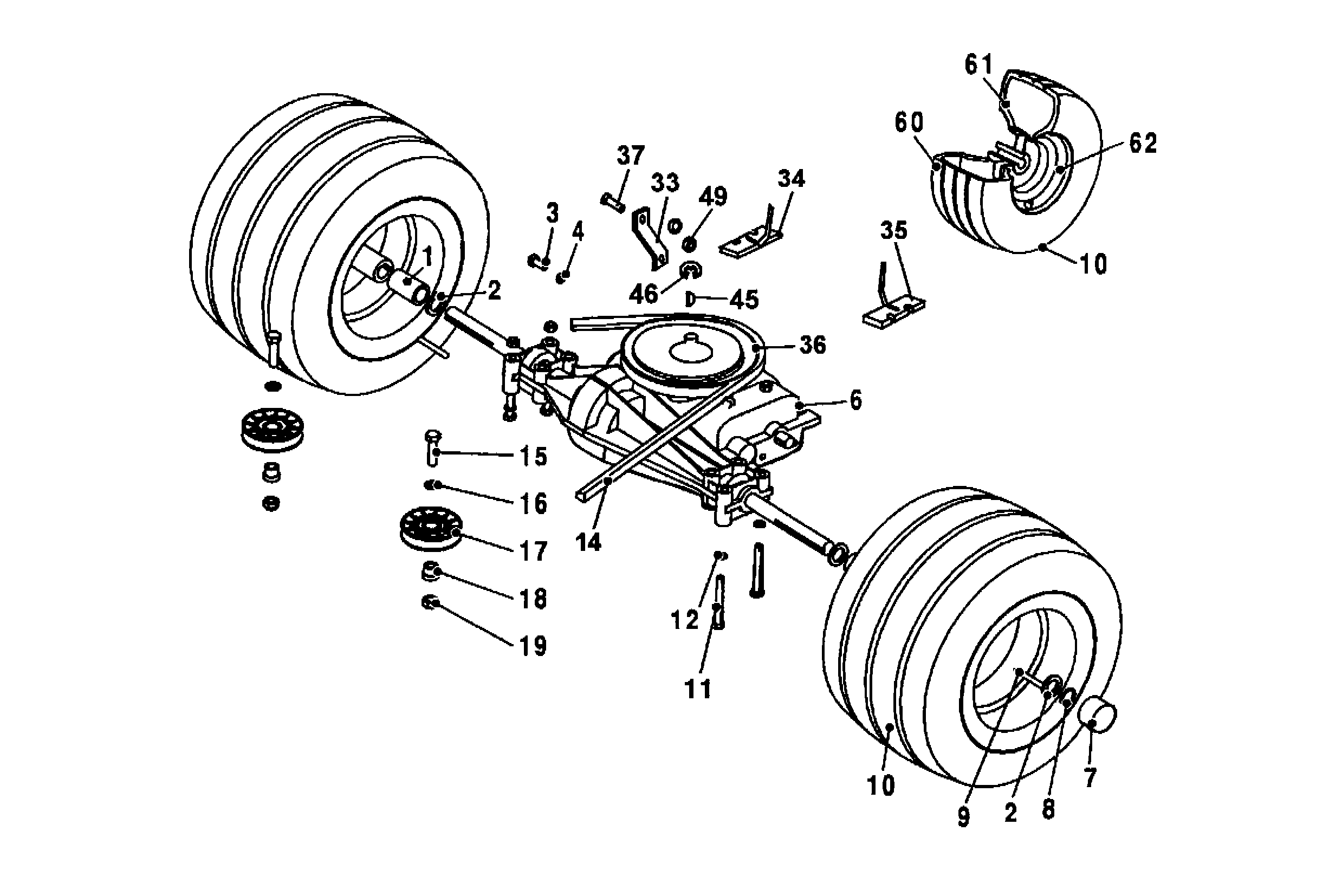

pos. | descripción | Número de pieza | |
1 | Spacer, Axle | 6200 166 |
2 | Washer | 6205 122 |
3 | Exhaust Screw 5/16-18Unc-3/4Lg | 6205 123 |
4 | Washer Spring | 0017 909 |
6 | Transmission 6 Spd | 6200 050 |
7 | Cap Black | 6205 307 |
8 | Spring Clip 15 Din 6799 | 0022 415 |
9 | Square Key 3/16X3/16X2.5 | 6205 140 |
10 | Rear Wheel K3 200491482 | 6200 041 |
11 | Hex Screw M10X75 Din 931 8.8 | 6205 575 |
12 | Washer A 8,4 Din 125 | 0017 123 |
14 | V-Belt | 6200 340 |
15 | Hex. Screw M10 X 40 Din 931 8.8 | 0010 346 |
16 | Washer 10,5-Din 125A | 0017 124 |
17 | Idler Pulley V 3000 - 3316 - Steel | 6205 171 |
18 | Bush | 6205 154 |
19 | Self-Locking Nut M10-Din 985 Cl.8 | 0016 316 |
23 | Idler Pulley F 3000 - 0750 | 6205 158 |
24 | Washer 10,5-Din 125A | 0017 124 |
25 | Self-Locking Nut M10-Din 985 Cl.8 | 0016 316 |
26 | Screw | 6205 139 |
27 | Washer Spring | 6205 136 |
29 | Engine Pulley | 6200 161 |
30 | Fixing Device | 6205 457 |
31 | Square Key 1/4X1/4X1 1/4 | 6205 135 |
33 | Stabilizer | 6200 103 |
34 | Transmission Pulley Belt Guard, Right | 6200 104 |
35 | Transmission Pulley Belt Guard, Left | 6200 105 |
36 | Transmission Pulley | 6200 168 |
37 | Hex Screw M8 X 20 Din 933 8.8 | 0010 402 |
38 | Electro-Magnetic Clutch | 6205 030 |
39 | Belt Guard, Right, Engine Pulley | 6200 106 |
40 | Belt Guard, Left, Engine Pulley | 6200 107 |
45 | Woodruff Key 9" | 6200 555 |
46 | Locking Ring 11 Din 471 | 6200 119 |
47 | Idler Arm | 6200 108 |
48 | Spring, Idler Pulley | 6200 415 |
49 | Hex. Nut | 0016 312 |
50 | Self Locking Nut M8 Din 985 Ci.8 | 0016 213 |
51 | Screw | 6200 455 |
52 | Flat washer 8.4 DIN 9021 B | 6205 568 |
60 | Tyre 18X9.50-8 | 6200 310 |
61 | Tube 18X9.50-8 | 6200 317 |
62 | Rim 18X9.50-7 | 6200 172 |
