> Ride-on Mowers > Trac > OHV 6 > Trac OHV 6 > Operation change gear

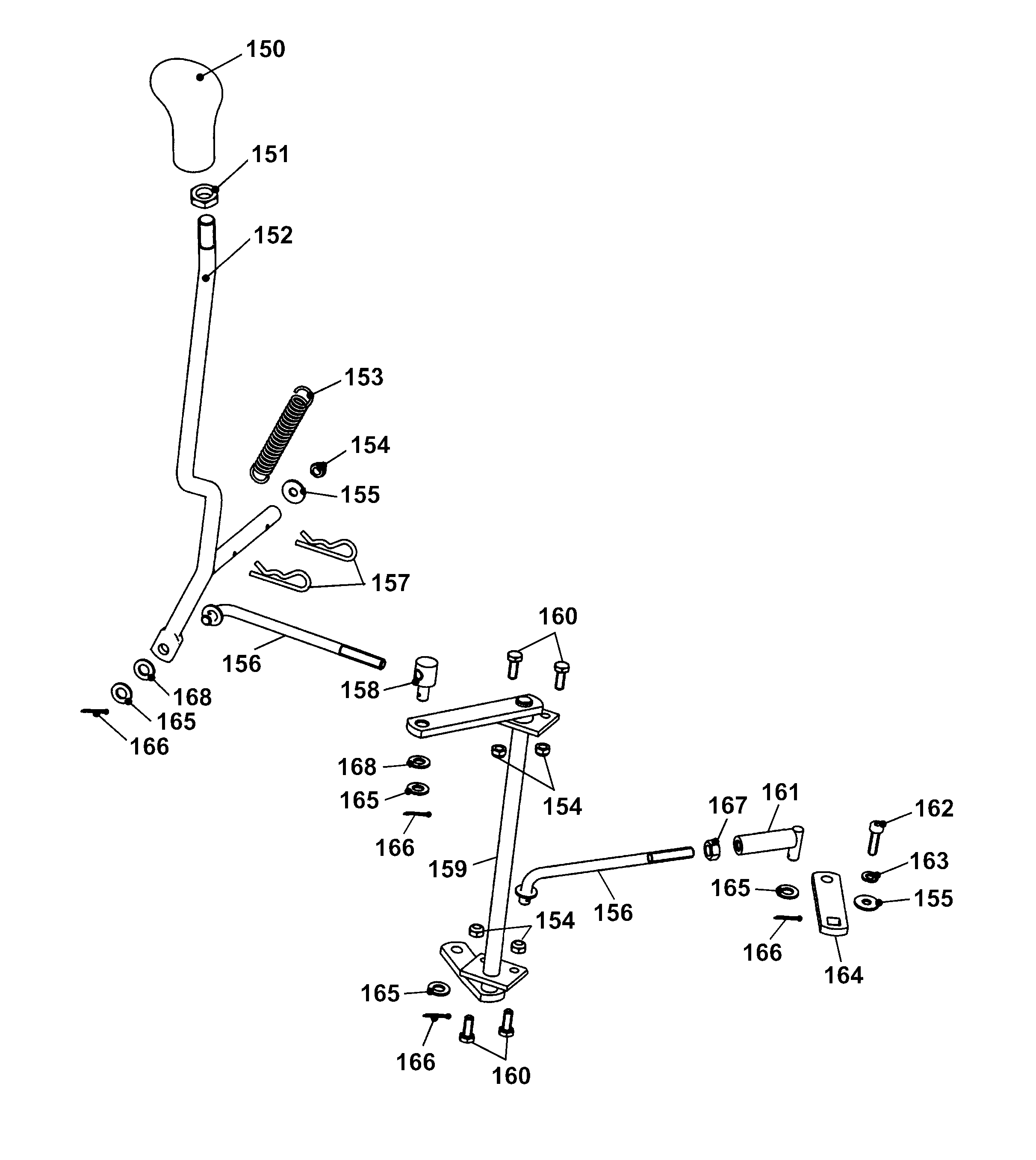

Lista de repuestos para Wolf Ride-on Mowers Operation change gear




Lista de repuestos


pos.descripciónNúmero de pieza
150Gearshift Knob6200 315
151Nut M12 Din 439B6200 121
152Gear Lever6200 113
153Tension Spring6200 417
154Nut0016 311
155Flat Washer 6.6 Zinc6205 567
156Connecting Rod, Upper6200 114
157Clip6205 120
158Bolt6200 116
159Pivot Arm Assy.6200 020
160Screw0010 400
161Link-Counterweight6200 498
162Screw 1/4"-28 Unfx7/8 Lg6200 123
163Washer Spring0017 908
164Transmission Lever6200 122
165Washer A 8,4 Din 1250017 123
166Cotter Pin 2X18 Din 946205 563
167Self Locking Nut M8 Din 985 Ci.80016 213
168Spring washer 8 DIN 137 A0017 811
