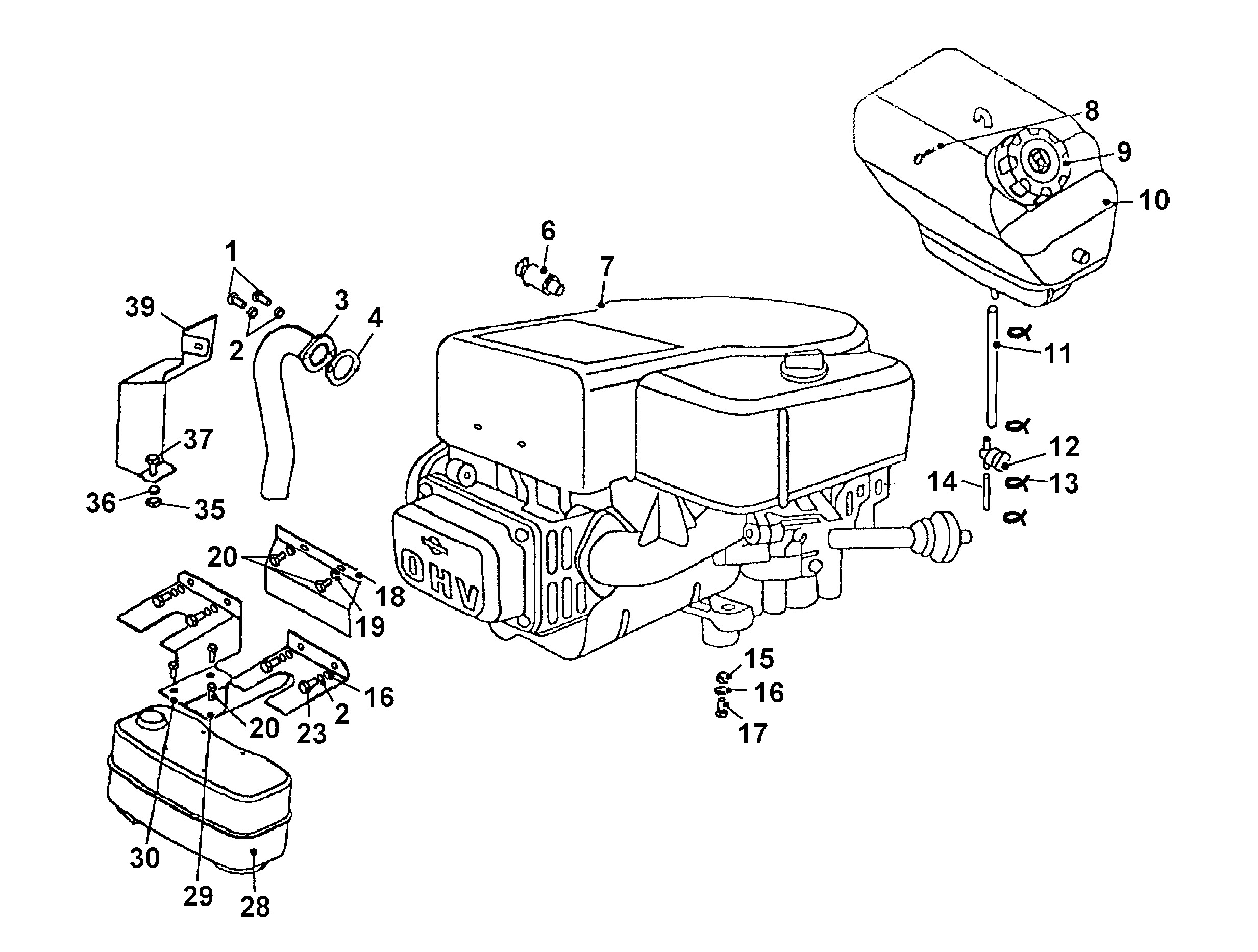

Lista de repuestos para Wolf Ride-on Mowers Engine

pos.	descripción	Número de pieza
1	Exhaust Screw 5/16-18Unc-3/4Lg	6205 123
2	Washer Spring	0017 909
3	Exhaust Tube	6200 552
4	Exhaust Gasket 15.5 Hp	6200 351
6	Oil Drain Valve 7409	6205 049
7	Engine, 15.5 Hp 28 N707-1132	1001 000
8	Clip	6205 107
9	Fuel Tank Cap	6205 323
10	Fuel Tank	6205 315
11	Fuel Line 240Mm	6200 335
12	Fuel Tank Valve	6205 143
13	Spring Clip Um 5008	6205 142
14	Fuel Line 70Mm	6200 345
15	Hex. Nut	0016 312
16	Washer A 8,4 Din 125	0017 123
17	Hex Screw M8X35 Din 933 8.8	6205 569
18	Front Cover	6200 101
19	Flat Washer 6.6 Zinc	6205 567
20	Taptite Thread Form Screw 1/4"-20 - 1/2	6205 548
23	Hex Screw M8 X 20 Din 933 8.8	0010 402
28	Muffler	6200 350
29	Muffler Guard Left	6205 486
30	Muffler Guard Right	6205 487
35	Nut	0016 211
36	Washer Spring	0017 908
37	Screw	0010 400
39	Exhaust Manifold Cover	6200 102
* 1	Fuel Tank Compl. With Cap	6205 034
* 1	Fuel Tank Compl. With Cap	6205 034
