> Mowers > Petrol > Without drive from 43 cm on > series 6 > 6.46 B > Handlebar parts

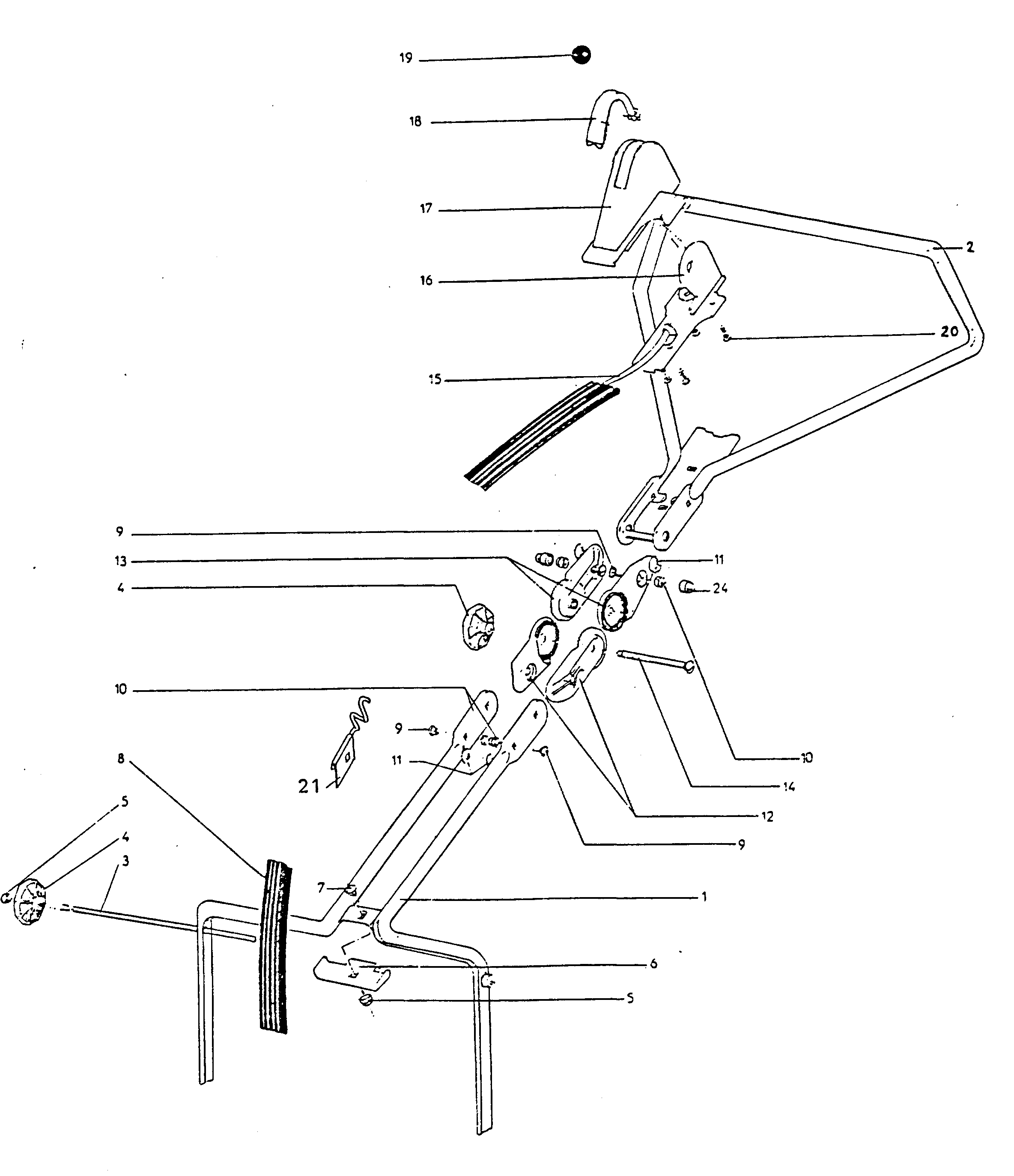

Lista de repuestos para Wolf Mowers Handlebar parts




Lista de repuestos


pos.descripciónNúmero de pieza
1Handlebar6905 011
2Upper Handlebar6912 012
3Connecting Bar6905 101
4Handwheel6905 102
5Hex. Nut0016 312
6Clamp6905 103
7Screw0013 650
8bend protection6920 105
9Screw0013 639
10Nut0016 311
11Washer0017 121
12Bracket6.51Ba6905 107
13Bracket6.51Ba6905 112
14Screw6905 110
15Bowden Wire6905 106
16Handle Insulator6905 108
17Satellit6905 109
18Cover6905 111
19Button4277104
20Screw0012 897
21Guide-Rope6925 114
24Cap6905 211
