> Mowers > Petrol > Electric start / Touch 'n Mow > Premio > Premio 40 TM > Handlebar compl.

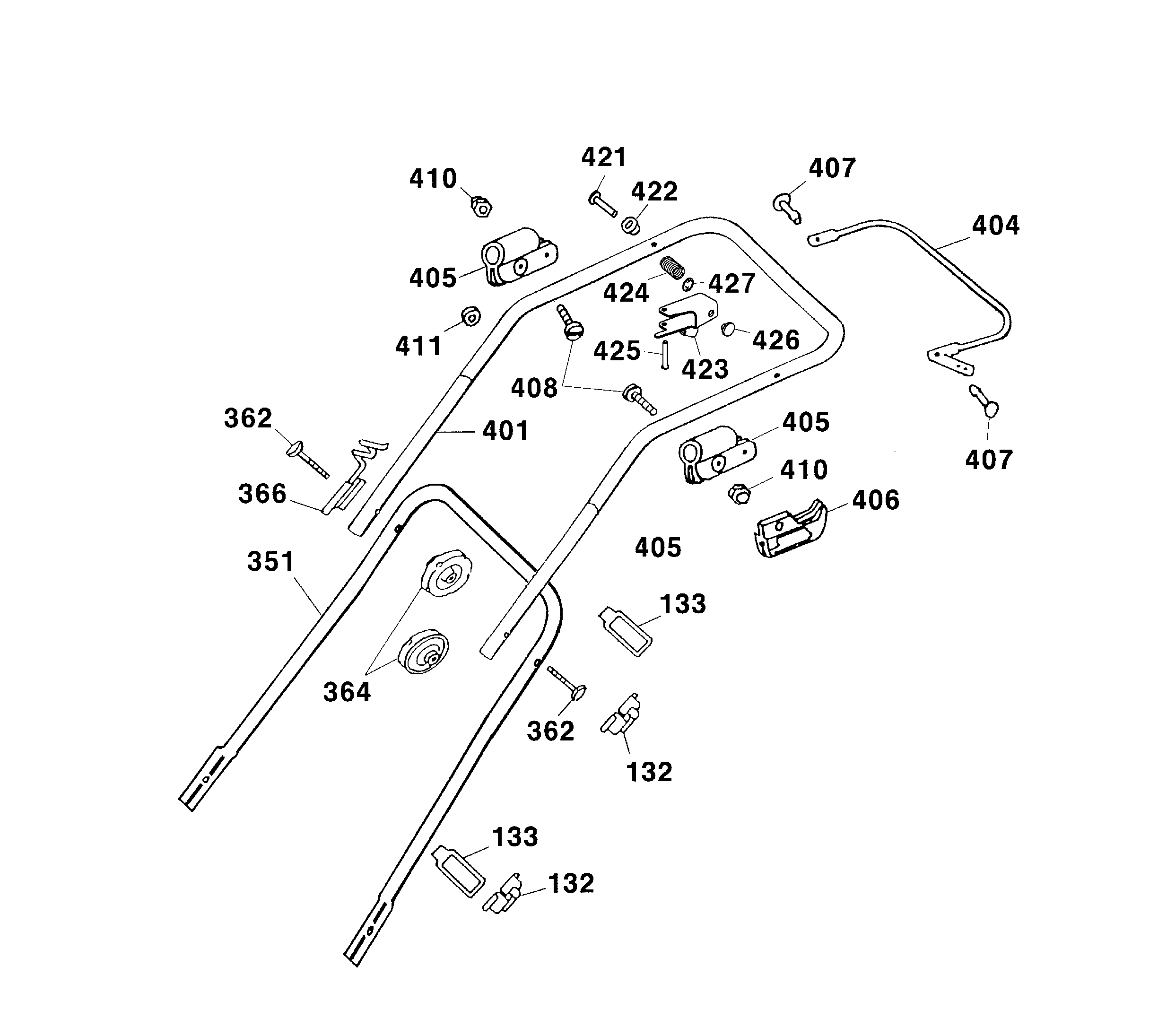

Lista de repuestos para Wolf Mowers Handlebar compl.




Lista de repuestos


pos.descripciónNúmero de pieza
132Clip6340 312
133Strap6340 314
351Lower Handlebar4011 122
362Connecting Screw4901 101
364Handwheel4936 022
366Guide-Rope6340 014
401Upper Handlebar4014 021
404Brake Lever4001 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
410Nut0016 641
411Distance Disc4240 205
421Bolt0018 109
422Axle Cap7082 503
423Lever4004 014
424Compression Spring4143 207
425Bolt0018 108
426Knob4004 305
427Speedfix Retainer0020 696
***Instruction Manual0054 341
