> Scarifiers / Aerators > Scarifiers > Electro > UV > UV 32 EV > Handlebar, Switch

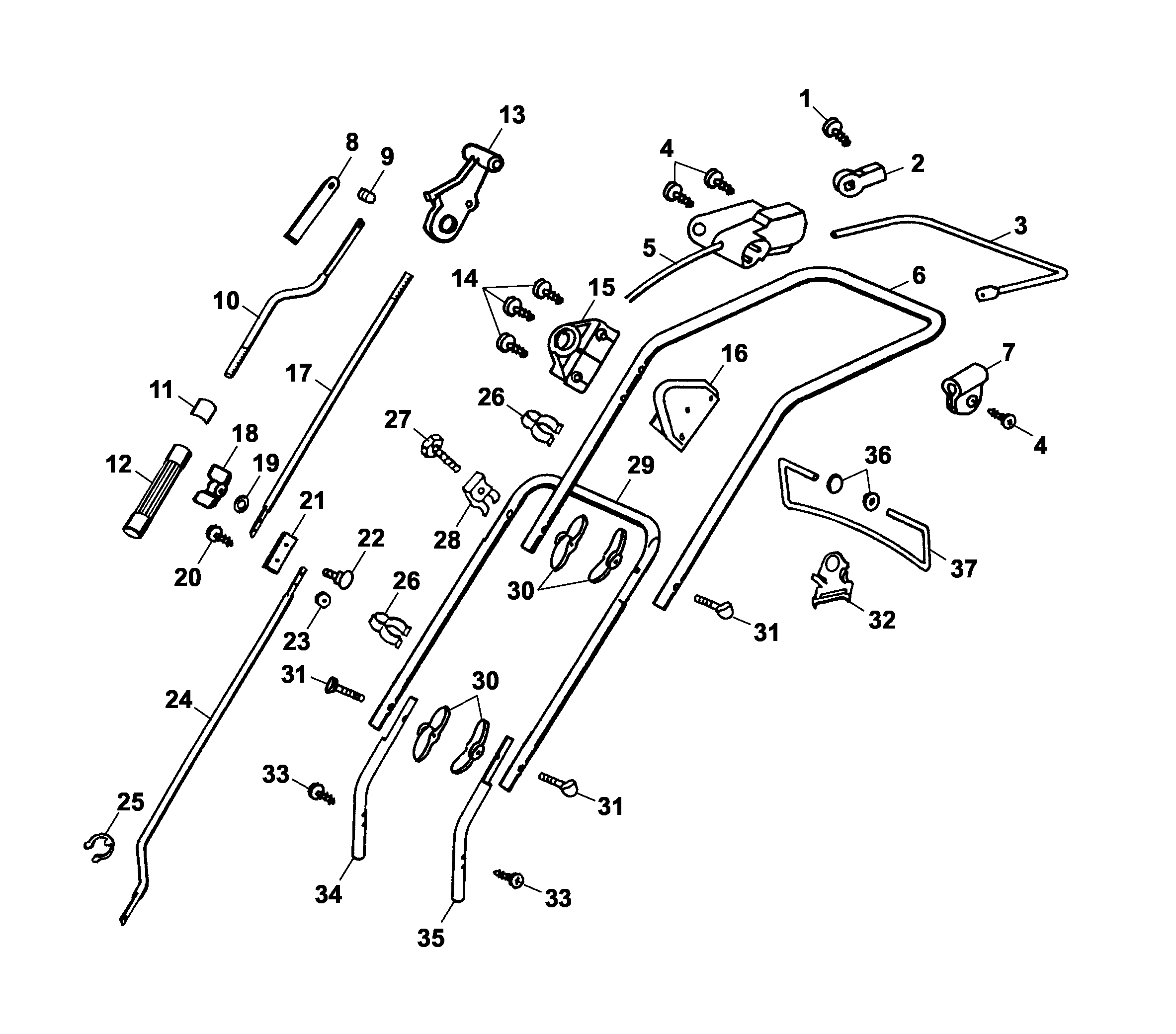

Lista de repuestos para Wolf Scarifiers / Aerators Handlebar, Switch

Lista de repuestos

pos.	descripción	Número de pieza
1	Screw	0015 820
2	Bushing	4940 105
3	Bracket Bracket	4317 014
4	Screw	0012 625
5	Switch-Key	3632 050
6	Upper Handlebar	3632 031
7	Clamp-Casing	4935 105
8	Insulator	3632 340
9	Bolt	3568 213
10	Connecting Rod, Upper	3634 146
11	Label	3638 219
12	Height Adjusting Nut	3638 311
13	Lever	3632 318
14	Screw	0012 883
15	Case, Right	3632 322
16	Case, Left	3632 323
17	Connecting Rod, Middle	3634 148
18	Wingnut	3568 308
19	Washer	0017 290
20	Screw	0012 864
21	Link-Counterweight	3638 312
22	Screw	0013 632
23	Hex. Nut	0016 310
24	Connecting Rod, Lower	3634 152
25	Circlip	0022 410
26	Cable Clamp	4950 307
27	Screw	0010 338
28	bend protection	4950 308
29	Lower Handlebar	3634 134
30	Wingnut	0016 725
31	Connecting Screw	4901 101
32	Cable Guide	4936 323
33	Screw	0015 664
34	Pipe, Right	3634 132
35	Handlebar Support, Left	3634 130
36	Clip	3585 503
37	Shackle	3585 100
***	Bag With Accessories	3632 032
***	Instruction Manual	0054 453
