> Scarifiers / Aerators > Scarifiers > Electro > UV > UV 32 EV > Chassis, Motor

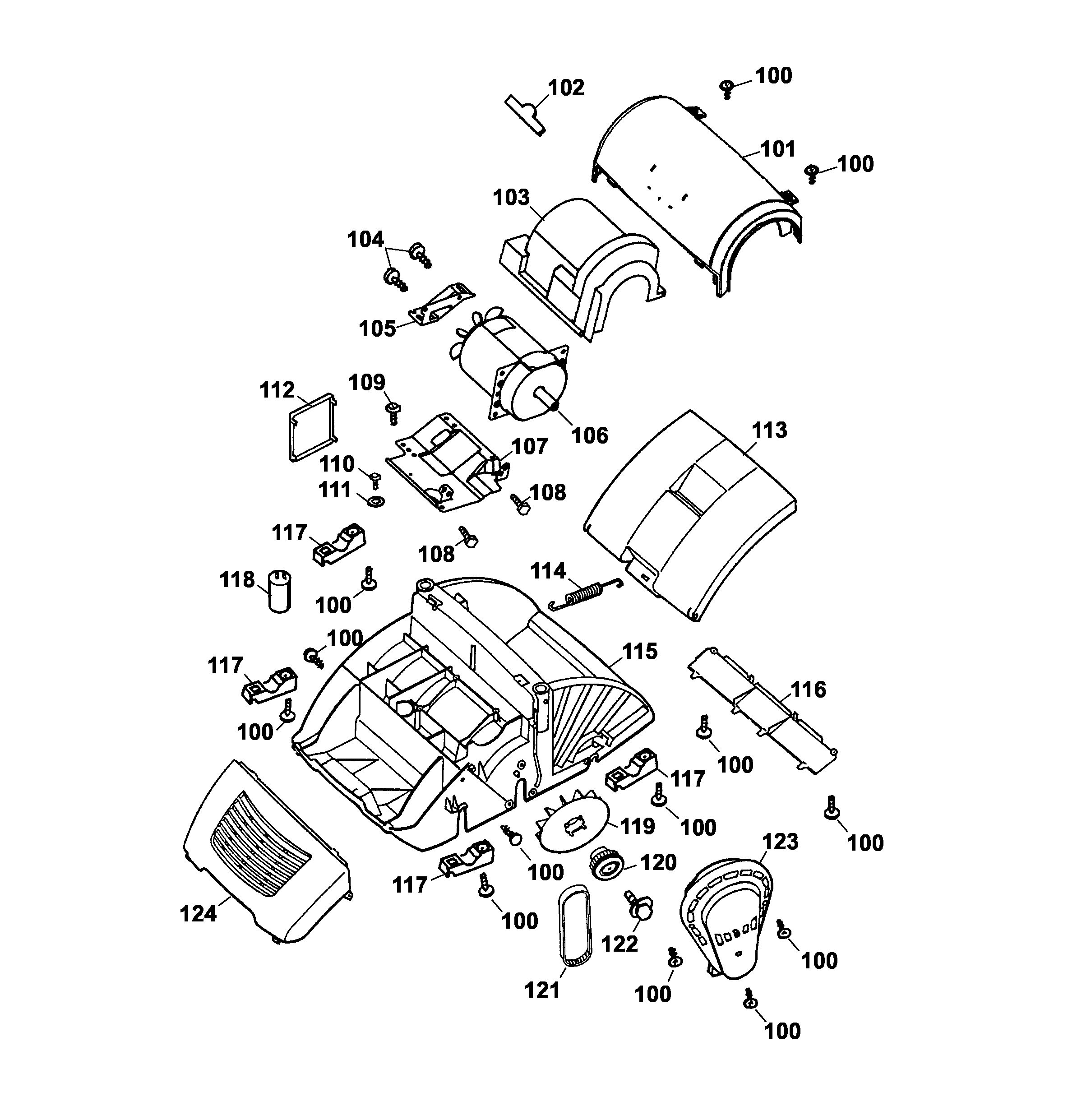

Lista de repuestos para Wolf Scarifiers / Aerators Chassis, Motor




Lista de repuestos


pos.descripciónNúmero de pieza
100Screw0012 634
101Motor Cover3634 301
102Wolf-Garten - Label0051 115
103Air Conduction3632 326
104Screw0010 893
105Motor Support3632 150
106Motor1141 082
107Motor Holder3632 148
108Screw M8X160012 617
109Screw K 60X220012 638
110Screw0015 820
111Washer0017 289
112Cover3632 307
113Rear Flap3632 363
114Spring3632 100
115Chassis3632 380
116Cover3632 315
117Front Support Shell4961 312
118Condenser1133 030
119Aerator3632 305
120Crowm Gear3632 035
121Toothed Belt0039 007
122Screw0010 403
123Cover For Toothed Belt3632 304
124Cap3632 302
