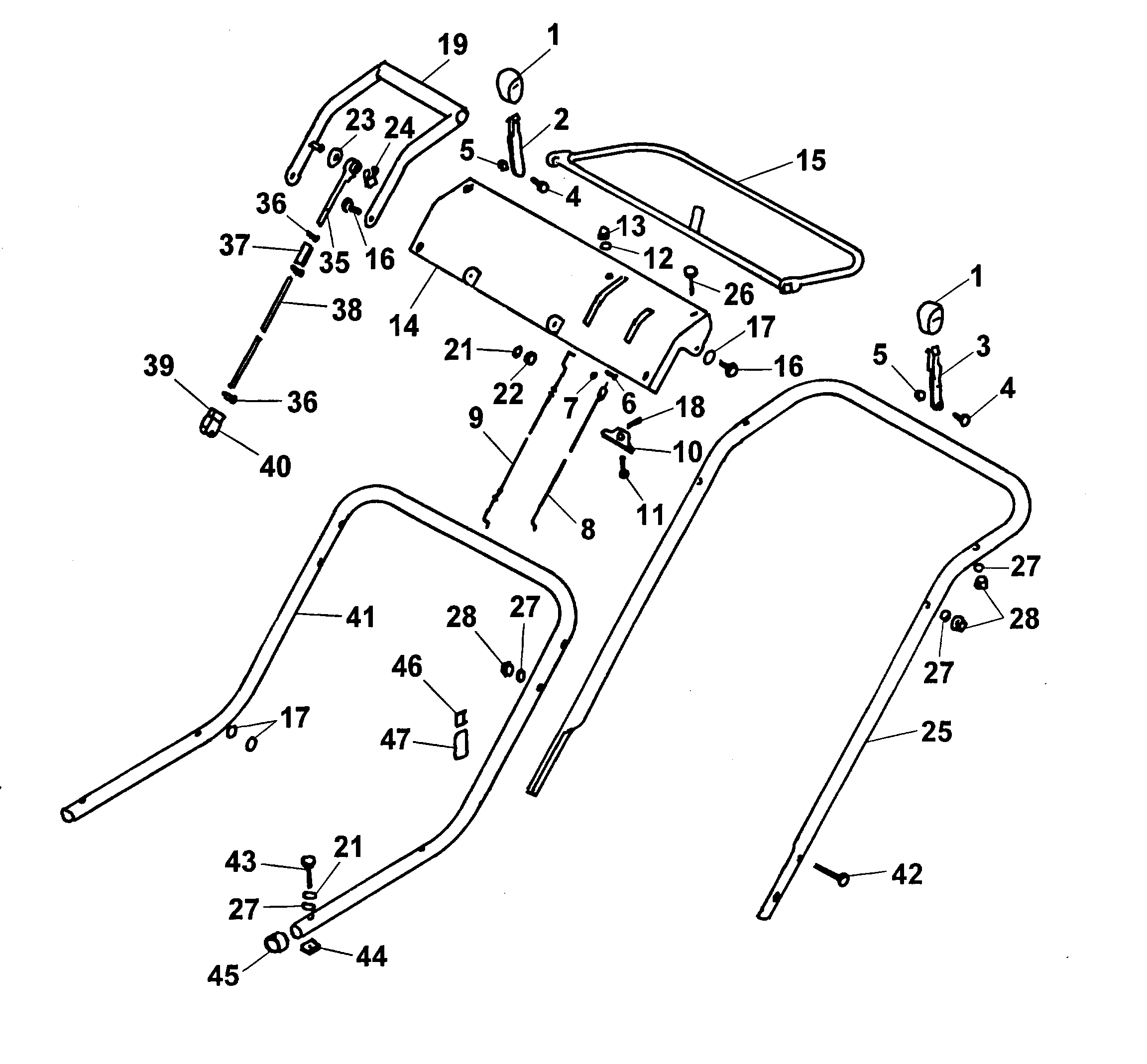

Lista de repuestos para Wolf Scarifiers / Aerators Handlebar, Shift parts

pos.	descripción	Número de pieza
1	Button	4180 115
2	Lever	3589 032
3	Throttle Lever	4180 027
4	Screw	0012 246
5	Hex. Nut	0016 310
6	Nut	0016 211
7	Ring	0020 651
8	Bowden Wire Motor	3589 525
9	Bowden Wire Coupler	3589 054
10	Lever	3589 029
11	Threaded Bolt	4270 501
12	Washer Spring	0017 908
13	Nut	0016 641
14	Tie-Bar	3589 027
15	Bracket Bracket	3589 030
16	Screw For Uvpho	0012 562
17	Washer 10,5-Din 125A	0017 124
18	Tension Spring	4338 212
19	Lever	3589 028
21	Washer spring	0017 910
22	Self Locking Nut M8 Din 985 Ci.8	0016 213
23	Washer 10.5 Din 7349	0017 485
24	Circlip	0020 980
25	Upper Handlebar	3589 100
26	Screw	0013 522
27	Hollow Disk	0017 275
28	Hex. Nut	0016 312
***	Console with upper handlebar	3589 058
17	Washer 10,5-Din 125A	0017 124
35	Screw	0013 037
36	Hex Nut M10 Din 934 Cl.8	0016 214
37	Nut	3589 116
38	Rod	3589 115
39	Fork Head	0016 490
40	Bolt	0016 491
***	Adjusting rod compl.	3589 057
21	Washer spring	0017 910
27	Hollow Disk	0017 275
28	Hex. Nut	0016 312
41	Lower Handlebar	3589 101
42	Screw	0013 524
43	Screw M8X45-Din 931 8.8	0010 334
44	Friction disk	3589 209
45	Sleeve	3589 102
46	Clip	4191 108
47	Strap	4191 109
