> Ride-on Mowers > Trac > OHV 7 > Trac OHV 7 > Grass collector assembly

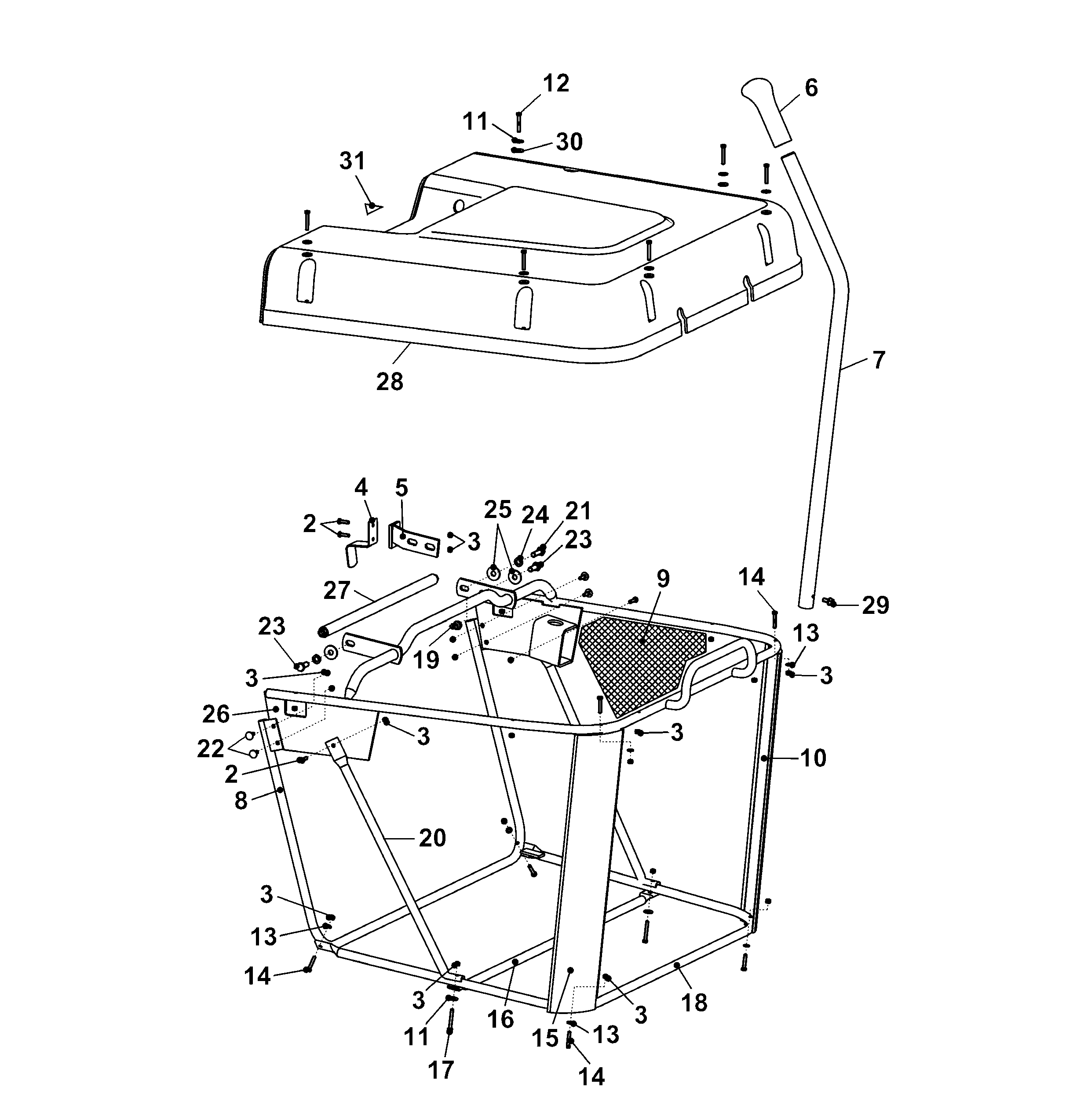

Lista de repuestos para Wolf Ride-on Mowers Grass collector assembly




Lista de repuestos


pos.descripciónNúmero de pieza
1Grass Collector Assy6200 015
2Screw0010 363
3Hex. Nut0016 310
4Washer Spring6205 469
5Washer Spring6200 469
6Handle Grip, Dump Lever6205 314
7Dumping Lever6205 479
8Front Frame Assy6205 462
9Grass Catcher Cloth6205 334
10Right Corner Support6205 104
11Flat Washer 5.3 Din 9021 B0017 287
12Hex Screw M5X30-Din 933 8.86200 133
13Washer0017 120
14Hex Screw M 5X250010 360
15Left Corner Support6205 105
16Tie-Bar6205 106
17Hex Screw M 5X356205 565
18Lower Frame6205 520
19Hex. Nut0016 312
20Brace K3 000260486200 132
21Hex Screw M8X25-Din 933 8.80010 125
22Screw0013 631
23Hex Screw M8 X 20 Din 933 8.80010 402
24Washer Spring0017 909
25Flat washer 8.4 DIN 9021 B6205 568
26Top Frame Assy6200 016
27Carrying Handle6205 464
28Grass Collector Cover6200 333
29Taptite Thread Form Screw 1/4"-20 - 1/26205 548
30Rubber Washer 5,36205 327
31Label6205 205
