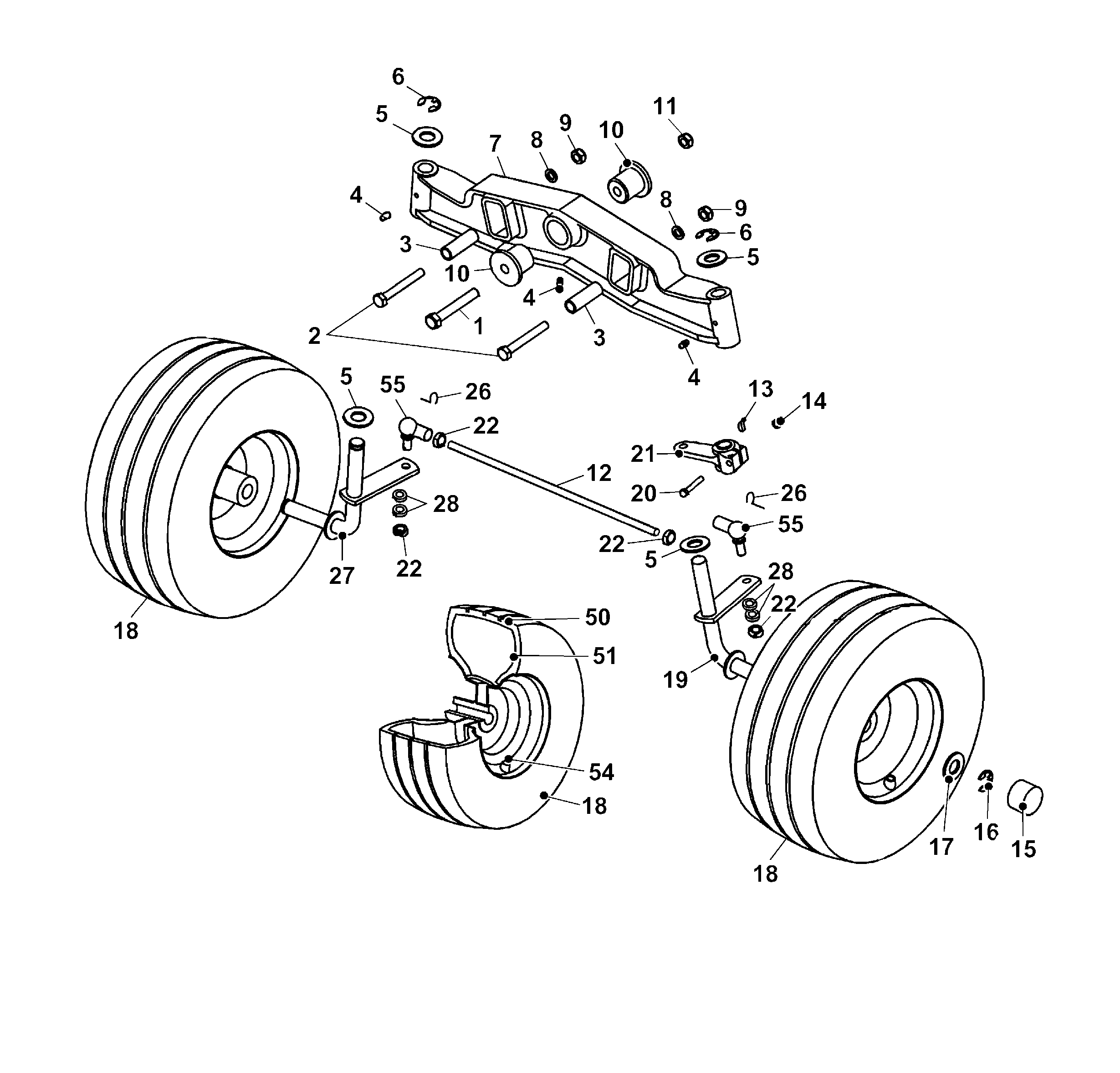

Lista de repuestos para Wolf Ride-on Mowers Front axle

pos.	descripción	Número de pieza
1	Hex Screw M12X90 Din 931 8.8	6205 580
2	Hex Screw M10X75 Din 931 8.8	6200 128
3	Distance Bush	6205 153
4	Lubricating Nipple	6205 144
5	Flat Washer 19 Din 125 A	0017 128
6	Spring Clip 15 Din 6799	0022 415
7	Front Axle	6205 121
8	Washer 10,5-Din 125A	0017 124
9	Self-Locking Nut M10-Din 985 Cl.8	0016 316
10	Bush	6205 170
11	Self-Locking Nut M12 Din 982 Cl.8	6205 564
12	Track Rod Assembly	6205 116
13	Square Key 5X7.5 Din 6888	6205 555
14	Nut	0016 311
15	Cap Black	6205 307
16	Spring Clip 15 Din 6799	0022 415
17	Washer	6205 122
18	Front Tyre Wheel Assy 16/650X8	6205 040
19	Axle Left	6205 461
20	Hex Screw M6X45 Din 931 8.8	0010 313
21	Steering Spindle Lever For Y2K	6205 508
22	Hex Nut M10 Din 934 Cl.8	0016 214
26	Locking Stirrups 16 Din 71805 S	6205 559
27	Axle Right	6205 460
50	Tyre 16X6.508	6205 313
51	Tube 16X6.508	6205 309
54	Air Valve	6205 051
55	Ball Angle Joint 16 - Complete	6205 021
