520 xi
>
520/73570
>
200000001
>

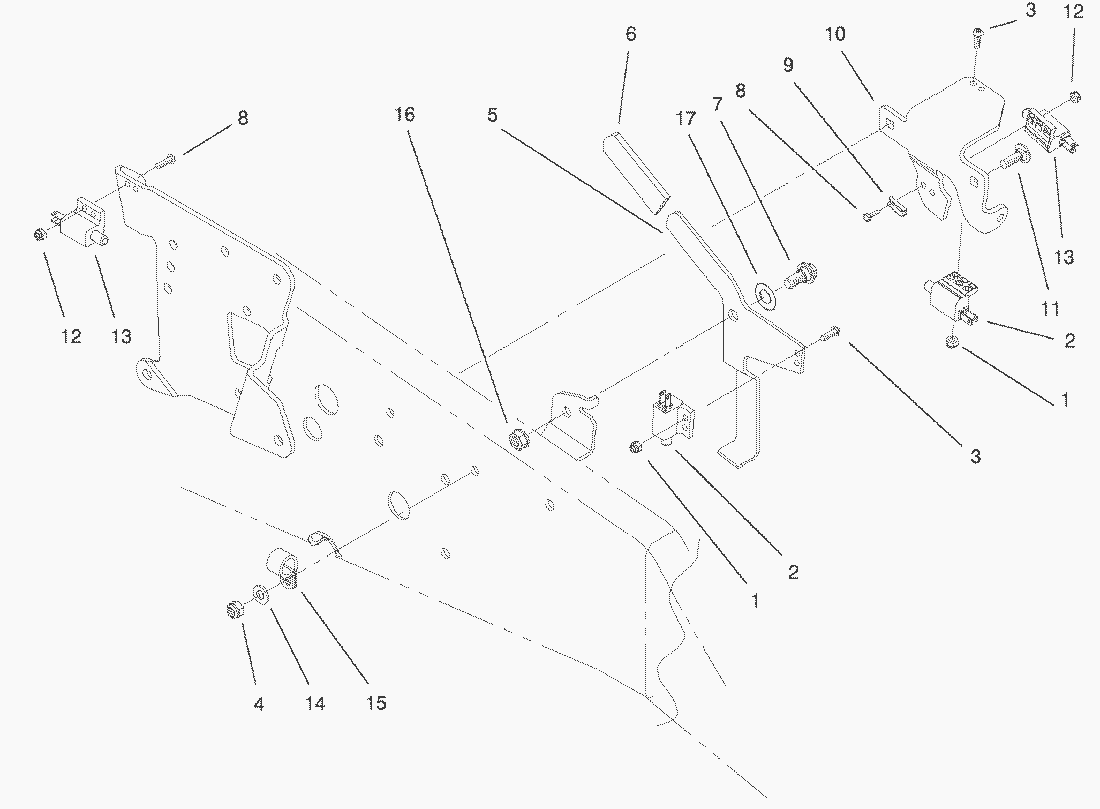

Upper Parking Brake Assy.
Lista de repuestos para Toro Roth / TORO Upper Parking Brake Assy.
pos.
descripción
Número de pieza
1
Nut
3296-2
2
Switch-Single Pole (Only On: 73470)
65-7410
3
Screw-HSH (Only On: 73470)
3274-14
4
MUTTER
3296-29
5
Latch-Parking Brake
94-2157-03
6
Grip
102597
7
Bolt-Shoulder
94-7582
8
Screw
99-8128
9
Retainer-Screw
94-7905
10
Bracket-Switch
94-7562-03
11
Carriage Bolt
3230-16
12
Locknut
3296-1
13
Switch-Single Pole
95-1653
14
Washer
3256-23
15
Clamp-R
98-2358
16
Nut-Lock
108881
17
Washer-Power Steering
98-3087
