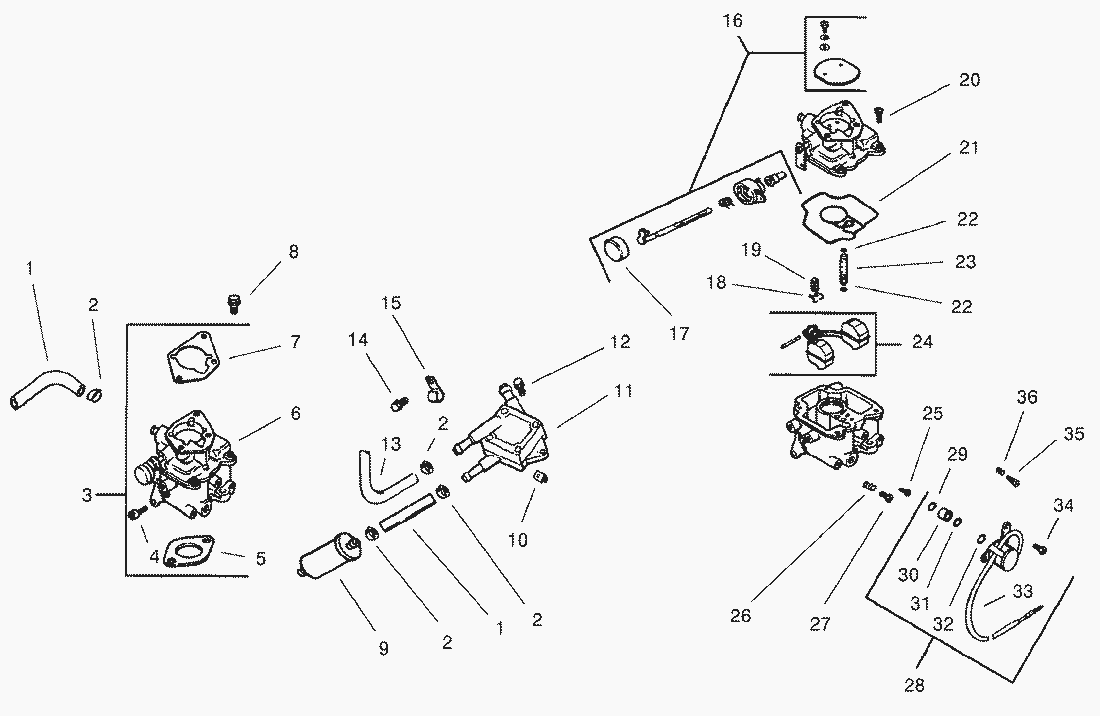

| pos. | descripción | Número de pieza | |
| 1 | Line, fuel 9 * Obtain Parts From Your Local Kohler Dealerðà Kohler Engine #CH18S-62579 | 25 353 10 |
| 2 | Clamp-Hose | X-426-9 |
| 3 | Kit, carburetor w/gasket (Includes 4-7) | 24 853 35 |
| 4 | Screw, throttle stop | 24 086 05 |
| 5 | Gasket, air cleaner base | 24 041 06 |
| 6 | Carburetor assembly (Includes 16-36, carburetor repair kit 24 757 03) | 24 053 32 |
| 7 | Gasket, carburetor | 24 041 17 |
| 8 | Screw M6x1.0x30 (Only On: 72103, 72083) | M-0651030 |
| 9 | Filter, fuel | 24 050 02 |
| 10 | Nut-Plastic (Only On: 72103, 72083) | 24 100 01 |
| 11 | Pump-Fuel (Only On: 72103, 72083) | 24 393 04 |
| 12 | Screw-Cable Clip (Only On: 72103, 72083) | 24 086 12 |
| 13 | Line, fuel 17 * Obtain Parts From Your Local Kohler Dealerðà Kohler Engine #CH18S-62579 | 24 353 04 |
| 14 | Screw, hex. flange | M-0650012 |
| 15 | Clip-Cable (Only On: 72103,72083) | 47 154 01 |
| 16 | Kit, choke repair (Includes 17) | 24 757 07 |
| 17 | Cap, choke lever | 24 173 02 |
| 18 | Clip, inlet needle valve | 24 154 01 |
| 19 | Valve, inlet needle | 24 462 01 |
| 20 | Screw, carburetor body | 24 086 09 |
| 21 | Gasket, carburetor body | 24 041 09 |
| 22 | O-Ring, slow jet | 24 153 02 |
| 23 | Jet, slow | 24 337 01 |
| 24 | Kit, float repair | 24 757 02 |
| 25 | Jet, main | 24 337 02 |
| 26 | Spring, idle adjust screw | 24 089 10 |
| 27 | Screw, idle adjusting | 24 086 10 |
| 28 | Kit, solenoid (Includes 29-34) | 24 757 01 |
| 29 | O-Ring | 24 153 06 |
| 30 | Seat, solenoid | 24 521 01 |
| 31 | O-Ring | 24 153 05 |
| 32 | O-Ring | 24 153 04 |
| 33 | Solenoid | 24 435 01 |
| 34 | Screw, solenoid | 24 086 07 |
| 35 | Needle, idle | 24 368 01 |
| 36 | Spring, idle needle | 24 089 11 |
| Kit, carburetor repair | 24 757 03 |
