> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 493/20789 > 200000001 > Starter Assy. Engine GTS 200 (only on: 20789)

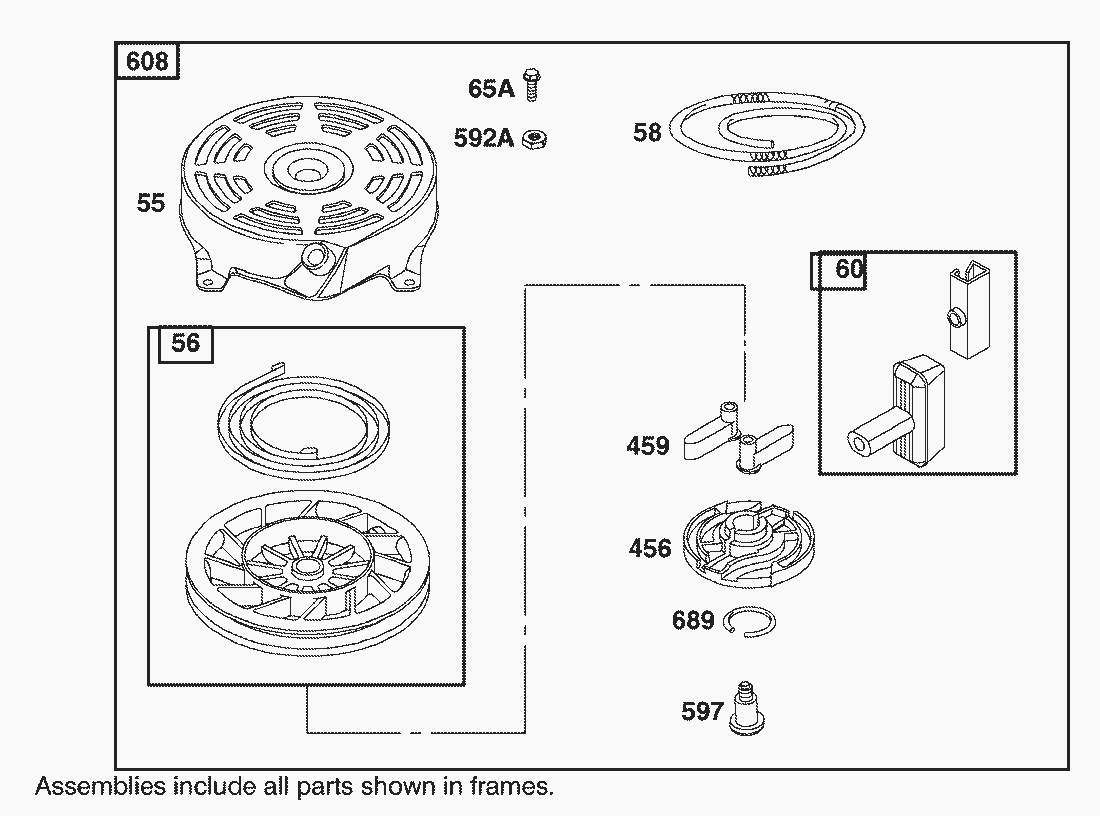

Lista de repuestos para Toro Roth / TORO Starter Assy. Engine GTS 200 (only on: 20789)




Lista de repuestos


pos.descripciónNúmero de pieza
55Housing-Rewind Starter99-1048
56Pulley-Rewind Starter94-1657
58Rope-Starter (Cut To Suit)94-1668
60Grip-Starter Rope77-8510
65Screw-Hex.99-1002
456Retainer-Rewind Starter94-1659
459Pawl-Starter94-1654
592Nut-Hex.99-1009
597Screw-Rewind Starter94-1660
608Starter-Rewind98-9215
689Spring-Torsion94-1655
