> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 493/20789 > 200000001 > Engine and Blade Assy.

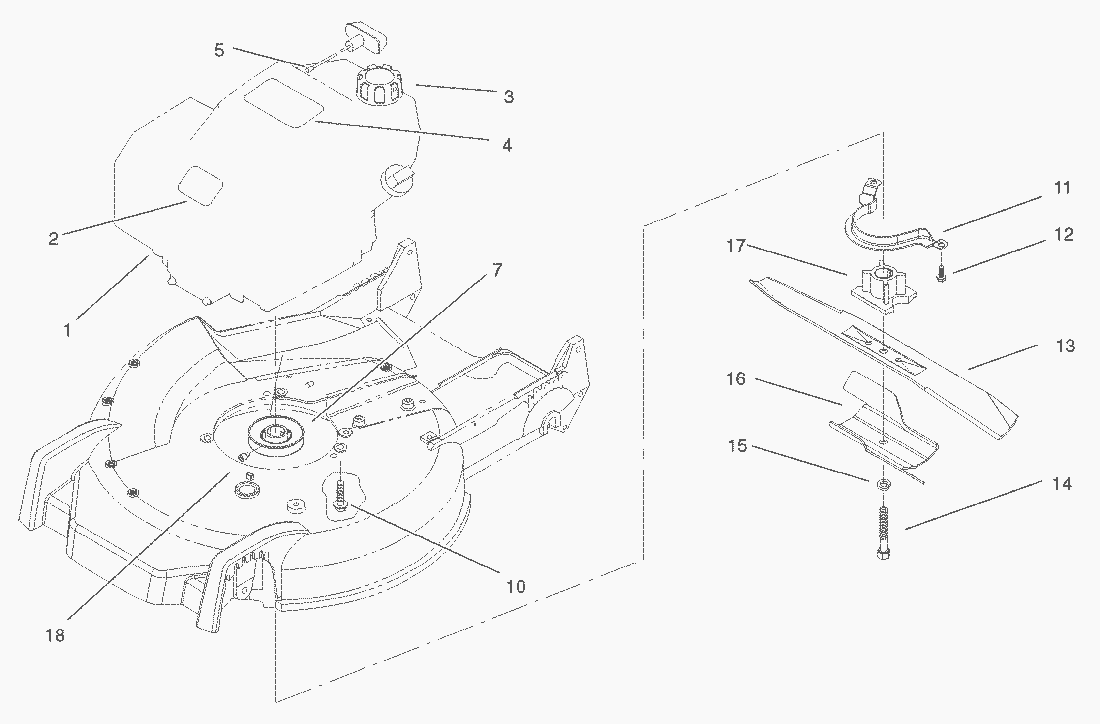

Lista de repuestos para Toro Roth / TORO Engine and Blade Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1
2Plate-TORO Logo92-2289
3Cap-Gas93-7198
4Decal-Engine100-5951
5SEILANSCHLAG2210-316
7Pulley ASM100-1102
10Bolt-Engine32144-102
11Guide-Belt99-1526-03
12Self Tapping Screw32144-70
13Blade-Generation93-4106
14Screw-Blade95-1748
15Washer-Lock3253-22
16Accelerator-Blade94-1608-03
17Retainer-Blade100-1100
18Screw-Set613227
