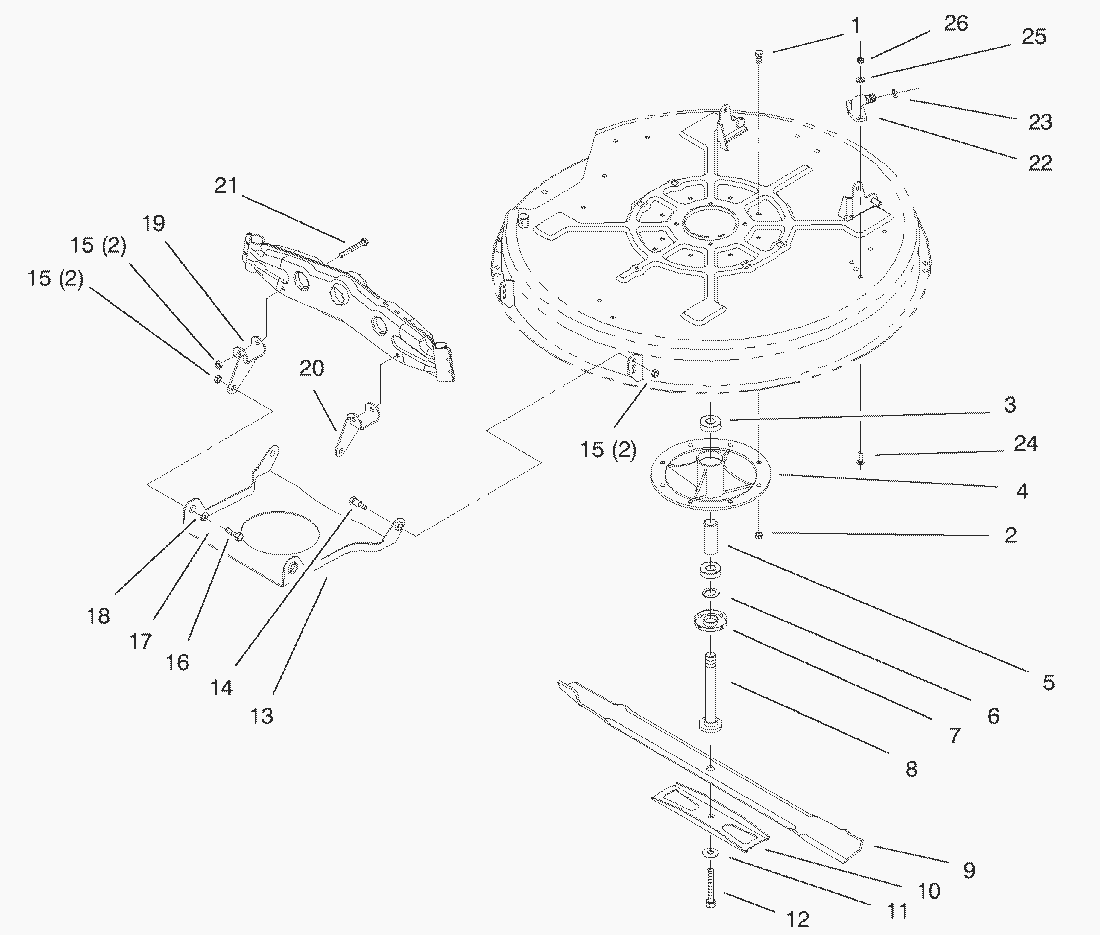

Lista de repuestos para Toro Roth / TORO Spindle & Blade Assy.

pos.	descripción	Número de pieza
		33-4750

pos.	descripción	Número de pieza
1	Capscrew	322-3
2	MUTTER	3296-29
3	Bearing-Spindle	251-297
4	Housing-Spindle	56-7030
5	Spacer-Bearing	83-7020
6	Spacer-Hardened	80-4390
7	Shield-Bearing	80-4370
8	Shaft-Spindle	80-4350
9	Blade-Recycler	80-4430
10	Stiffener-Blade	80-4570-03
11	Washer-Belleville	3290-465
12	Screw-Blade	26-0671
13	Pan-Frt Deck Susp (32)	88-4940-03
14	Bolt-Shoulder	28-0540
15	MUTTER	3296-29
16	Capscrew	322-6
17	Cam	106661
18	Washer	3256-23
19	Bracket Wa-RH	88-5640-03
20	Bracket Wa-LH	88-5650-03
21	Screw-Cap Hex. Hd.	322-12
22	Fitting-Washout (Model No. 22045 Only)	95-2747
23	O-Ring-Seal (Model No. 22045 Only)	46-6290
24	Carriage Bolt	3229-1
25	Washer-Plain	3256-1
26	Locknut	3296-16
