volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
12-32 XL
>
390/71201
>
7900001
>

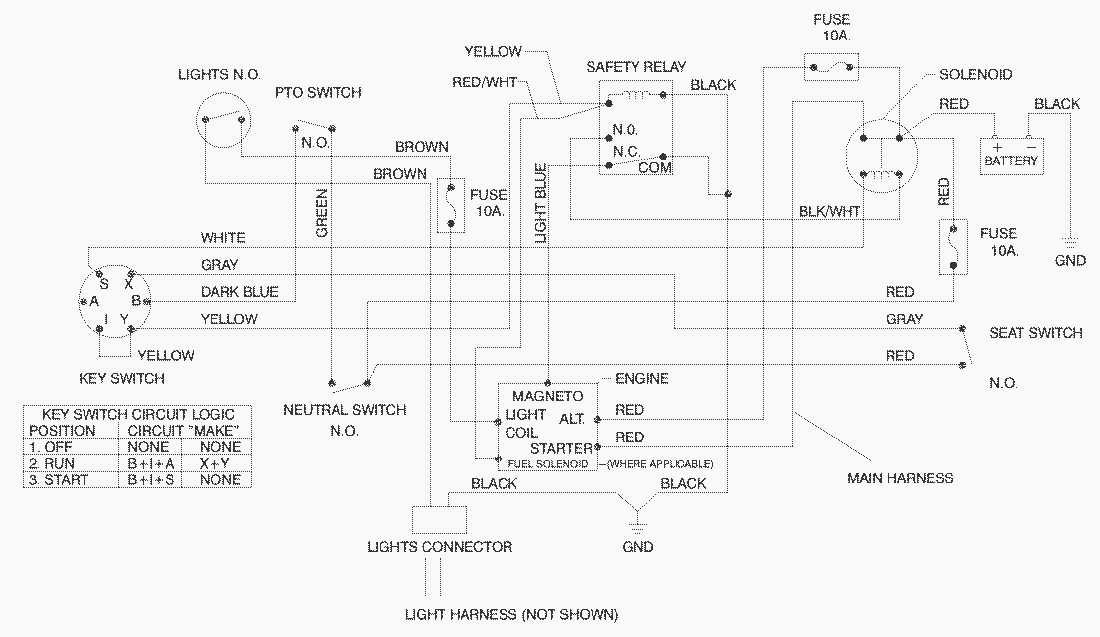

Electrical Schematic
Lista de repuestos para Toro Roth / TORO Electrical Schematic
pos.
descripción
Número de pieza
1
MUTTER
3296-29
2
Capscrew
322-9
3
Guide-Belt L.H.
88-6060
4
Anchor-Belt Guide
76-3820
5
Guide-Belt R.H.
88-5490
6
Muffler
88-6480
7
Capscrew
321-4
8
Lockwasher
3253-3
9
Decal-Engine 12 H.P. (Model No. 71200 Only)
92-2482
10
Engine-12 Hp B&s I/C (Only On: 71201)
88-3820
10
Engine-12hp B&s STD (Only On: 71188)
92-8755
