Roth / TORO
>
Hand operated
>
Vac/Blower
>
4-stroke
>
911/62924
>
6900001
>
Snout Assy.

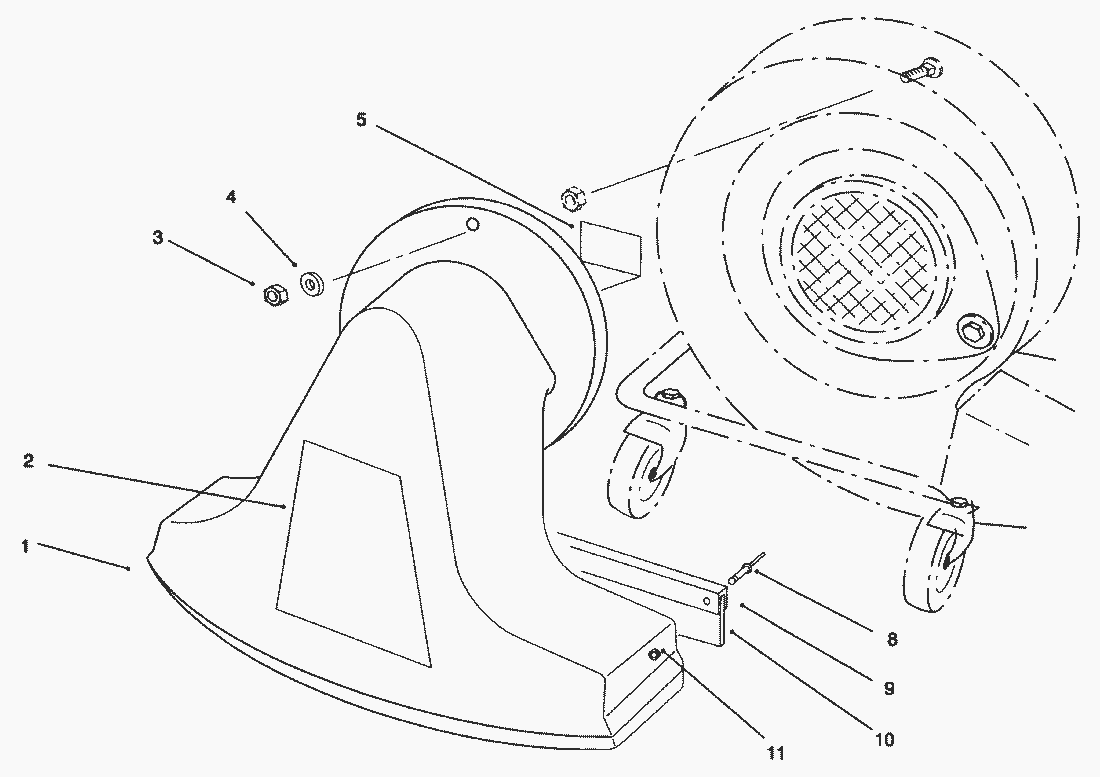

Lista de repuestos para Toro Roth / TORO Snout Assy.
pos.
descripción
Número de pieza
1
Snout Assembly (Incl. Ref.
40-7000
2
Decal-Toro Vacuum
67-7720
3
Nut-Flange Lock
3296-58
4
Washer
3-3391
5
Decal-Caution
93-4139
8
Pop Rivet
3290-417
9
Flap Clamp
20-6840
10
Rubber Flap
20-6830
11
Washer
3256-51
