volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
265 H
>
504/72064
>
8900600
>
Seat

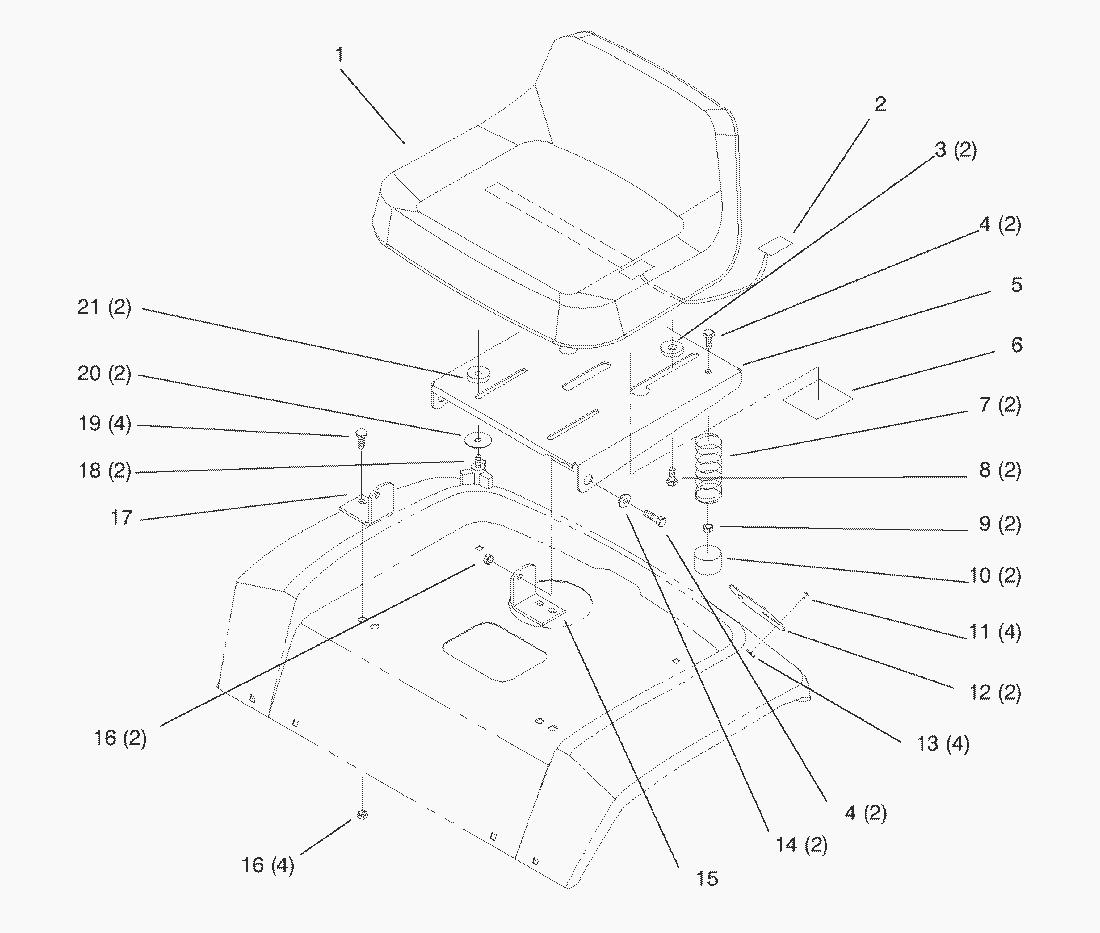

Lista de repuestos para Toro Roth / TORO Seat
pos.
descripción
Número de pieza
1
Seat (Model No. 71200 Only)
88-3950
2
Switch-Seat
38-1420
3
Spacer-Nylon
92-6750
4
Hex Hd. Capscrew
322-5
5
Support-Seat
92-6972-03
7
Spring-Compression
92-7054
8
Bolt-Shoulder
92-6986
9
Nut-Flange Lock
3296-58
10
Cap-Protector
701178
11
Rivet-Pop
3290-282
12
Reflecter
106557
13
Washer
3256-49
14
Bushing
105503
15
Bracket-Pivot LH
79-0970-03
16
MUTTER
3296-29
17
Bracket-Pivot RH
79-0950-03
18
Knob-Studded
700806
19
Carriage Bolt
3230-2
20
Washer-Flat
94-2869
21
Spacer-Nylon
109989
