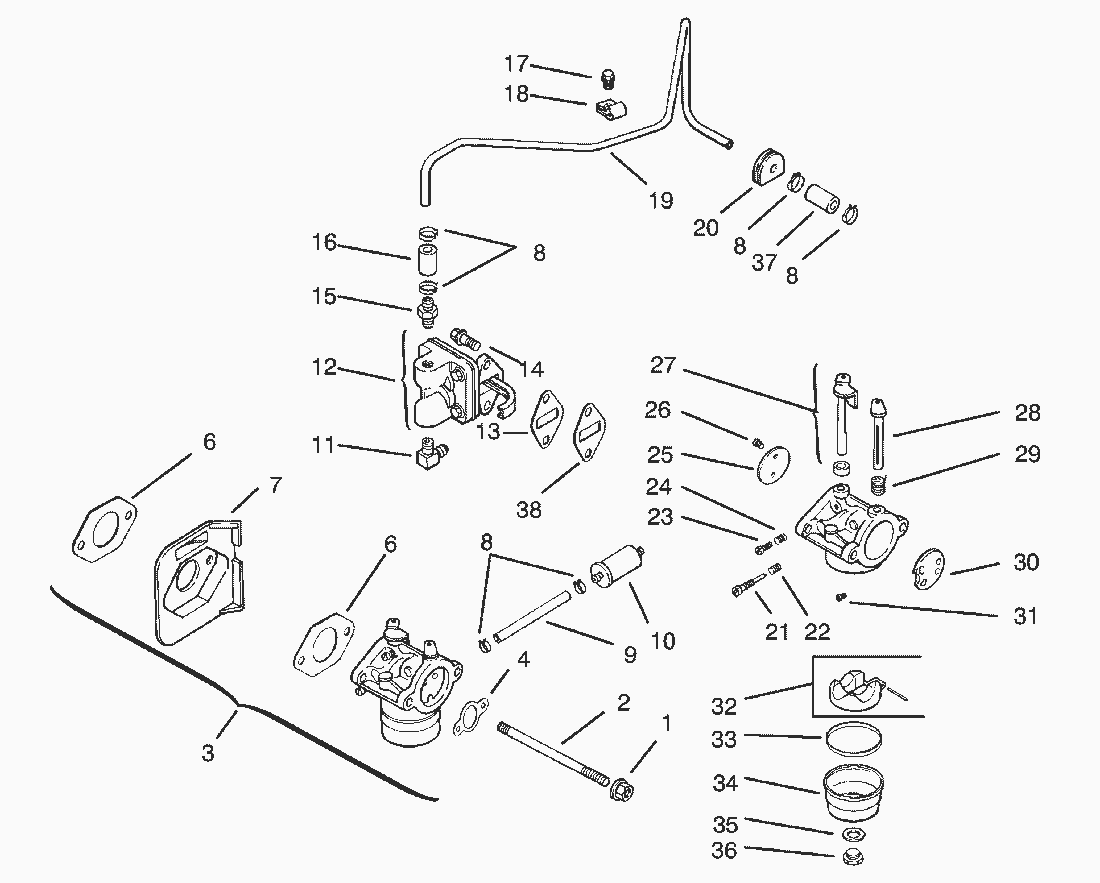

| pos. | descripción | Número de pieza | |
| 1 | Nut M6 x 1.0 | M-0641060 |
| 2 | Stud M6x1.0x110 (Only On: 72042 72063, 72062, 72043) | M-0629122 |
| 3 | Kit-Carburator w/Gasket Incl 4-6 | 12 853 57 |
| 4 | Gasket-Air Cleaner (Only On: 72042, 72063, 72062, 72043) | 12 041 02 |
| 5 | Carurator ASM Incl 21-36 | 12 053 57 |
| 6 | Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043) | 12 041 01 |
| 7 | Deflector-Heat | 12 265 04 |
| 8 | Clamp-Hose | X-426-9 |
| 9 | Line-Fuel | 12 353 10 |
| 10 | Filter-Fuel (Only On: 72103,72083) | 25 050 02 |
| 11 | Connector-90 DEG (Only On: 72042, 72063, 72062, 72043) | 25 155 02 |
| 12 | Kit-Pump INC 13-14 (Only On: 72042, 72063, 72062, 72043) | 12 559 01 |
| 13 | Gasket-Fuel Pump (Only On: 72042, 72063, 72062, 72043) | 25 041 09 |
| 14 | Screw-HH M6 x 1.0 x 20 | M-0645020 |
| 15 | Connector-Hose | X-380-1 |
| 16 | Line-Fuel 1.25 Inch (Only On: 72042, 72063, 72062, 72043) | 12 353 01 |
| 17 | Screw M5x0.8x10 (Only On: 72042, 72063, 72062, 72043) | M-0545010 |
| 18 | Clamp-Fuel Line (Only On: 72042, 72063, 72062, 72043) | 12 154 01 |
| 19 | Line-Fuel | 12 123 19 |
| 20 | Grommet (Only On: 72042, 72063, 72062, 72043) | 12 313 01 |
| 21 | Needle-Idle Fuel Adjust | 12 368 05 |
| 22 | Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043) | 12 089 09 |
| 23 | Screw-Idle Speed Adjust (Only On: 72042, 72063, 72062, 72043) | 12 086 04 |
| 24 | Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043) | 12 089 09 |
| 25 | Plate-Throttle (Only On: 72042, 72063, 72062, 72043) | 12 146 03 |
| 26 | Screw-Throttle Plate (Only On: 72042, 72063, 72062, 72043) | 25 086 27 |
| 27 | Shaft-W/Lever & Seal (Only On: 72042, 72063, 72062, 72043) | 12 144 09 |
| 28 | Shaft-Choke (Only On: 72042. 72063, 72062, 72043) | 12 144 08 |
| 29 | Spring-Choke Return (Only On: 72042,72063, 72062, 72043) | 12 089 10 |
| 30 | Plate-Choke (Only On: 72042, 72063, 72062, 72043) | 12 146 02 |
| 31 | Jet-Main | 12 337 03 |
| 32 | Kit-Float (Only On: 72042, 72063, 72062,72043) | 12 757 02 |
| 33 | Gasket-Bowl (Only On: 72042, 72063, 72062, 72043) | 12 041 05 |
| 34 | Bowl-Fuel (Only On: 72042, 72063, 72062, 72043) | 12 104 01 |
| 35 | Gasket-Bowl Screw (Only On: 72042, 72063, 72062, 72043) | 12 041 06 |
| 36 | Screw-Fuel Bowl (Only On: 72042, 72063,72062, 72043) | 12 086 05 |
| 37 | Line-Fuel 3 (Only On: 72042, 72063, 72062, 72043) | 25 353 02 |
| 38 | Spacer-Fuel Pump | 12 112 05 |
| Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043) | 12 041 01 |
| Kit-Carburetor Repair | 12 757 03 |
