volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
465/20779
>
200000001
>
Rear Bagger Assy.

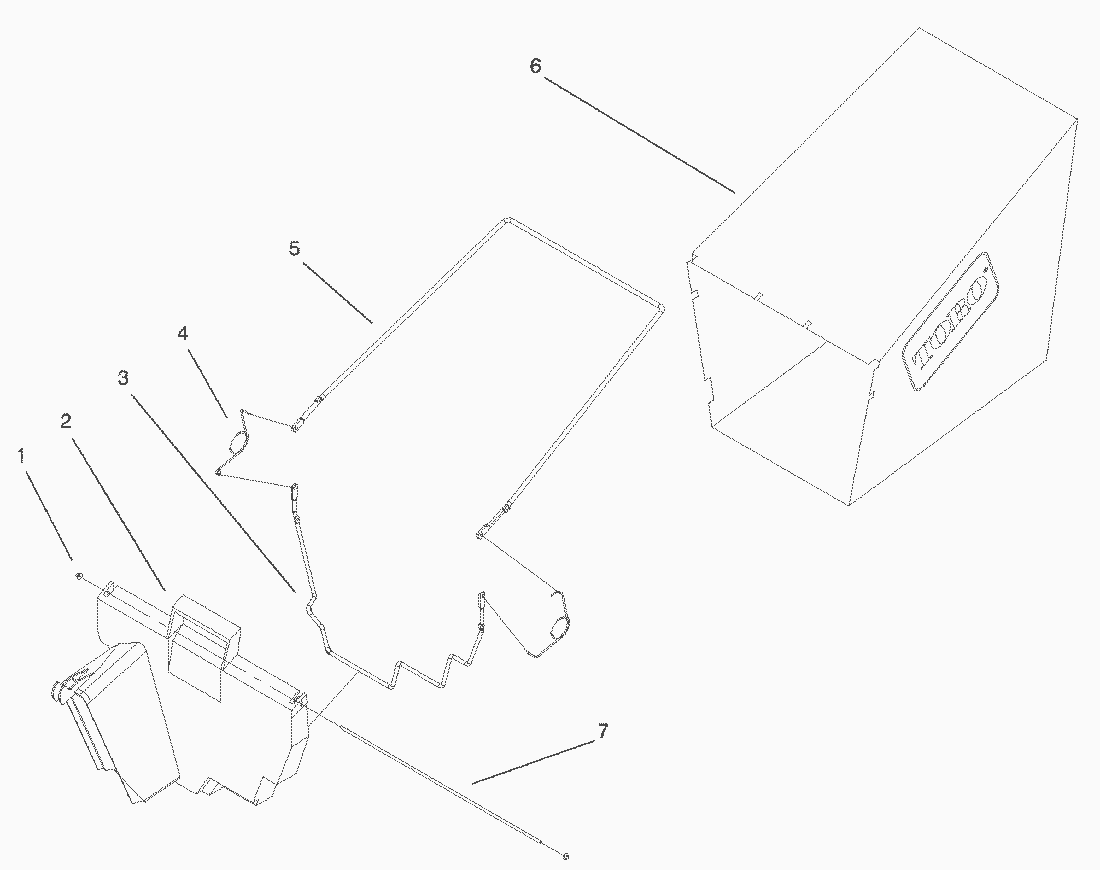

Lista de repuestos para Toro Roth / TORO Rear Bagger Assy.
pos.
descripción
Número de pieza
1
Push Nut-Washer Cap
3290-422
2
Door-Grass Bag
37-1393
3
Frame-Bag
42-4020
4
Spring
36-6910
5
Frame-Bag Upper
42-4030
6
Bag-Grass
44-0522
7
Hinge-Bag Door
33-4820
ASM-Bag
11-0189
