Lista de repuestos para Toro Roth / TORO Engine B&S Model 12H802-1767-E1

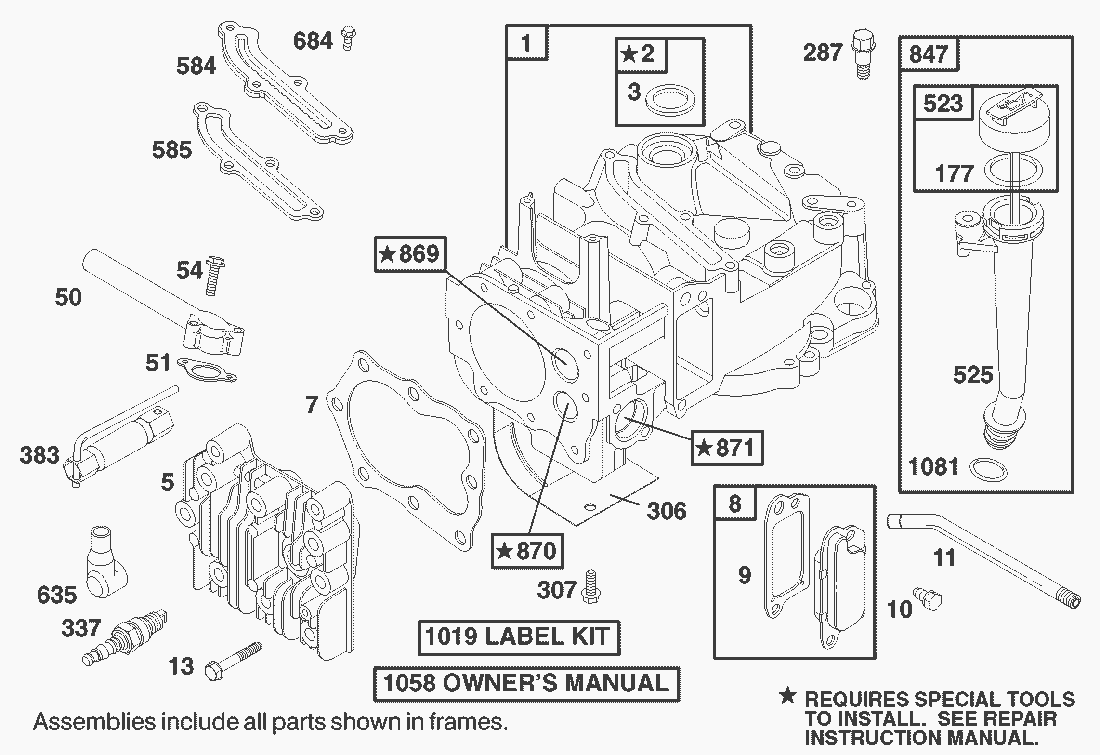

pos.	descripción	Número de pieza
1	Cylinder Assembly	493260
2	Bushing	399269
3	Seal-Oil	299819
5	Cylinder Head	691160
7	Gasket-Cylinder Head	272916
8	Breather-Valve Chamber	495786
9	Gasket-Breather	272481
10	Screw-Hex. Head	94650
11	Tube-Breather	231685
13	Screw-Cylinder Hd.	94547
50	Tube-Fuel Intake	497465
51	Gasket-Intake Elbow	272199
54	Screw-Intake Elbow Mtg.	94526
177	Seal-Filler Tube	280393
287	Screw-Hex Head	94511
306	Shield-Cylinder	690450
307	Cylinder Shield	690345
337	Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)	802592
383	Wrench-Spark Plug	89838
523	Cap With Dipstick-Oil Filler	495264
525	Tube-Oil Filler	495265
584	Breather Passage Cover	692342
585	Gasket-Baffle Plate	272238
635	Elbow-Spark Plug	66538
684	Screw-Hex Head	94515
847	Oil Fill Tube and Dipstick Assy.	495263
869	Seat-Valve (Intake)	691155
870	Seat-Valve (Exhaust)	690380
871	Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual	262001
1019	Label Kit	494256
1058	Owner s Manual	273693
1081	Seal-O-Ring	280966

pos.	descripción	Número de pieza
4	Sump-Engine	493279
12	Gasket-Crankcase	272198
15	Plug-Oil Drain	94880
16	Crankshaft	694079
20	Seal-Oil	399781
22	Screw-Sump Mtg. Sem	94220
	Screw Hex. Head (One (1) Used in Hole Nearest Breather)	94612
24	Key-Flywheel	222698
25	Piston Assy. (Standard)	499429
26	Ring Set (Standard)	499425
27	Lock-Piston Pin	263190
28	Pin-Piston (Standard)	499423
29	Rod Assembly- Connecting	499424
32	Screw-Connecting Rod	94699
33	Valve-Exhaust	262651
34	Valve-Intake	262652
35	Spring-Valve	262224
40	Retainer, Valve Spring	93312
43	Oil Slinger Gear and Brkt.	493737
45	Tappet-Valve	262204
46	Gear-Cam	498275
146	Timing Gear Key.	94388
741	Gear-Timing	262598

pos.	descripción	Número de pieza
95	Screw-Throttle Valve Mounting Sem	94098
97	Shaft and Lever-Throttle	493267
104	Float Hinge Pin	691242
117	Jet-Main (Std.) Note: 497315 Jet-Main (High Altitude)	494870
	Screw-Bowl Mtg. (Std.) Note: 496495 Screw Bowl Mtg.(High Altitude)	497315
125	Carburetor	498170
127
130	Throttle Valve	691203
133	Float Assy.-Carburetor	398187
134	Valve-Inlet (Includes Seat)	398188
137	Gasket-Float Bowl	693981
163	Gasket-Air Cleaner	272653
276	Sealing-Gasket	271716
365	Screw-Carburetor Mtg.	94525
617	Seal-Fuel Intake Tube	270344
708	Dust Seal	691321
975	Bowl Assembly-Carburetor	493640

pos.	descripción	Número de pieza
23	Flywheel	693821
81	Lock-Muffler Screw	223664
159	Strap-Bracket	224815
300	Muffler-Exhaust	497838
304	Housing-Blower	493293
305	Screw-Sem	94744
332	Nut-Flywheel	92284
363	Flywheel Puller (Optional Accessory)	19069
425	Screw-Slotted Hex.	94872
443	Screw-Hex.	94873
445	Filter-Air	491588
455	Flywheel Cup	691219
529	Grommet-Breather	281299
613	Screw-Muffler Mtg.	94231
676	Deflector-Muffler	493871
677	Screw-Hex. Head	94896
883	Gasket-Exhaust Cap	272253
966	Base-Air Cleaner	496116
968	Cover-Air Cleaner	281340
970	Screw-Hex. Head	94749
976	Primer-Carburetor	496115
1036	Label Kit-Emission	499341

pos.	descripción	Número de pieza
55	Housing-Rewind Starter	497440
56	Pulley-Rewind Starter	498144
58		280399
60	Starter Rope Grip	281434
65	Screw-Housing Mtg.	94686
187	Line-Fuel	492792
190	Screw-Hex Head	94511
456	Retainer-Rewind Starter	281503
459	Pawl-Starter	281505
592	Nut-Hex.	92987
597	Pin-Starter	94943
601	Clamp-Hose	95162
608	Starter Assy.-Rewind	497680
670	Spacer-Fuel Tank	280512
689	Spring-Torsion	263073
972	Tank Assembly-Fuel	495224
975	Cap Assy-Fuel	397974
1059	Screw-Tank Mounting (Includes Washer)	398540
