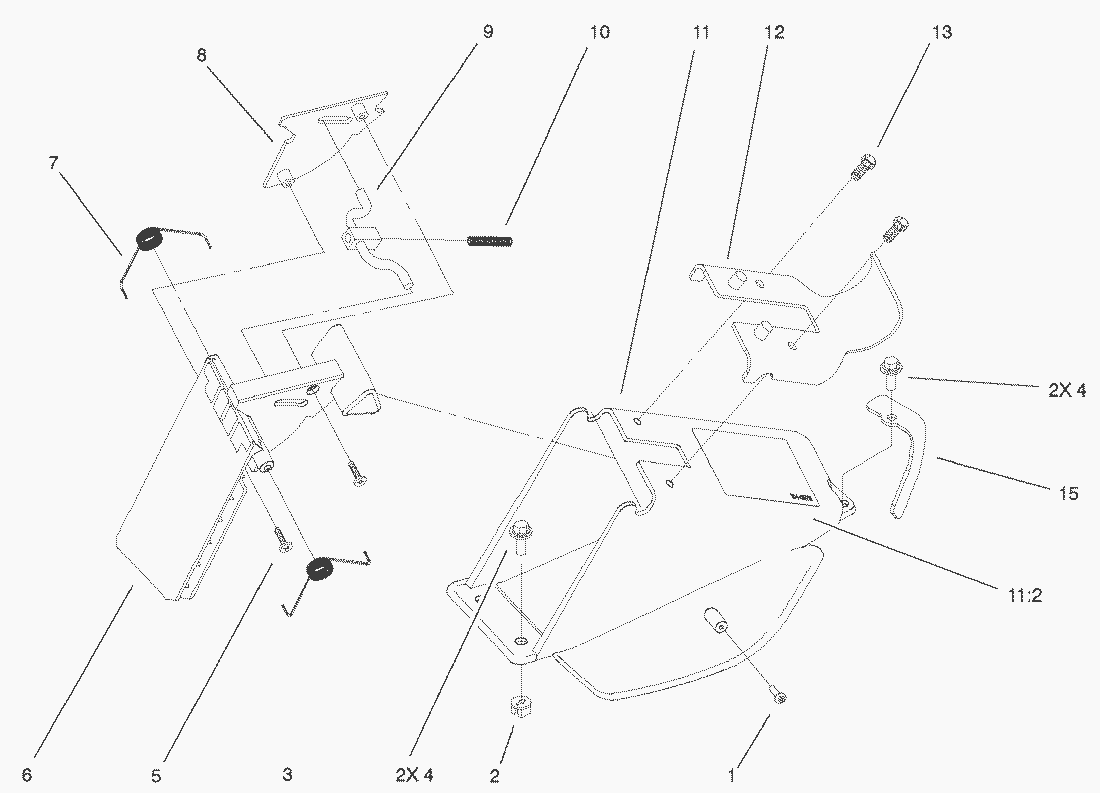

Lista de repuestos para Toro Roth / TORO Rear Bag Tunnel Assy.

pos.	descripción	Número de pieza
1	Screw-Pan Hd.	32144-111
2	Grommet	93-0242
4	Screw-Washer Hd.	46-6811
5	Screw-Plastite	32144-32
6	Door-Discharge	93-0264
7	Spring-Door, RH	88-1090
8	Door Cover	33-0441
9	Latch-Door	88-1800
10	Spring-Compression, Latch	33-0450
11	Discharge Chute ASM	104-0217
112	Decal-Danger	104-0578
12	Plate-Chute,Discharge	98-2696-03
13	Screw-Self Tapping	46-8090
15	Clamp-Door	100-1589-03
16	Decal-Danger	104-0578
