> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 421/20652 > 210000435 > Engine B&S Model 12H802-1776-B1

Lista de repuestos para Toro Roth / TORO Engine B&S Model 12H802-1776-B1


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3
Lista de repuestos 4
Lista de repuestos 5
Lista de repuestos 6
Lista de repuestos 7
Lista de repuestos 8
Lista de repuestos 9


pos.descripciónNúmero de pieza
499431
499427
499428
499432
499426
298908

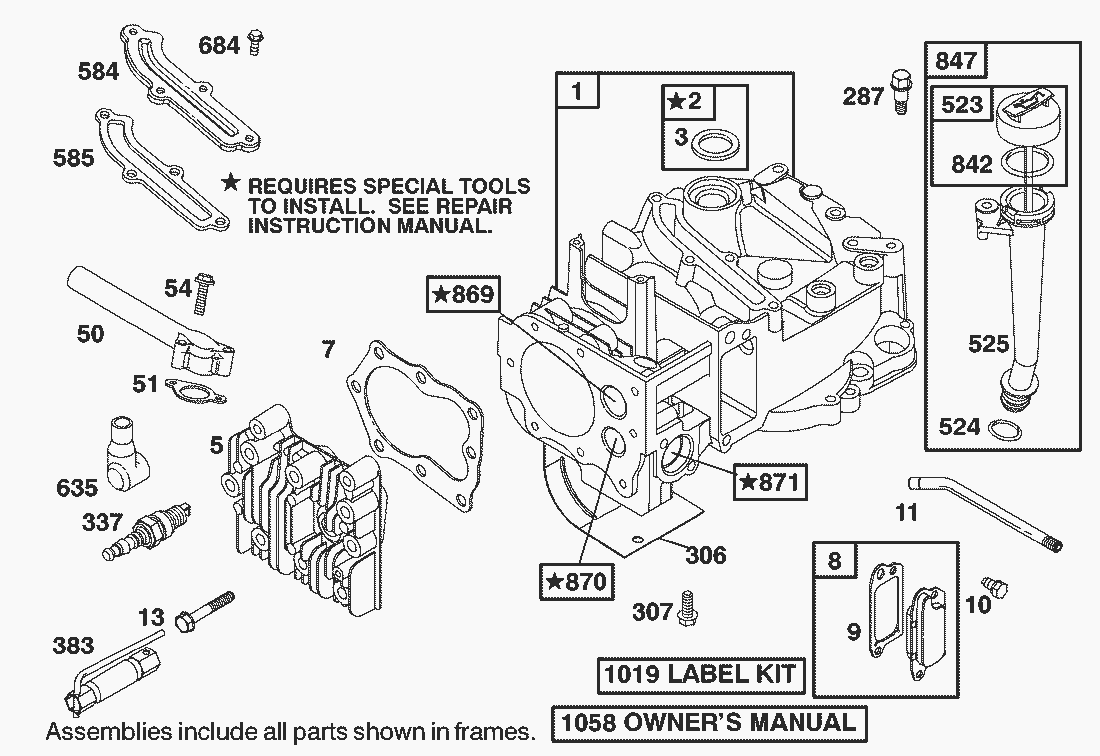

Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly493260
2Bushing399269
3Seal-Oil299819
5Cylinder Head691160
7Cylinder Head Gasket692249
8Breather Assembly695250
9Gasket-Breather272481
10Screw (Breather Assembly)691125
11Breather Tube691781
13Screw (Cylinder Head)690912
50Tube-Fuel Intake497465
51Gasket-Intake Elbow272199
54Screw (Intake Manifold)691650
287Screw (Dipstick Tube)690940
306Shield-Cylinder690450
307Cylinder Shield690345
337Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)802592
383Wrench-Spark Plug89838
523Cap With Dipstick-Oil Filler495264
524Dipstick Tube Seal692296
525Tube-Oil Filler495265
584Breather Passage Cover692342
585Breather Passage Gasket691879
635Elbow-Spark Plug66538
684Cylinder Shield690345
842O Ring Seal (Dipstick Tube)691031
847Dipstick/Tube Assembly692017
869Seat-Valve (Intake)691155
870Seat-Valve (Exhaust)690380
871Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual262001
Guide-Exhaust Valve63709
1019Label Kit494256
1058Owner s Manual274783

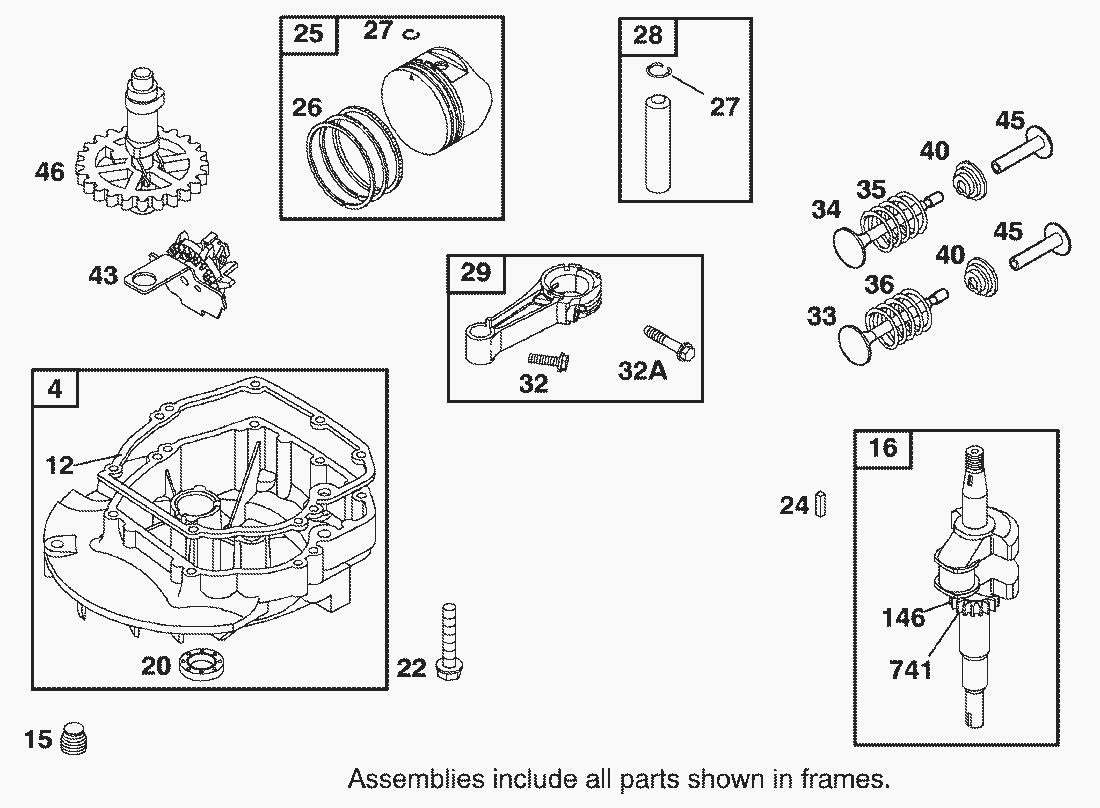

Lista de repuestos


pos.descripciónNúmero de pieza
4Sump-Engine493279
12Crankcase Gasket692232
15Oil Drain Plug691680
16Crankshaft696009
20Seal-Oil399781
22Screw(Engine Sump)691092
24Key-Flywheel222698
25Piston Assy. (Standard)499429
499430
26Ring Set (Standard)499425
27Piston Pin Lock691866
28Pin-Piston (Standard)499423
29Rod Assembly- Connecting499424
32Screw (Connecting Rod)691664
32Screw (Connecting Rod)695759
33Valve-Exhaust262651
34Valve-Intake262652
35Valve Spring(Intake)691270
36Valve Spring(Intake)691270
40Valve Retainer692194
43Governor/Oil Slinger691997
45Valve Tappet690548
46Camshaft691449
146Timing Key690979
741Timing Gear691830
Lista de repuestos


pos.descripciónNúmero de pieza
95Screw (Throttle Valve)691636
97Shaft and Lever-Throttle493267
104Float Hinge Pin691242
117Jet-Main (Std.) Note: 497315 Jet-Main (High Altitude)494870
Screw-Bowl Mtg. (Std.) Note: 496495 Screw Bowl Mtg.(High Altitude)497315
125Carburetor498170
127Welch Plug694468
130Throttle Valve691203
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
137Gasket-Float Bowl693981
163Gasket-Air Cleaner272653
276Sealing-Gasket271716
365Screw (Carburetor)692524
617Seal-Fuel Intake Tube270344
633Dust Seal691321
975Bowl Assembly-Carburetor493640
Lista de repuestos


pos.descripciónNúmero de pieza
188Screw (Control Bracket)690877
202Mechanical GovernorLink691829
209Spring-Governor691292
222Control Bracket692467
227Governor ControlLever690783
333Armature-Magneto802574
334Screw (Magneto Armature)691061
404Washer(Governor Crank)690272
505Nut-Hex.-10-24231082
562Bolt, Governor Lever92613
615Governor Shaft Retainer690340
616Governor Crank691306
621Stop Switch692310
668Spacer-Carburetor Bracket493823
745Screw (Brake)691648
851Terminal-Ignition Cable493880
922Brake Spring691831
923Brake691994
Lista de repuestos


pos.descripciónNúmero de pieza
159Air Cleaner PrimerBracket691753
425Screw (Air Cleaner Cover)690670
443Screw (Air CleanerPrimer Base)692523
445Filter-Air491588
529Grommet691923
966Base-Air Cleaner496116
968Air Cleaner Cover692298
970Screw (Air Cleaner Primer Bracket)691669
976Carburetor Primer694395
Lista de repuestos


pos.descripciónNúmero de pieza
81Muffler Screw Lock691740
187Fuel Line(Cut to Required Length)691050
190Screw (Dipstick Tube)690940
300Muffler-Exhaust496106
601Clamp-Hose95162
613Screw (Muffler)691340
670Fuel Tank Spacer692294
676Deflector-Muffler493871
677Screw (Muffler Deflector)690661
957Cap Assy-Fuel397974
972Tank Assembly-Fuel495224
1059Screw/Washer Kit692311

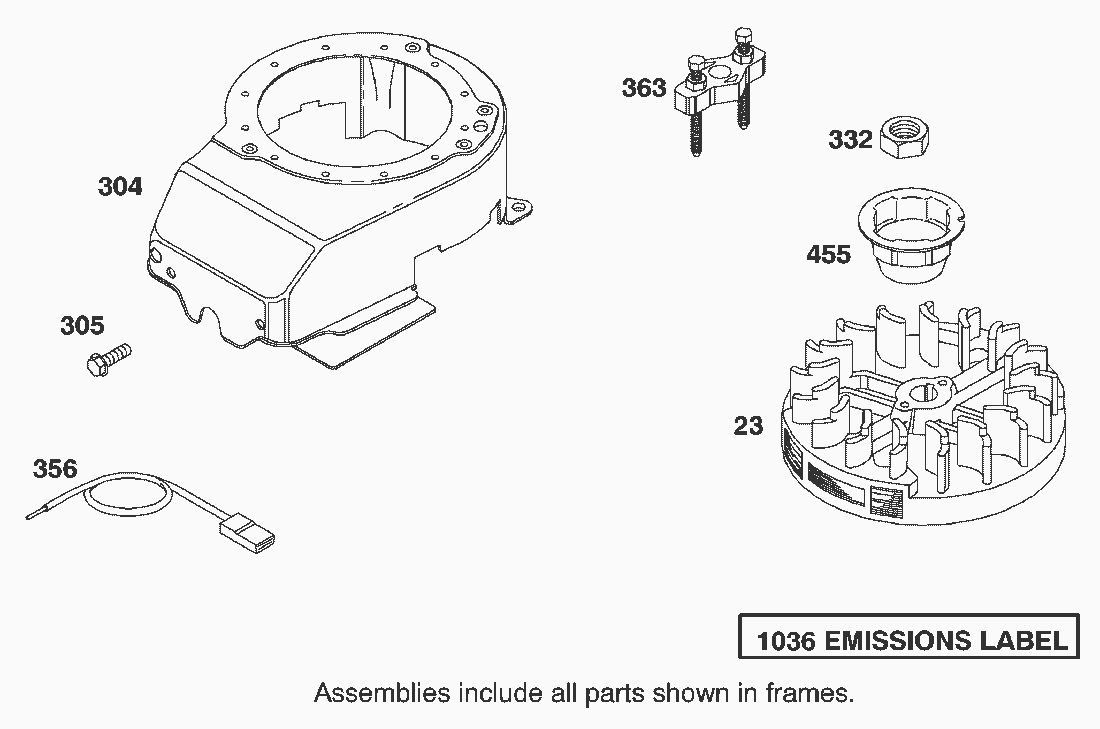

Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel692315
304Housing-Blower493293
305Screw(Flywheel Guard)691108
332Screw (Control Bracket)690877
356Stop Wire692390
363Flywheel Puller (Optional Accessory)19069
455Flywheel Cup691219
1036Emissions Label695111
Lista de repuestos


pos.descripciónNúmero de pieza
55Rewind Starter Housing691421
58280399
60Starter Rope Grip281434
65Screw (RewindStarter)690837
456Pawl Friction Plate692299
459Pawl-Starter281505
592Nut (Rewind Starter)690800
597Screw (Pawl Friction Plate)691696
608Starter Assy.-Rewind497680
689Friction Spring691855
1210Pulley-Rewind Starter498144
1211Pulley-Rewind Starter498144
Lista de repuestos


pos.descripciónNúmero de pieza
121Carburetor Kit498260
358Gasket Set497316
977Gasket Set-Carburetor498261
1095Gasket Set-Valve Overhaul498528
