> Roth / TORO > Ride-On Mowers > Traktor > 13-38 XL > 391/71205 > 59000001 > Peerlesss Transaxle Model No. 915-020

Lista de repuestos para Toro Roth / TORO Peerlesss Transaxle Model No. 915-020




pos.descripciónNúmero de pieza
792139

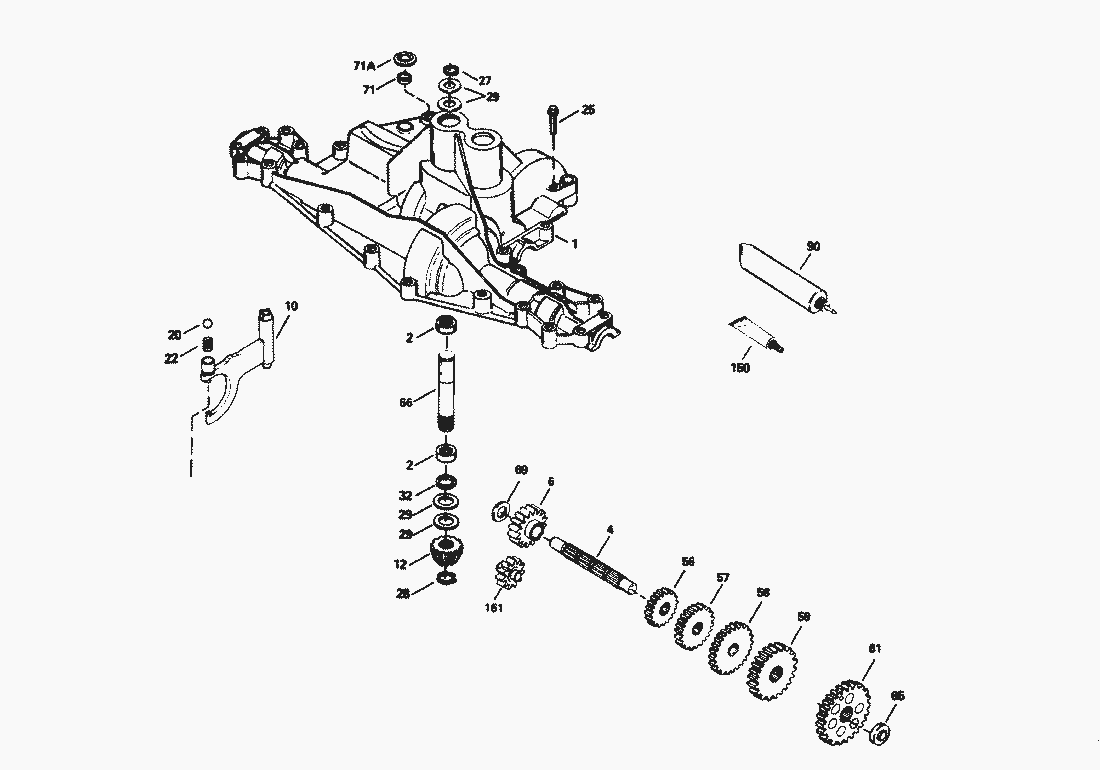

Lista de repuestos


pos.descripciónNúmero de pieza
1Transaxle Cover772128
4Countershaft776300
6Spur Gear (16 Teeth)778281
10Shift Rod & Fork784370
12Bevel Pinion (14 Teeth)778262
22Spring792142
25Screw, Flanged Hex. Hd. Thrd. Form 1/4-20 x 1-1/4792073
27Ring, Retaining792035
28Ring, Retaining788040
29Washer, Thrust780072
32O Ring792001
56Gear-Spur (15 teeth)778151
57Spur Gear (23 Teeth)778249
58Spur Gear (21 Teeth)778314
59Gear-Spur (30 teeth)778129A
61Spur Gear (34 Teeth)778265
65Washer780162
66Input Shaft (3.522 lg.)776299
69Thrust Washer780161
71Seal, Square Cut788069
71Pushnut792145
90Grease (32 oz. bottle)788067B
150Gasket Eliminator (Loctite510334
161Reverse Idler Assembly776302
