> Roth / TORO > Ride-On Mowers > Traktor > 13-38 XL > 391/71205 > 59000001 > HOC Assy.

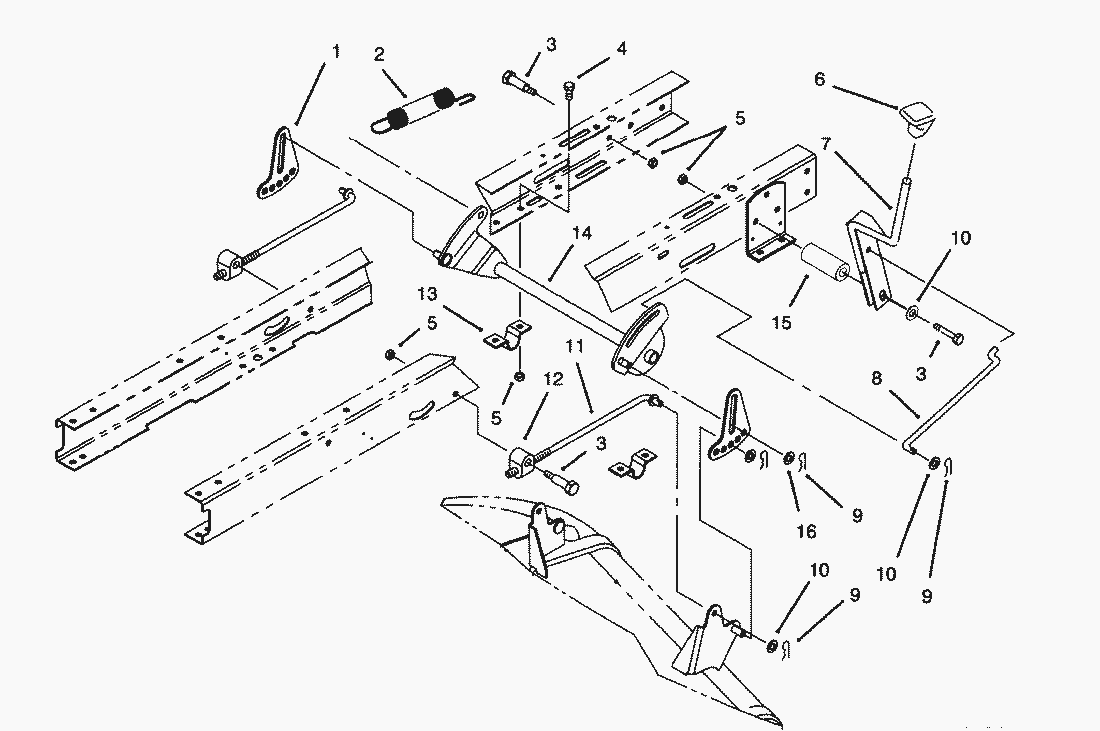

Lista de repuestos para Toro Roth / TORO HOC Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Link-Adjusting H.O.C.88-5570
2Spring-Extention88-6460
3Bolt-Shoulder7-0030
4Capscrew322-3
5MUTTER3296-29
6Knob-Engage Lever62-1292
7Lever-H.O.C.93-3822
8Link-H.O.C.88-5900
9Hair Pin Cotter3290-307
10Flat Washer3256-24
11Rod-Hanger Rear88-5450
12Trunnion-H.O.C. Rear88-4230
13Clamp-H.O.C. Pivot88-4730
14Pivot-H.O.C.88-5110
15Spacer65-7210
16Washer-Hardened80-6990
