Hydro Transaxle Controls Assy.

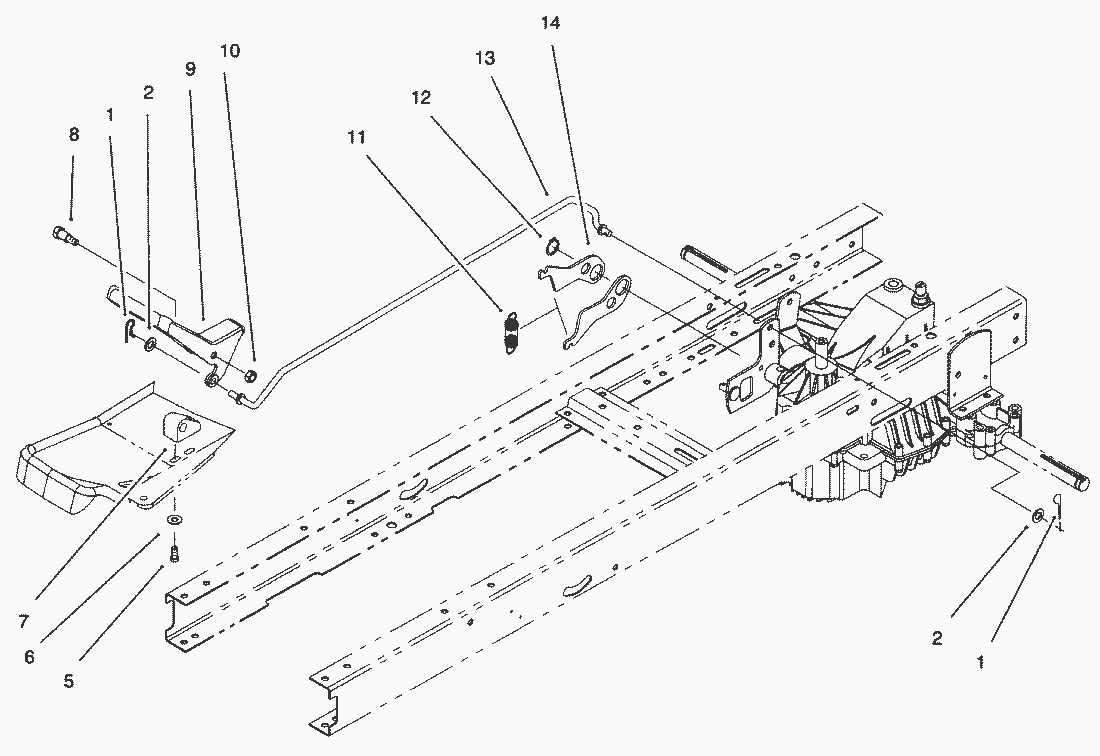

Lista de repuestos para Toro Roth / TORO Hydro Transaxle Controls Assy.
pos.
descripción
Número de pieza
1
Hair Pin Cotter
3290-307
2
Washer
3256-23
5
Screw-Self Tapping
46-8090
6
Washer
3256-22
7
Block-Pivot
88-4690
8
Bolt-Shoulder
23-0310
9
Pedal-Speed Control
93-3812
10
Nut-Lock
3296-59
11
Spring-Extension
92-7305
12
Ring-External Retaining
32151-83
13
Rod-Speed Control
92-9793
14
Lever-Neutral Return
88-5610
