> Roth / TORO > Ride-On Mowers > Traktor > 14-38 HXL > 392/71217 > 6900001 >

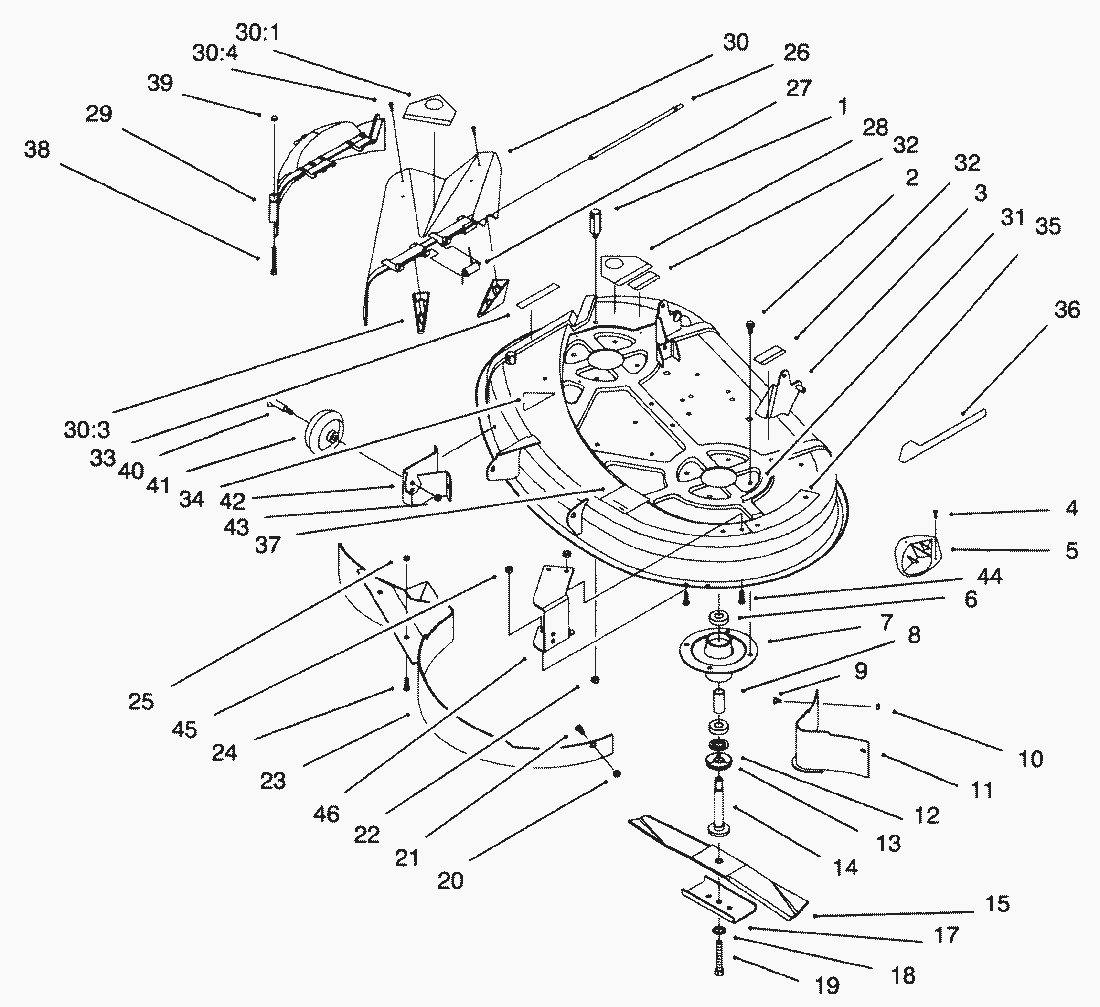

Lista de repuestos para Toro Roth / TORO




Lista de repuestos


pos.descripciónNúmero de pieza
30Deflector Assembly (Incl. Ref.93-7695
301Decal-Danger93-1122
301Decal-Danger (Model No. 71200 Only)93-7010
303Kicker-Deflector (Model No. 71205 Only)93-7679
304Screw-Pan Hd.93-0231
31Decal-Shield Danger68-3660
31Decal-Shield Danger93-6677
32Decal Warning55-4300
32Decal-Warning (Model No. 71200 Only)93-6674
33Decal-Deflector Danger68-3650
33Decal-Deflector Danger (Model No. 71200 Only)93-7009
35Decal-Danger79-3140
36Decal-Recycler92-9520
37Decal-Belt Guide93-6679
38Capscrew321-15
39Capnut32111-7
40Bolt-Shoulder56-6591
41Wheel-Deck701756
42Bracket-Deck Wheel RH (Only On: 71217)88-5740-03
43Locknut3296-39
44Capscrew322-3
45MUTTER3296-29
46Bracket-Deck Wheel LH (Only On: 71217)93-3896-03
