> Roth / TORO > Ride-On Mowers > Traktor > 17-44 HXLE > 393/71280 > 200000001 > Hydro Transaxle Controls Assy.

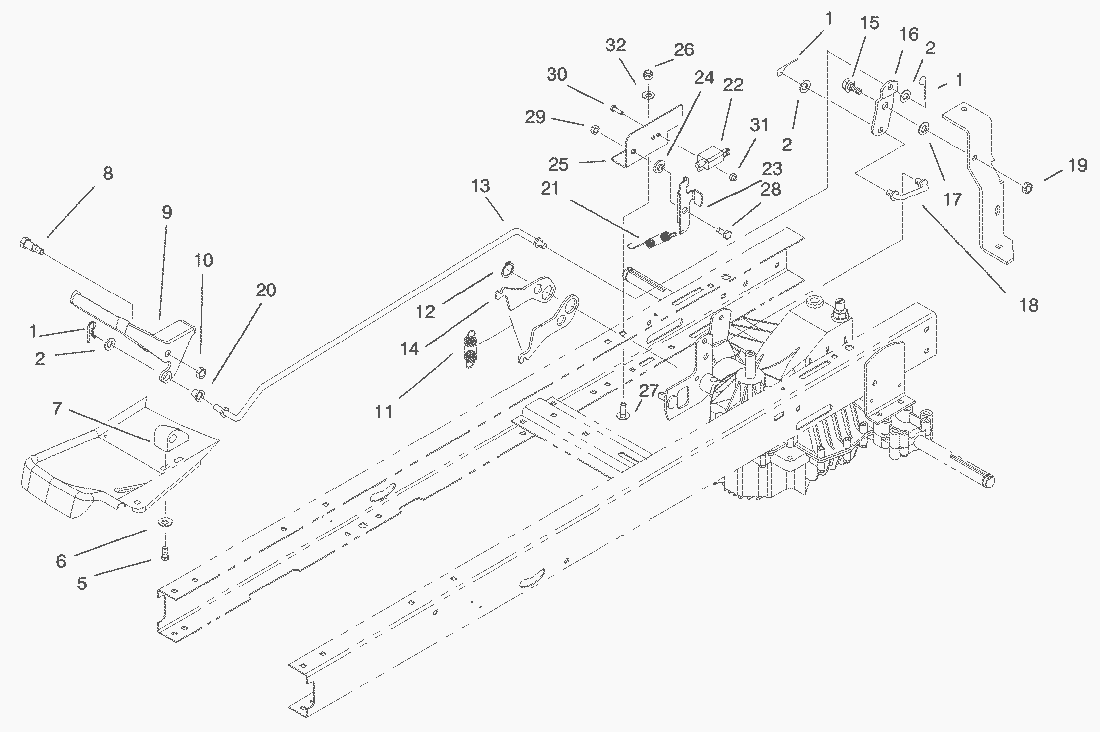

Lista de repuestos para Toro Roth / TORO Hydro Transaxle Controls Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Hair Pin Cotter3290-307
2Bushing-Idler3256-38
5Screw-Self Tapping46-8090
6Washer3256-22
7Block-Pivot88-4690
8Bolt-Shoulder23-0310
9Pedal-Speed Control99-6120-05
10Nut-Lock3296-59
11Spring-Extension92-7305
12Ring-External Retaining32151-83
13Rod-Speed Control,174499-6804
14Lever-Neutral Return88-5610
15Bolt-Shoulder37-8771
16Bellcrank93-3875
17Washer-Belleville3290-456
18Link-Speed/Direct Control93-3874
19Nut-Lock3296-47
20Bushing99-6121
21Spring-Extension99-6805
22Switch-Single Pole95-1653
23Bracket-Pivot99-6807
24Washer-Stepped99-6808
25Bracket-Adjustment99-6806
26MUTTER3296-29
27Carriage Bolt3230-18
28Screw-Hex Hd99-6810
29MUTTER3296-42
30Screw-HH3290-392
31Locknut3296-1
32Washer3256-23
