volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
17-44 HXLE
>
393/71280
>
200000001
>
Hydro Transaxle Assy.

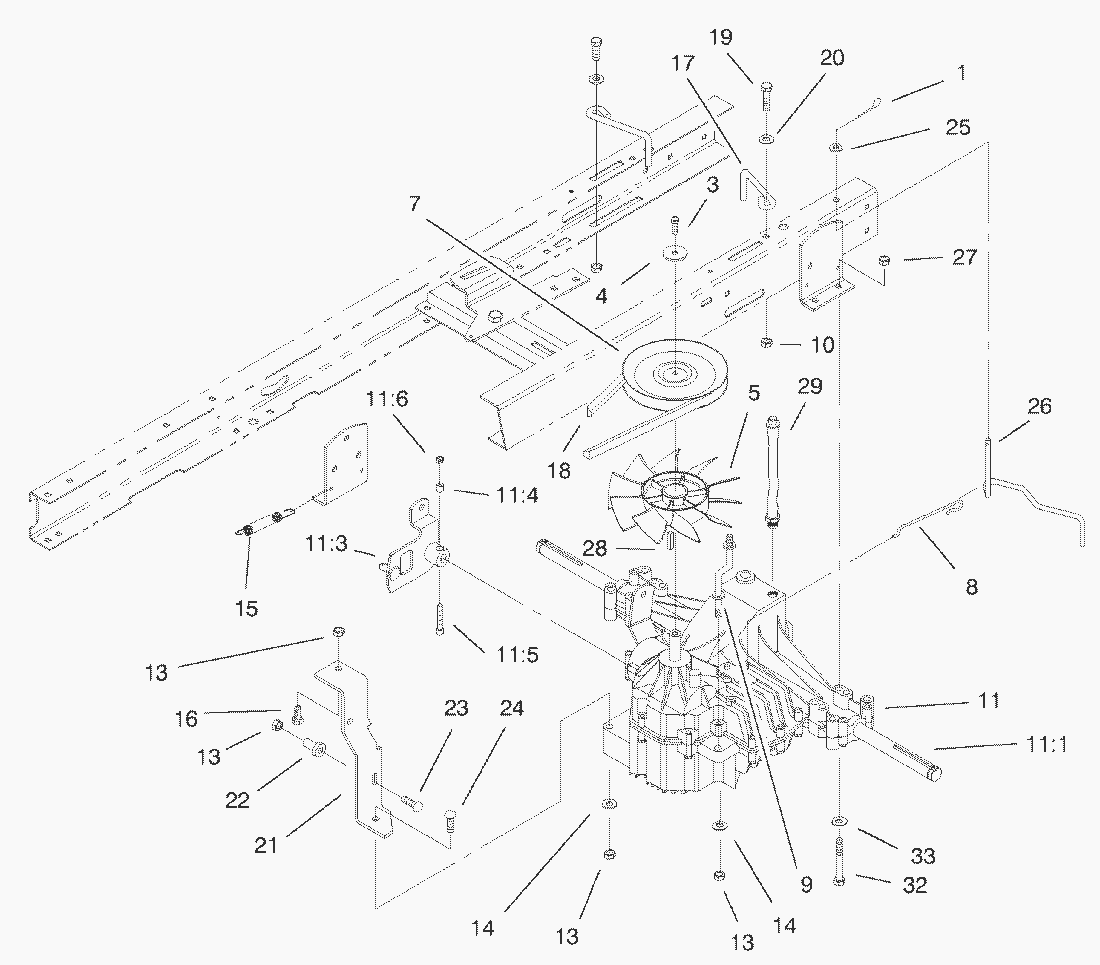

Lista de repuestos para Toro Roth / TORO Hydro Transaxle Assy.
pos.
descripción
Número de pieza
1
Hair Pin Cotter
3290-307
3
Screw-HH
33113-016
4
Washer-Fender
3256-58
5
Fan-Hydro
93-3867
7
Pulley-Transmission
93-3862
8
Wire-Bypass
92-8856
9
Strap-Torque
93-3872
10
MUTTER
3296-29
11
111
Transaxle ASM-Hydro
95-2727
113
Lever Wa-Speed Control
99-5845
114
Spacer-Lock
86-4270
115
Screw-Hex Hd. Cap
3274-59
116
Locknut
3296-12
13
MUTTER
3296-29
14
Washer
3256-23
15
Spring-Extension
26-6700
16
Capscrew
322-3
17
Guide-Trans. Belt
93-3868
18
V-Belt-Hydro
93-3883
19
Hex Hd. Capscrew
322-5
20
Washer
5-4460
21
Bracket-Speed Control
93-3863-03
22
Bushing-Flanged
65-5080
23
Bolt-Carriage
3230-5
24
Bolt-Carriage
3230-7
25
Washer
3256-22
26
Lever-Bypass
92-8857
27
MUTTER
3296-29
28
Key-Square
80-6090
29
Hose-Breather
94-1945
32
Screw-Cap Hex. Hd.
322-12
33
Washer
3256-23
Toro
Roth / TORO
Ride-On Mowers
Traktor
264-6
246 HE
244-5
212-H
212-5
17-44 HXLE
393/71280
200000001
Engine B&S Model 312777-0128-E1
Electrical Schematic
Hydro Transaxle Assy. (Cont.)
Electrical Components
HOC Assy.
Hydro Transaxle Controls Assy.
Hydro Transaxle Assy.
Wheel & Tire Assy.
Traction & Brake Components
Engine Systems Components
Steering Assy.
Steering Components (Cont.)
Steering Components
Rear Body & Seat Assy.
Hood & Tower Assy.
Frame & Body Assy.
